Boreway Quality Diamond Tips Blade Segment for Granite Cutting Russian Market

Add / Delete to Basket

Product parameters

Name:	Boreway Quality Diamond Tips Blade Segment for Granite Cutting Russian Market
Model Number:	BW-DSGB-02-01
Place of Origin:	Fujian, China
Brand Name:	Boreway
Disc diameter:	900mm
Seg.No.:	64pcs
Produce art:	Sintering

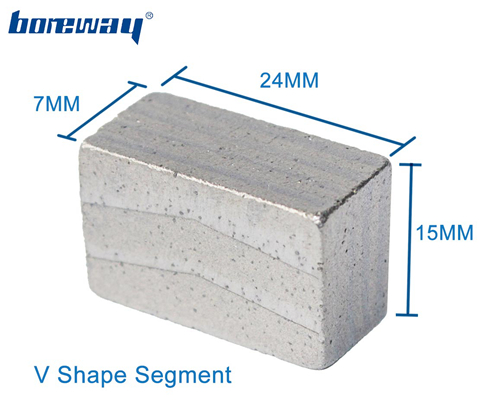

Seg. size:	24x7x15mm
Application:	Cutting of granite, sandstone, various hard stone with quartz.

Product Description

Boreway Quality Diamond Tips Blade Segment for Granite Cutting Russian Market

Feature:

1. Quality diamond tips blade segment for granite is ast cutting,long life,Stable performance,High grade of diamonds

2. Different bonds are for different applications,precise segment size

3. Working safe, quiet,and precise,reducing cutting,working time

4. Quality diamond tips blade segment for granite great adaptability,No chipping

Specification:

The following are normal specifications quality diamond tips blade segment for granite:

Code.

Diameter

(mm)

Segment Dimension (L × W × H)

Segment No.

Length

Width (Taper Type)

Height

BW-DSGB-02-01

900

7.0/6.4

12/15/20

Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.

Product detail:

Quality diamond tips blade segment for granite consist of small-size diamonds and metal bond materials. The metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, graphite, etc. The diamonds are mixed with the bond materials, and the mixture is loaded into molds. After hot pressing or cold pressing, sintering, and arc grinding, diamond segments are formed. The metal bond has two basic functions:

· One is bonding the diamonds to the body of saw blade;

· the other is wearing along with the diamonds' wearing to let new sharp diamonds be exposed properly.

The features of the diamond segments on the saw blade should match the nature of the material to be cut.

1. If the material is hard, the bond of the diamond segments should be softer. Because diamonds will become blunt when cutting hard material. The softer bond can be worn down with the blunt diamonds faster, and then make new diamonds beneath be more easily exposed to participate in cutting.

2.If the material is relatively softer, the bond should be harder. The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Advantage:

Quality diamond tips blade segment for granite

1. High cutting efficiency.

2. it makes fast diamond exposed.

3. Good debris removal and better cooling.

4. Reduce the interface friction of diamond saw blade and stone.

Aplication:

Quality diamond tips blade segment for granite used for cutting granite (also other more segments for marble, sandstone, limestone, lava, concrete

<< Step Circular Diamond Saw Blade Segment For Block Of Granite

Quality diamond tips blade segment for granite:

For a diamond blade, diamond segments are just the "teeth" of the blade. The form of the segments is an important factor which influences the performance of the blade, for example, the blade's cutting efficiency and the ratio of the diamonds' non-normal failure.

Boreway makes different forms of diamond segment, sandwich, multi layers in different shapes, normal flat, T, π, U, V, K, M, Slant Slot and Incline design etc.

There are mainly two functions for different designs of segment:

one is increase the blade's capabilities of containing and discharging sawdust, and improve the cooling and lubricating conditions.

The other is to reduce the friction between the segments and the material being cut as well as the sawdust, improve the blade's cutting capability, and thus save energy and improve the blade's performance.
