900mm-3500mm Diamond Segments for Granite Cutting

Product parameters
Name: 900mm-3500mm Diamond Segments for Granite Cutting
Model Number: BW-DSBG-00
Type: Wet Use only
Segment Height: 10.0mm to 30mm
Diameter: From 900mm to 3500mm
Segment Length: 24mm,30mm

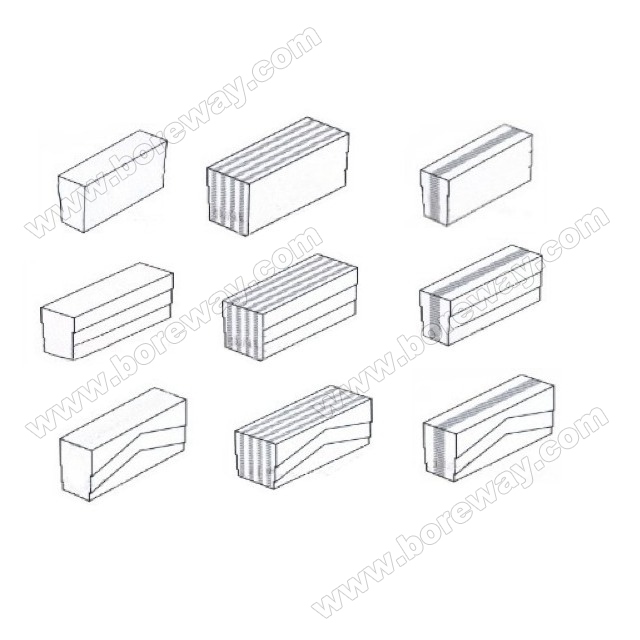

Segment Structure: Sandwich or Multi-Layer
Usage: Block Cutting of Granite, Sandstone, kinds of hard stone with quartz.
Machine: Bridge Cutting Machine,Manual Handling Cutting Machine or Table Cutting Machine
Welding Method: Silver Welded
Performance: Hightly stable
Advatage: Good sharpness and Long lifespan
Cutting result: Flat surface and even size

Product Description


900mm-3500mm Diamond Segments for Granite Cutting

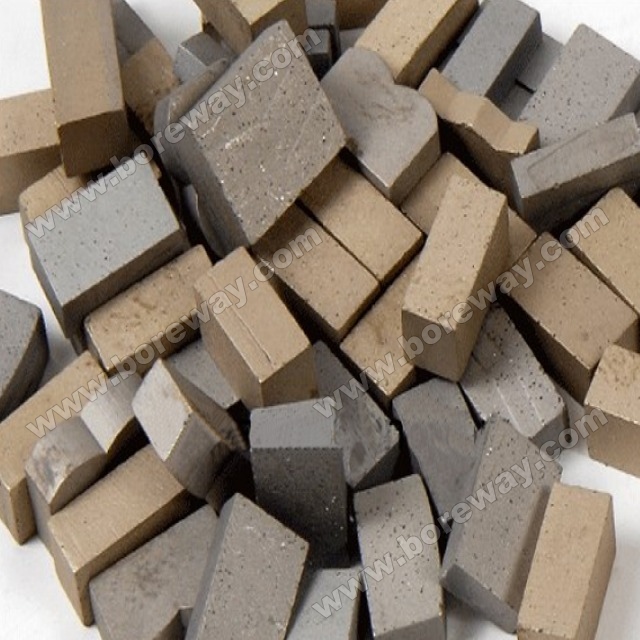

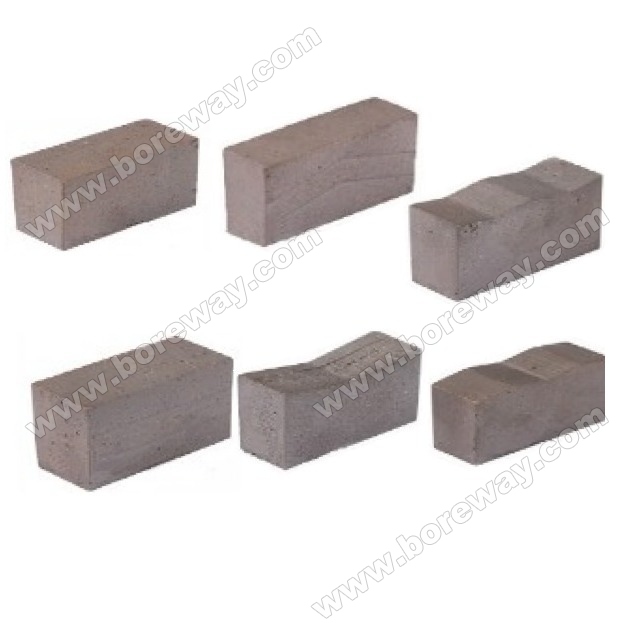

Diamond Segment of 900-3500mm circular saw blades for Block Cutting of Granite, Sandstone, kinds of hard stone with quartz.


Wet use only.



Welding method: Silver Welding.



The following are the normal Specifications we are selling:



Diameter
(mm)
Segment Dimension (L × W × H)
Segment No.
Structure
Length
Width (Taper Type)
Height
900
24
7.0/6.5
10/12/15/20
64
Sandwich
or
Multi-Layer
1000
24
7.0/6.5
10/12/15/20
70
1100
24
7.4/6.8
12/15/20
74
1200
24
7.5/7.0
12/15/20
80
1300
24
8.0/7.5
12/15/20
88
1350
24
8.4/7.7
12/15/20
88
1400
24
8.5/8.0
12/15/20
96
1600
24
9.0/8.7/8.4
12/15/20
104/108
1700
24
9.4/8.9/8.4
12/15/20
112
1800
24
9.5/9.0
12/15/20
120
2000
24
10.5/9.5
12/15/20
128
2200
24
11.5/10.5
12/15/20
132/136
2500
24/30
12/11.5/11
15/20/25/30
140
2700
24/30
12/11.5/11
15/20/25/30
140
3000
24/30
12.5/12/11.5
15/20/25/30
160
3500
24/30
13/12.5/12
15/20/25/30
180





The above specification & photos is only for Reference, other specification or design can be

 ordered by customers.





Kindly Noted:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
