Boreway Diamond Saw Blade Segments for Block of Sandstone Manufacture

Add / Delete to Basket

Product parameters

Name:	Boreway Diamond Saw Blade Segments for Block of Sandstone Manufacture
Model Number:	BW-DSGB-02-16
Disc diameter:	3500mm
Shape:	<< step
Seg.No.:	180pcs
Produce art:	Sintering
Welding way:	Silver welding
Seg. size:	24x13x20mm
Application:	Cutting of granite, sandstone, various hard stone with quartz.

Product Description

Boreway Diamond Saw Blade Segments for Block of Sandstone Manufacture

Descriptioin:

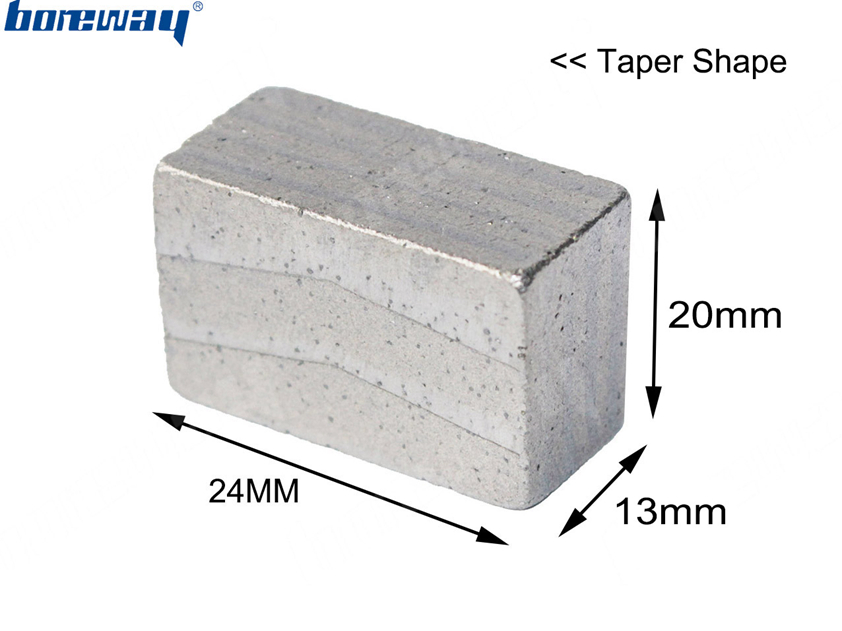

900mm-3500mm Diamond Segments for Granite Cutting- Multi-layers Structure, <<Taper Shape

Diamond saw blade segments for block multi-layers structure and "<<" taper shape of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

Wet use only.

Welding method: Silver welding by high frequency welding machine.

Specification:

The following are normal specifications diamond saw blade segments for block:

Code.	Diameter (mm)	Segment Dimension (L × W × H)			Segment No.
Code.	Diameter (mm)	Length	Width (Taper Type)	Height	Segment No.
BW-DSGB-02-01	900	24	7.0/6.4	12/15/20	64
BW-DSGB-02-02	1000	24	7.5/7.0/6.5	12/15/20	70
BW-DSGB-02-03	1100	24	7.5/7.0/6.5	12/15/20	74
BW-DSGB-02-04	1200	24	7.8/7.4/7.0	12/15/20	80
BW-DSGB-02-05	1300	24	8.4/7.9/7.4	12/15/20	88
BW-DSGB-02-06	1350	24	8.4/7.9/7.4	12/15/20	88
BW-DSGB-02-07	1400	24	8.4/7.9/7.4	12/15/20	96
BW-DSGB-02-08	1600	24	9.4/8.9/8.4	15/20	104/108
BW-DSGB-02-09	1700	24	9.4/8.9/8.4	15/20	112
BW-DSGB-02-10	1800	24	10/9.4/8.8	15/20	120
BW-DSGB-02-11	2000	24	10.6/10.0/9.6	15/20	128
BW-DSGB-02-12	2200	24	11.5/11/10.5	15/20	132/136
BW-DSGB-02-13	2500	24/30	12/11.5/11	15/20	140
BW-DSGB-02-13	2500	24/30	12.5/12/11.5/11	30	140
BW-DSGB-02-14	2700	24/30	12/11.5/11	15/20/25	140
BW-DSGB-02-14	2700	24/30	12.5/12/11.5/11	30	140
BW-DSGB-02-15	3000	24/30	12.5/12/11.5	20/25	160
BW-DSGB-02-15	3000	24/30	13/12.5/12/11.5	30	160
BW-DSGB-02-16	3500	24/30	13/12.5/12	20/25	180
BW-DSGB-02-16	3500	24/30	13.5/13/12.5/12	30	180

Specially designed tools are available for any standard application. We can
Tailor your tools to your specific needs.

Product detail:

Boreway Diamond Saw Blade Segments for Block of Sandstone Manufacture

Advantage:

Diamond saw blade segments for block, it is advantage as follows,

1. High cutting efficiency.

2. it makes fast diamond exposed.

3. Good debris removal and better cooling.

4. Reduce the interface friction of diamond saw blade and stone.

Feature:

1. Fast cutting,long life and Stable performance, High grade of diamonds

2. Different bonds are for different applications and precise segment size

3. Working safe, quiet, and precise, reducing cutting and working time

4. Great adaptability,No chipping

Specificat:

Diamond saw blade segments for block multi-layers structure and << taper shape of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

Example :

Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.
Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.
Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.

<< Step Circular Diamond Saw Blade Segment For Block Of Granite

Related product:

Diamond Segments of Gang Saw Blades for Marble Block Cutting & Squaring	900mm-2000mm Diamond Segments for Marble Block Cutting	900mm-3500mm Diamond Segments for Granite Cutting

About us:

Boreway v Step Circular Diamond Saw Blade Segment For Block Of Cutting Granite Sandstone

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
