Boreway 1600mm Diamond Wet Use Saw Blade Circular Segment for Cutting Stone Wholesaler or Factory

Add / Delete to Basket

Product parameters

Name:	Boreway 1600mm Diamond Wet Use Saw Blade Circular Segment for Cutting Stone Wholesaler or Factory
Model Number:	BW-DSGB-02-08

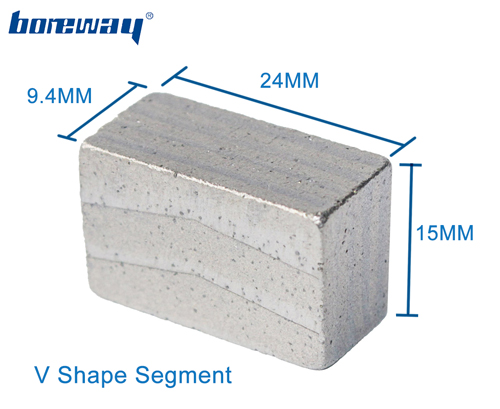

Shape:	V step
Segment leight:	24mm
Disc diameter:	1600mm
Segment Height:	15mm
Segment Width:	9.4mm
Segment No.:	104/108pcs
Welding way:	Silver welding

Product Description

Boreway 1600mm Diamond Wet Use Saw Blade Circular Segment for Cutting Stone Wholesaler or Factory

Feature:

1. 1600mm diamond wet use saw blade circular segment specially developed for general purpose cutting of hard,medium hard, soft stone.

2. For smooth cutting,with a perfect chip-free edge.

3. Granite tips diamond saw blade cutting segments are best quality control system,select materials.

4. 1600mm diamond wet use saw blade circular segment for single blade and multi-disc blade used to cut and split stone slab, block and cubes.

Advantage:

1600mm diamond wet use saw blade circular segment

1. High cutting efficiency.

2. it makes fast diamond exposed.

3. Good debris removal and better cooling.

4. Reduce the interface friction of diamond saw blade and stone.

Specification:

The following are normal specifications 1600mm diamond wet use saw blade circular segment:

Code.

Diameter

(mm)

Segment Dimension (L × W × H)

Segment No.

BW-DSGB-02-08

1600

9.4/8.9/8.4

15/20

104/108

Specially designed tools are available for any standard application. We can

Tailor your tools to your specific needs

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Product Detail:

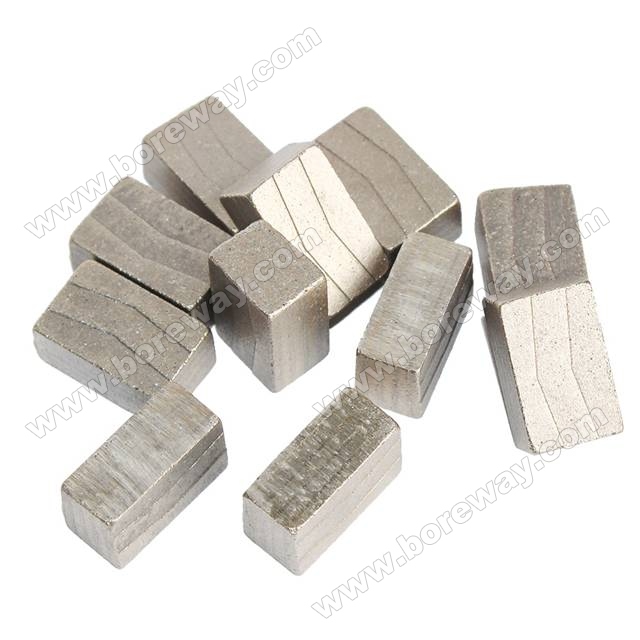

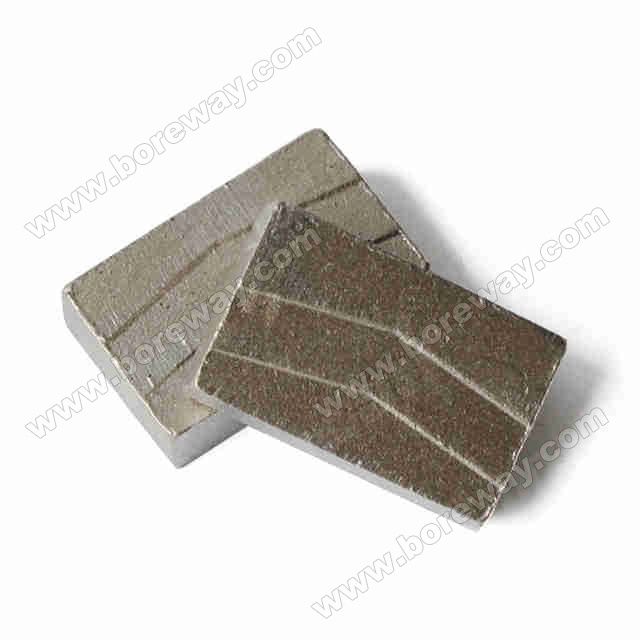

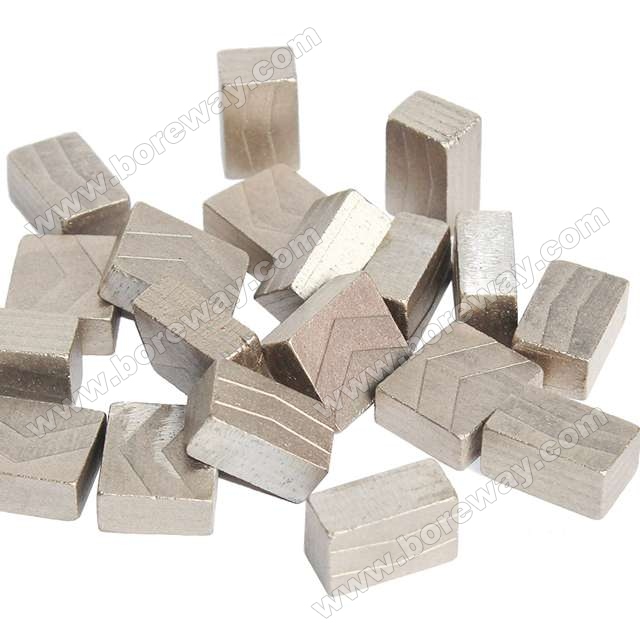

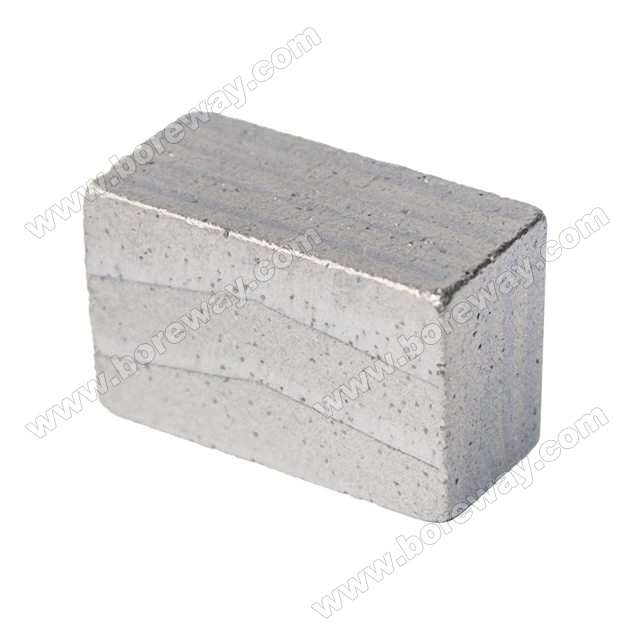

1600mm diamond wet use saw blade circular segment

Application:

1600mm diamond wet use saw blade circular segment for granite cutting used for single or multi circular saw blade from 900mm to 3500mm, Cutting of Granite, Sandstone, various hard stone with quartz.

1600mm diamond wet use saw blade circular segment should match the nature of the material to be cut.

1. If the material is hard, the bond of the diamond segments should be softer.

Because diamonds will become blunt when cutting hard material. Softer bond can be

worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting

2. If the material is relatively softer, the bond should be harder.

The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Application machine:

High frequency silver welded machine is recommended instead of welding by fire.

1600mm diamond wet use saw blade circular segment

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

Relatsd Products:

Diamond Segments of Gang Saw Blades for Marble Block Cutting & Squaring	900mm-2000mm Diamond Segments for Marble Block Cutting	900mm-3500mm Diamond Segments for Granite Cutting

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
