Products category

E20 portable router bits

Add / Delete to Basket

Product parameters

Name:	E20 portable router bits
Model Number:	BW-RB-M0301-E20
Industry	Diamond tools,stone processing
Processing	Sintering
Connection	M8,M10,M14,M16,1/2G
Performance	Fast shining and polishing quickly,flexible use
Application	Grinte slab edge profiling,marble slab edge profiling
Machine	portable grinding machine
Series	Pos1,Pos2,Pos3,Pos4,Pos5,Pos6,Pos7,Pos8 or Pos0,Pos2,Pos3,Pos4,Pos5,Pos6,Pos7
Grit	50# 100# 200# 400# 800# 1500# 3000#
Thickness	20mm

Product Description

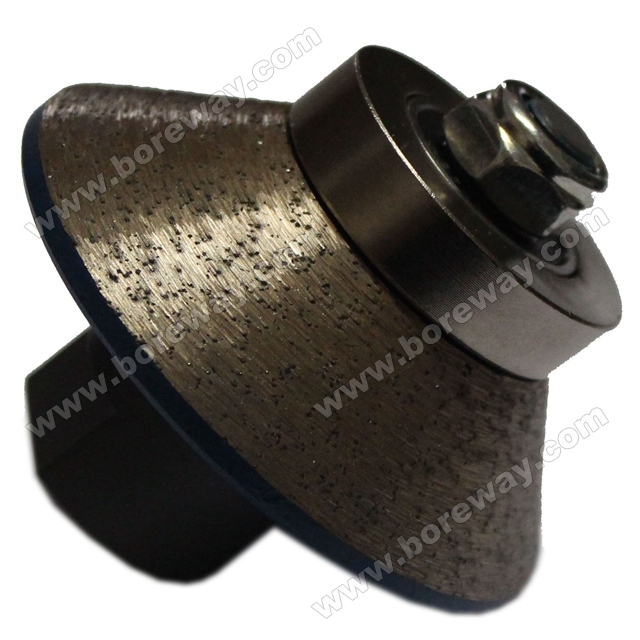

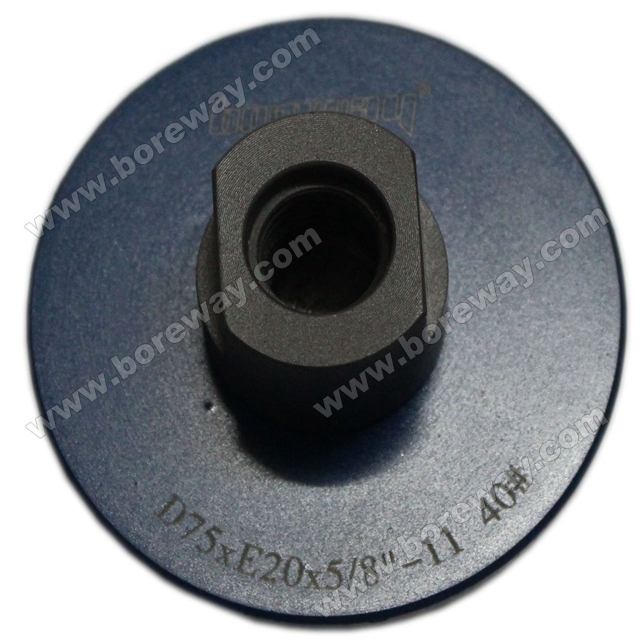

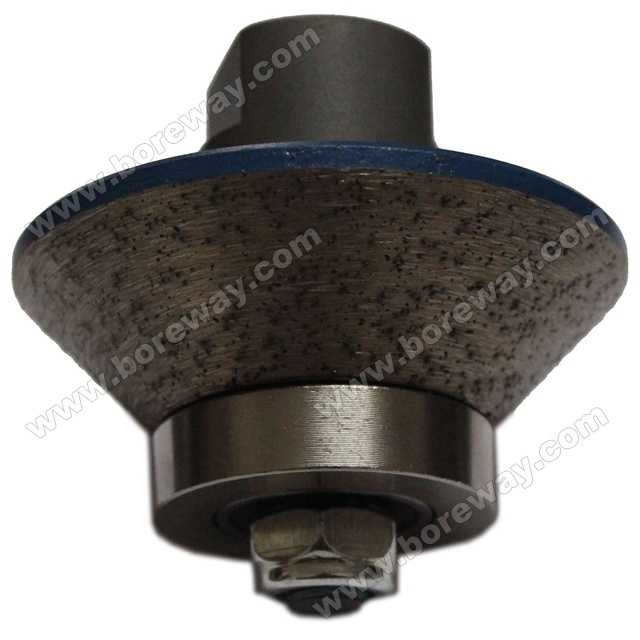

E20 portable router bits

E20 portable router bits are used for portable grinding machine, for profiling countertops. Using sequence: from rough grit to fine, finally polishing.

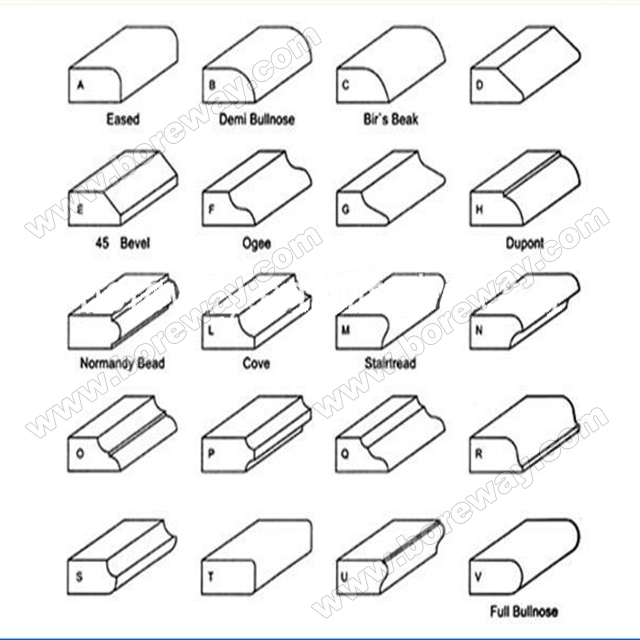

The following are different shapes design , including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC

Diameter

Stone shape

Spindle

Thickness

Grit No

Series

50-125mm

A,B,D,E,F,G,

H,I,L,M,N,O,

P,Q,S,T,U,V,

WF,DD,DC

M8,M10,M14,

1/2G",5/8-11"

20mm,30mm,

40mm,50mm

50#,100#,200#,400#,

800#,1500#,3000#

0#,1#,2#,3#

,4#,5#,6#7# or 1#,2#,3#,4#

,5#,6#,7#,8#

The about specifications is only for reference, other or special specification may be available as per customers' demand.

E20 = E Shape with 20mm thickness.

It including different types, segmented type and continuous rim type.

Kindly noted:

When order protable router bits please Confirm.

Code No. of router bit ( BW-RB-M0301-E20)
Type(?)

Size(?)

Grit(?)

Connection(?)

Number(?)(You can order single piece or more ,also can order sets.)
