| Product parameters |
| Name: | Diamond Profile Wheels & Router Bits |
| Model Number: | BW-DF-R00 |
| Type: | Wet Use |
| Thickness: | 2cm,3cm,4cm,5cm |
| Diameter: | From 100mm to 350mm |
| Usage: | For stone or other architectural materials |
| Machine: | Portable Grinder,grinding machine,CNC machine |
| Advatage: | Good sharpness and Long lifespan |
| Grinding result: | High gloss and lasting shining |
| Water Quantity Needed: | Medium,Big |
| Performance: | Hightly stable |  |

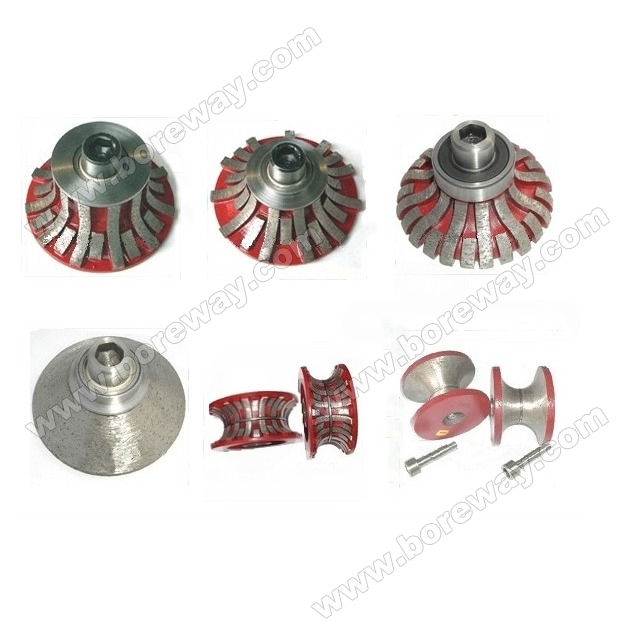

Diamond Profile Wheels & Router Bits
Profile is a kind of ornamental made by stone or other architectural materials. For the natural stone, it must be processed from molding, finishing to polishing and some other procedures, and will be decorative.
Common stone and other material furniture will become hyper-furniture if their profiles are ones own special beautiful shape. Decorating profile can make furniture looks more slap-up, and it is a kind of necessary decoration for beautifying balcony and house.
We can decorate metopes, cylinders, as well as stairs and handrails with some rectilinear and curvilinear stone decorating profiles and arrange appropriate profiles and colors to make house looks more luxurious. Now, being a kind of important decoration material, stone decorating profile becoming more and more popular.

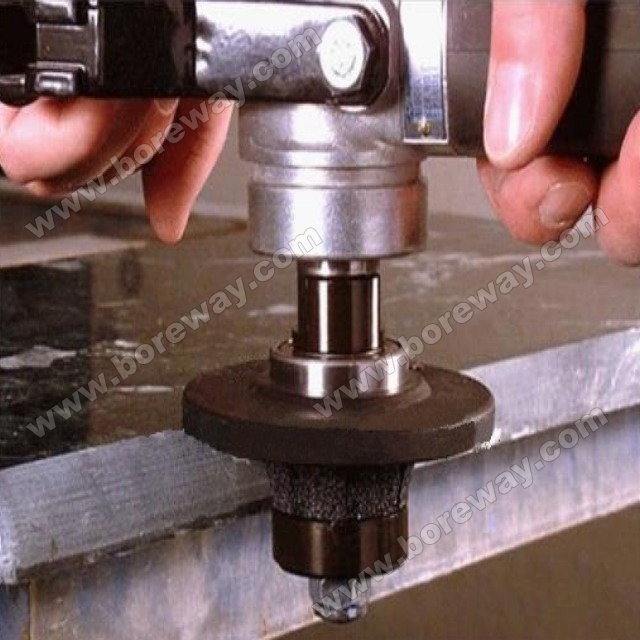

The profiles can be processed through milling with numerical control machine tool, but the way of most simple, reliable, extensive and lowest in cost is molding with diamond profile wheel and grinding with diamond flexible pad.

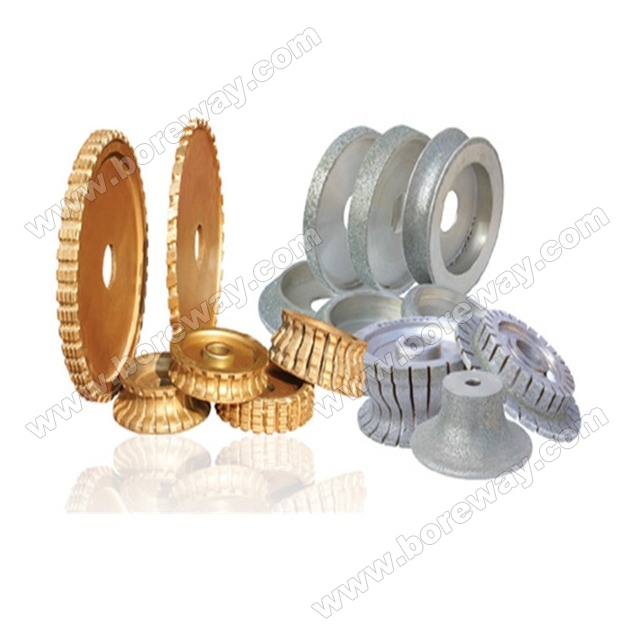

The tools for processing profiles are: sintered wheel, brazed wheel, electroplated wheel, carborundum resin grinding wheel, diamond bond resin grinding wheel and so on.
The following are the normal Specifications we are selling:
|
Diameter |
Thickness |
Inner Hole |
Shape Type | |
|
100mm (4") |
2cm 3cm 4cm 5cm |
30mm 50mm |
Eased LongNose Demi
Demi BullNose Bevel Chamfer LongNose Ogee Ogee Reinforced LN Demi / Dupont Reinforced Full Bull / Normandy Bead Scotia Stair Tread Double Demi Shape O Double Bevel Double Cove Straight Cove Double Eased Quirk Full Bull Nose |
A B
C D E F G H I L M N O P Q R S T U V |
| 150mm(6") | ||||
|
200mm (8") |
||||
|
250mm (10") |
||||
|
300mm (12") |
||||
| 350mm(14") | ||||

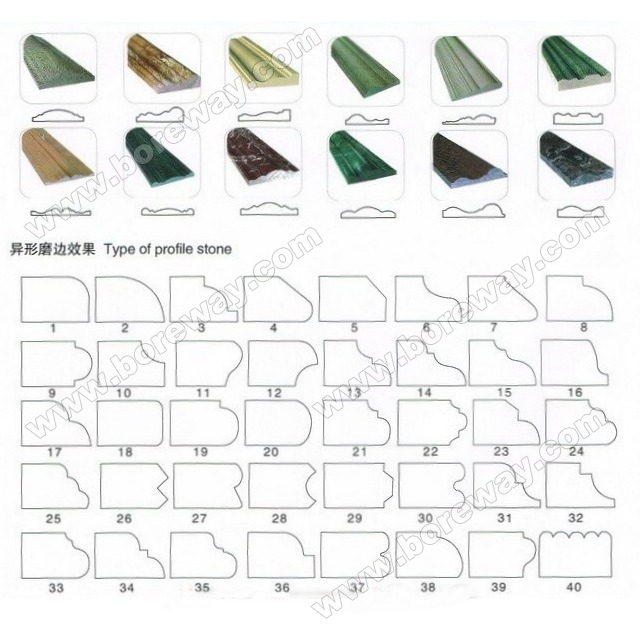

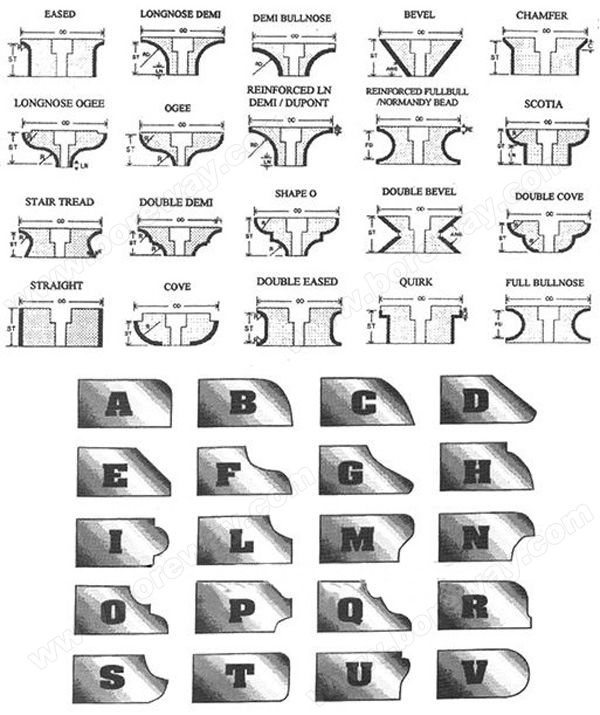

Profile Shapes:
The about specifications & photos is only for Reference, other or specialspecification may be available as per customers' demand.
Kindly Noted:
When place order for Diamond Profile Wheels please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Working Thickness (How many mm?)
Profile Wheel Shape (Full Bull Nose, or 1/2 or 1/4 Bull Nose, or others?)
Use of Profile Wheel (For Granite, or marble, or other material)
Detailed Description with Photo
Quantity NO. (How many pcs)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
