Diamond profile wheels segmented type

Product parameters
Name: Diamond profile wheels segmented type
Model Number: BW-DF-R01
Type: Wet Use
Thickness: 2cm,3cm,4cm,5cm
Diameter: From 100mm to 350mm
Usage: For profiling granite and hard stone materials
Machine: Stone grinding machines
Advatage: Good sharpness and Long lifespan
Grinding result: High gloss and lasting shining
Water Quantity Needed: Medium
Performance: Hightly stable
Processing technology Sintering

Product Description

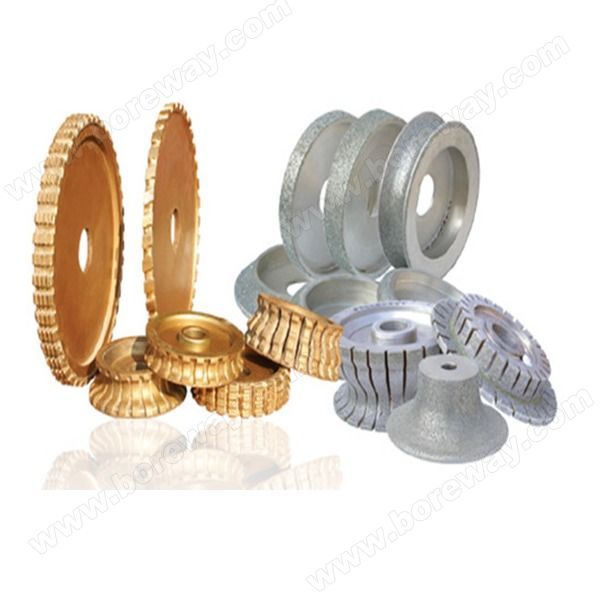

Diamond Profile Wheels



Diamond profile wheels segmented type are designed for profiling granite and hard stone materials, they are very economical and easy for different profile shapes including bull noses on your tile and stone edges.





The following are the normal Specifications we are selling:



Diameter

Thickness

Inner Hole

Shape Type

100mm (4")

2cm

3cm

4cm

5cm

30mm

50mm

Eased

LongNose Demi





Demi BullNose

Bevel

Chamfer

LongNose Ogee

Ogee

Reinforced LN Demi / Dupont

Reinforced Full Bull / Normandy Bead

Scotia

Stair Tread

Double Demi

Shape O

Double Bevel

Double Cove

Straight

Cove

Double Eased

Quirk

Full Bull Nose

A

B





C

D

E

F

G

H

I

L

M

N

O

P

Q

R

S

T

U

V

150mm(6")

200mm (8")

250mm (10")

300mm (12")

350mm(14")

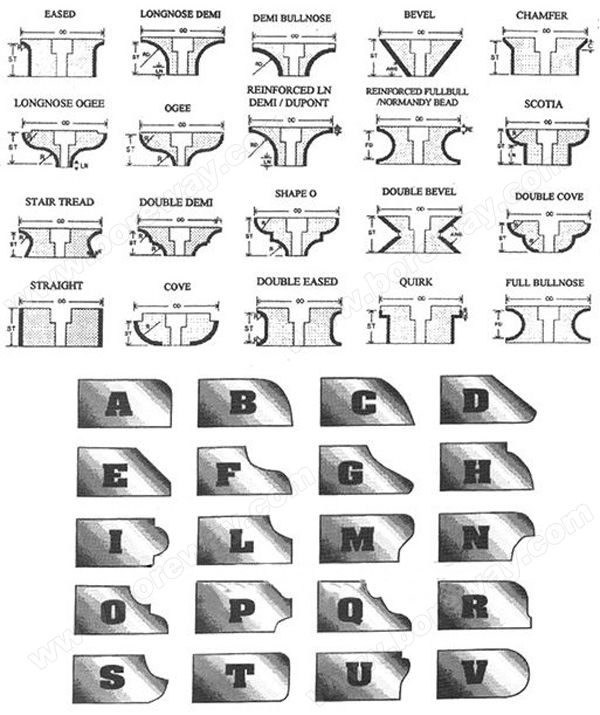

Profile Shapes:




The about specifications & photos is only for Reference, other or specialspecification may be available as per customers' demand.







Kindly Noted

 When place order for Diamond Profile Wheels please inform the following:



  Diameter (Inch or mm)

  Inner Hole Size (Inch or mm)

  Working Thickness (How many mm?)

  Profile Wheel Shape (Full Bull Nose, or 1/2 or 1/4 Bull Nose, or others?)

  Use of Profile Wheel (For Granite, or marble, or other material)

  Detailed Description with Photo

  Quantity NO. (How many pcs)

  Machine Powder/RPM (If possible)

  Expected Shipping Date

  Special Requirements (If)
