| Product parameters |
| Name: | E20 D95 CNC concrete router bit |
| Model Number: | BW-RB-M0302-E20 |
| Industry | Diamond tools,stone processing |
| Processing | Sintering |
| Thickness | 20MM |
| Performance | Fast shining and polishing quickly,flexible use |
| Application | Grinte slab edge profiling,marble slab edge profiling |
| Machine | CNC machine |
| Series | Pos1,Pos2,Pos3,Pos4,Pos5,Pos6,Pos7,Pos8 or Pos0,Pos2,Pos3,Pos4,Pos5,Pos6,Pos7 |
| Grit | 50# 100# 200# 400# 800# 1500# 3000# |
| Size | E20*D95*35H |  |
E20 D95 CNC concrete router bit
E20 CNC router bit is used for CNC machine,automatic processing,high-efficient,exact figure. Using sequence: from rough grit to fine, finally polishing.

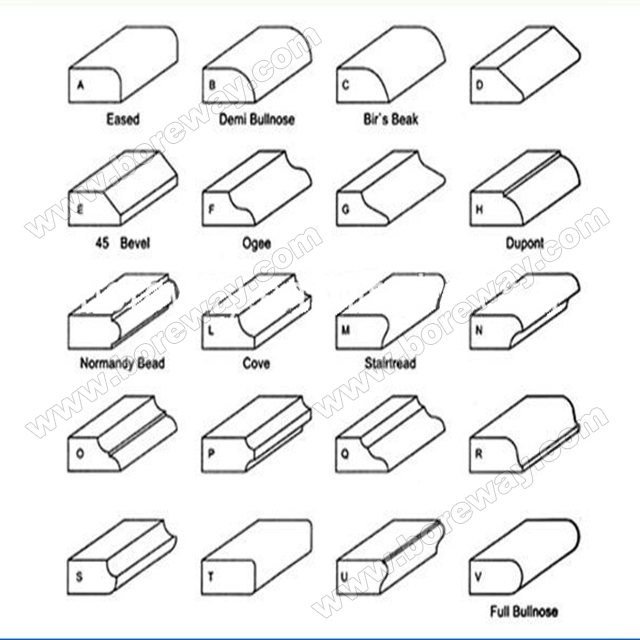

The following are different shapes design , including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC
The about specifications is only for reference, other or special specification may be available as per customers' demand.
Diameter
Stone Shape
Thinckness
Grit No
Series
50-125mm
A,B,D,E,F,G,H,I,L,M,N,O,P,Q,S,T,U,V,WF,DD,DC
20mm,30mm,40mm,50mm
50#.100#，200#，400#，800#，1500#，3000#
0#,1#,2#,3#,4#,5#,6#,7# or 1#,2#,3#,4#,5#,6#,7# 8#
E20 = E Shape with 20mm thickness
It including different types, segmented type and continuous rim type.
Kindly noted:
When order CNC router bit please Confirm.
Code No. of CNCrouter bit ( BW-RB-M0302-E20(D95))
Type(?)
Size(?)
Grit(?)
Connection(?)
Number(?)(You can order single piece or more ,also can order sets.)
