| Product parameters |
| Name: | Diamond Saw Blade with J Slot Steel Core for Ceramic |
| Model Number: | BW-CCSB-02 |
| Use Type: | Wet use only |
| Diameter: | From 250 to 350mm |
| Segment Thickness: | 2.8mm,3.0mm |
| Segment Height: | 10mm |
| Segment shape: | J Slot Steel Core |
| Industry: | Diamond tools |
| Usage: | For Ceramic |
| Process Method: | High Frequency Silver Welded |
| Machine: | Manual Handling Cutting Machine |
| Cutting result: | Flat surface and even size |  |

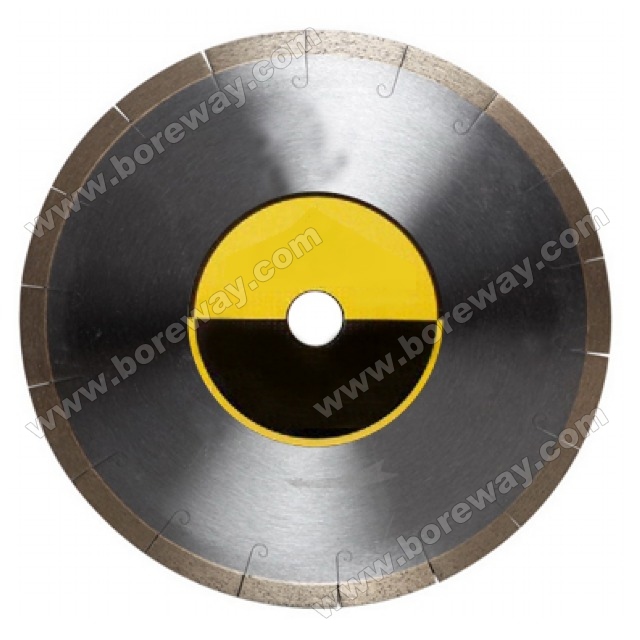

Diamond Saw Blade-for Ceramic-Porcelain & Tile Cutting
High Frequency Silver Welded Diamond Saw Blade with "J" Slot(Fish hook) Steel Core
Diameter: 250-350mm, suitable for cutting various Ceramic & Porcelain with perfect performance.
Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance.
The following are the normal Specifications we are selling:
| Code No. | Diameter | Hole(mm) | Segment Thickness |
Segment Height |
Segment No. |
| BW-CCSB-02-01 | 250mm(10") | 25.4/30/50/60 | 2.8mm | 10mm | 18 |
| BW-CCSB-02-02 | 300mm(12") | 25.4/30/50/60 | 3.0mm | 10mm | 21 |
| BW-CCSB-02-03 | 350mm(14") | 25.4/30/50/60 | 3.0mm | 10mm | 25 |
The above specification is only for Reference, other or special specification can be ordered by customers.
Safety First !
Please use the following before operating the cutting:
Kindly Note：
When place order for saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Silent or None Silent Saw Blade
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
If only order segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)
Quantity NO. (how many sets segments)
Machine Powder/RPM, Feed Speed, Normal Cutting Depth (If possible)
Expected Shipping Date
Special Requirements (If)
