China Factory Supply Diamond V30 CNC Grinding Profiling Wheel for Portable Grinding or Edge Cutting Machine

Add / Delete to Basket

Product parameters

Name:	China Factory Supply Diamond V30 CNC Grinding Profiling Wheel for Portable Grinding or Edge Cutting Machine
Model Number:	BW-CNCW-V30-01
Shape:	Round
Diameter:	55-140mm
Color:	Customized
Thickness:	20/25/30/40/50mm
Material:	Diamond,Metal Bond Powder
Grit No.:	30# 60# 80# 120# 150# 200#
Feature:	Long Life High Performance
Machine:	Automatic Grinding Machine,Edge Cutting Machine
Type:	Abrasive Tool,CNC Wheel,Profiling Wheel
Use:	For Marble Granite, Quartz, Artificial Stone And Other Stone

Product Description

China Factory Supply Diamond V30 CNC Grinding Profiling Wheel for Portable Grinding or Edge Cutting Machine

Descriptions:

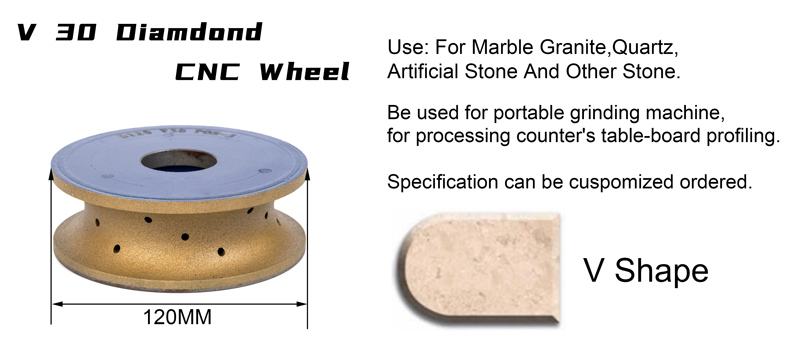

V30 Diamond CNC Grinding Profiling Wheel are widely used on profiling machines for granite marble quartz stone and other stone. We offer a wide range & shapes with different sizes to satisfy your exact profiling needs.

CNC wheel is equipped on CNC machine, which is good at irregular shape stone processing.

The precise profiling, high efficiency make it widely used in the edge processing of vanity top and counter-top etc.

V30 Diamond CNC Grinding Profiling Wheel for stone are used for CNC machine,automatic processing the granite,

marble,other stones and the counter.Their merits are high efficiency of production,exact figure.

Using sequence: from rough grit to fine, finally polishing.

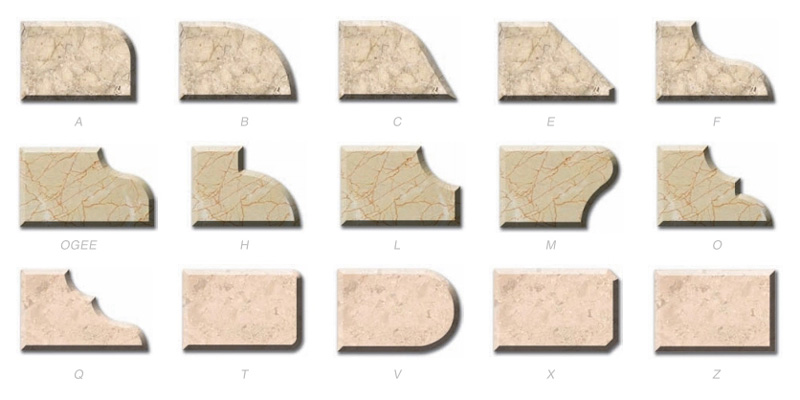

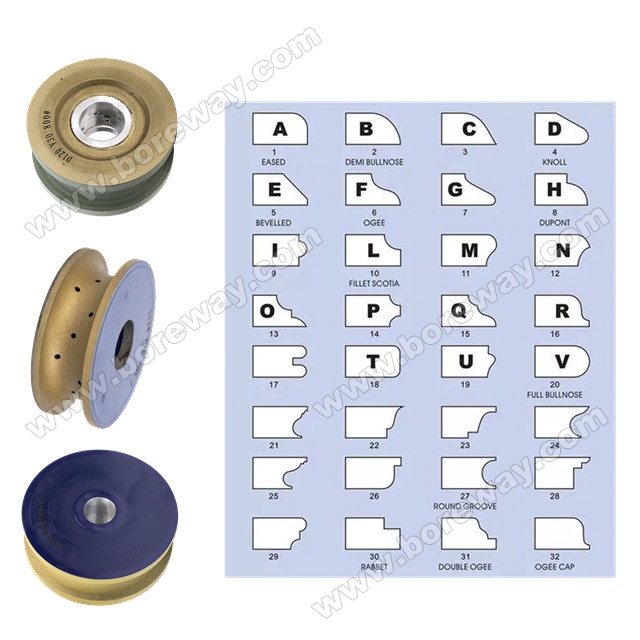

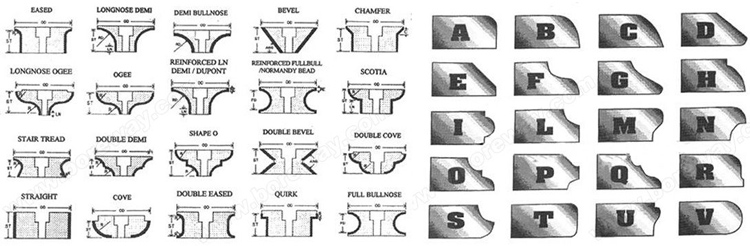

The following are different shapes design ,

including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC

Specifications:

V30 Diamond CNC Grinding Profiling Wheel

The following are the normal specification of the diamond router bit:

Diameter(mm)	Steps	Grit	Bond		RPM/min	Feeding speed(mm/min)	Stone thickness(mm)	Inner Hole(mm)
55,80,100, 140, 150	No.0	30/40#	Metal	Rough Grinding	4500	500-600	15, 20, 25, 30, 40, 50	35
	No.1	30/40#	Metal		4500	500-600
	No.2	70/80#	Metal		4500-4600	1000-1400
	No.3	140/170#	Metal	Fine Grinding	4500-4600	1000-1400
	No.4	230/270#	Metal		1200-1500	600-800
	No.5	400#	Resin
	No.6	800#	Resin
	No.7	1500#	Resin
	No.8	3000#	Resin

The above specifications is only for reference.

Other or special specification may be available as customers' demand.

It including different types, segmented type and continuous rim type.

Feature:

1. Approved quality with factory competitive price.

2. Long lifespan, good sharpness, stable performance and high grinding efficiency.

3. Custom-design can be meet upon request. Small trila order is avaialbe any time.

China Factory Supply Diamond V30 CNC Grinding Profiling Wheel for Portable Grinding or Edge Cutting Machine

Advantages:

1. Using sequence:from rough grit to fine,finally polishing.
2. Various specification are available upon client's request.

3. The unique design with good sharpness allows easy dust removal, low noise and safety.

4. This product provides high accuracy and smooth surface in stone processing.

Applications:

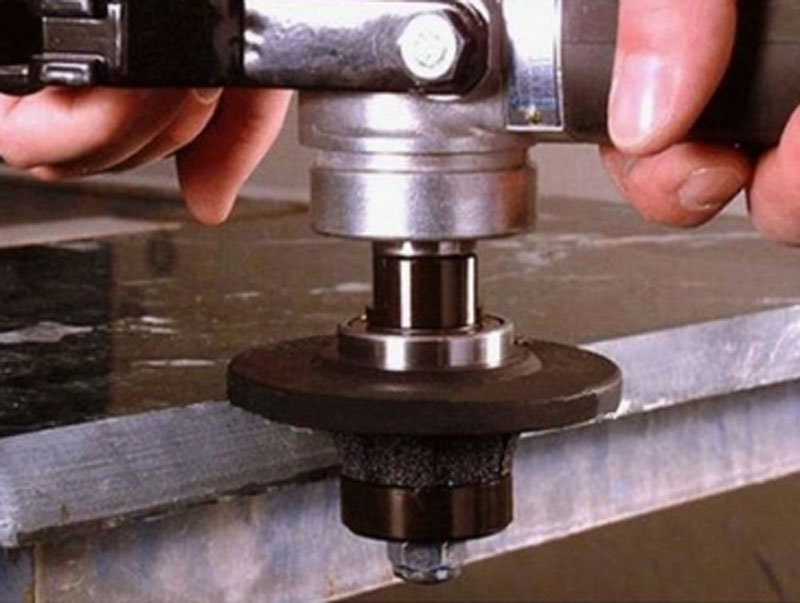

Machine:Portable Grinding ,Edge Cutting Machine.

Continuous router bits give you better performance to get more bright surface.

Diamond Router Bits for stone, glass, composite, tile, concrete.

Our Serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so

Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?

We do not provide free samples. Based on years of experience, we believe that people will get them.

By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?

Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo

And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese Note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.

-Lyon Chang-

Fujian Nan'an Boreway Machinery Co.,Ltd.

Tel,Wechat,WhatsApp: +86 18650679939

E-mail: boreway@boreway.com
