Borewya V Step Design Diamond Segment For Granite Saw Blade

Add / Delete to Basket

Product parameters

Name:	Borewya V Step Design Diamond Segment For Granite Saw Blade
Model Number:	BW-DSGB-00
Place of Origin:	Fujian, China
Brand Name:	Boreway
segment length:	24/30mm
Segment No.:	64-180pcs
Segment Height:	12/15/20/25/30mm
Type:	Sandwich,Groove,etc
Out diameter for saw blade:	900mm-3500mm
Application:	Diamond segment for granite marble cutting,stone,etc

Product Description

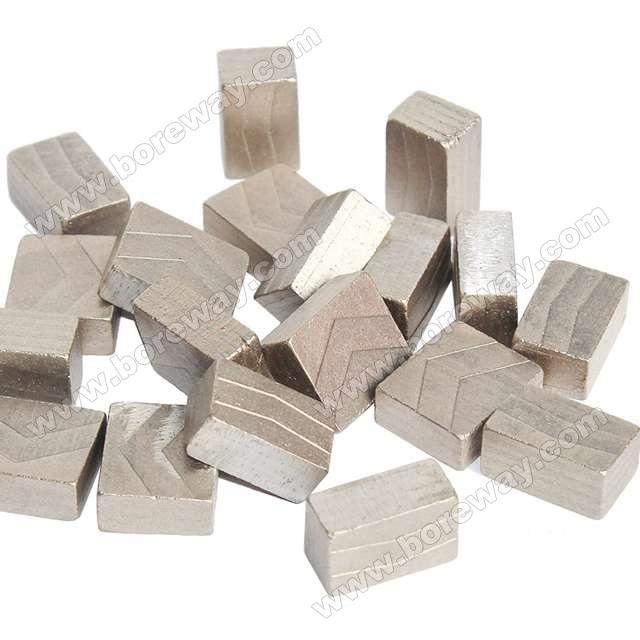

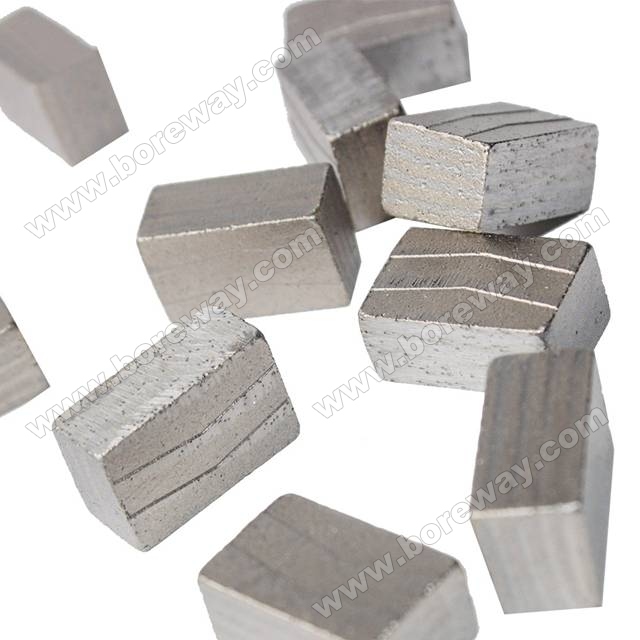

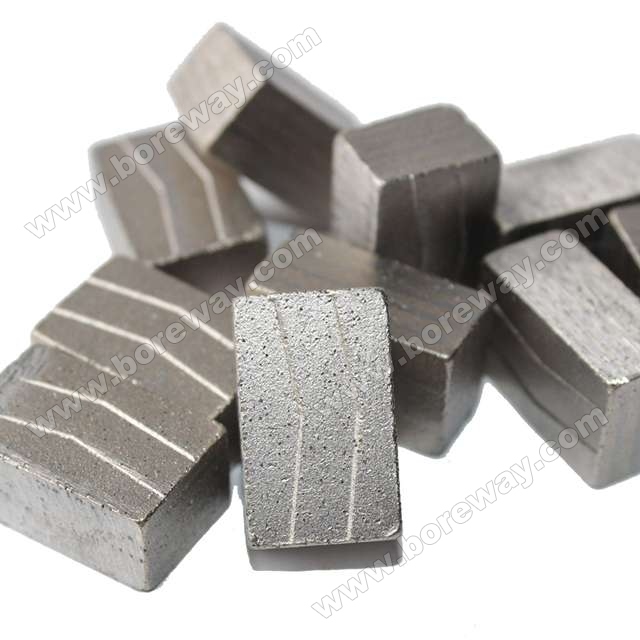

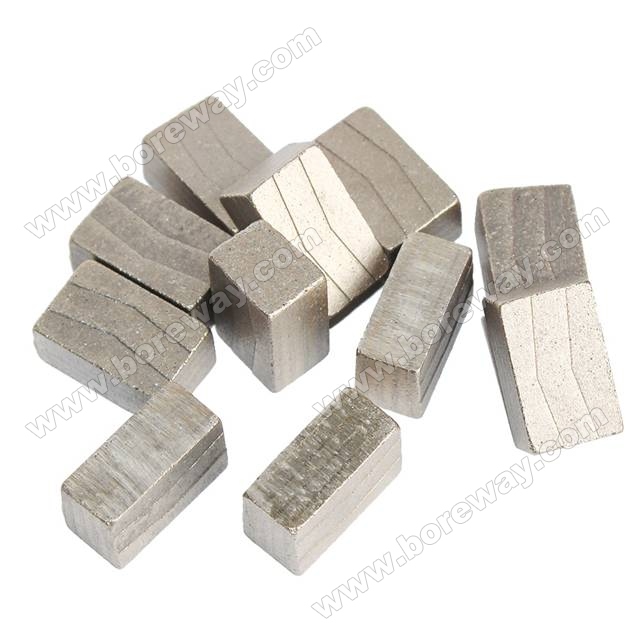

Borewya V Step Design Diamond Segment For Granite Saw Blade

Feature:

1. V step design diamond segment for granite is fast cutting ,long life,Stable performance,High grade of diamonds

2. Different bonds are for different applications,precise segment size

3. Working safe,quiet,and precise,reducing cutting ,working time

4. Great adaptability,No chipping

Advantages:

1. Reduce the interface friction of diamond saw blade and stone.

2. High cutting efficiency.

3. Good debris removal and better cooling.

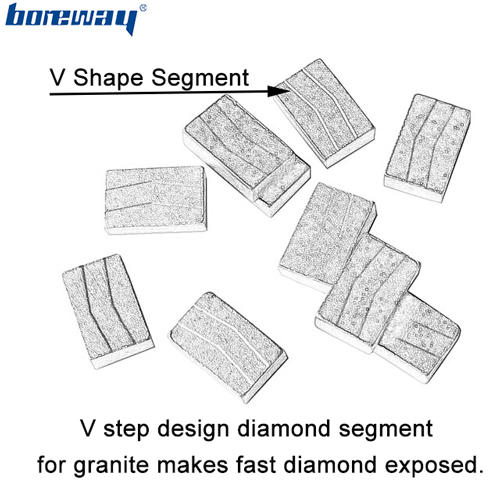

4.V step design diamond segment for granite makes fast diamond exposed.

Descriptions:

V step design diamond segment for granite or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.

In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.
The segment or rim is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.

Boreway V Step Design Diamond Segment For Granite Saw Blade

Specifications:

The following are normal specifications v step design diamond segment for granite:

Diameter (mm)	Segment Dimension (L × W × H)			Segment No.
Diameter (mm)	Length	Width (Taper Type)	Height	Segment No.
900	24	7.0/6.4	12/15/20	64
1000	24	7.5/7.0/6.5	12/15/20	70
1100	24	7.5/7.0/6.5	12/15/20	74
1200	24	7.8/7.4/7.0	12/15/20	80
1300	24	8.4/7.9/7.4	12/15/20	88
1350	24	8.4/7.9/7.4	12/15/20	88
1400	24	8.4/7.9/7.4	12/15/20	96
1600	24	9.4/8.9/8.4	15/20	104/108
1700	24	9.4/8.9/8.4	15/20	112
1800	24	10/9.4/8.8	15/20	120
2000	24	10.6/10.0/9.6	15/20	128
2200	24	11.5/11/10.5	15/20	132/136
2500	24/30	12/11.5/11	15/20	140
2500	24/30	12.5/12/11.5/11	30	140
2700	24/30	12/11.5/11	15/20/25	140
2700	24/30	12.5/12/11.5/11	30	140
3000	24/30	12.5/12/11.5	20/25	160
3000	24/30	13/12.5/12/11.5	30	160
3500	24/30	13/12.5/12	20/25	180
3500	24/30	13.5/13/12.5/12	30	180

The above specification and photos is only for reference, other specification or design may be available as per customer's demand.

Applications:

Wet use only

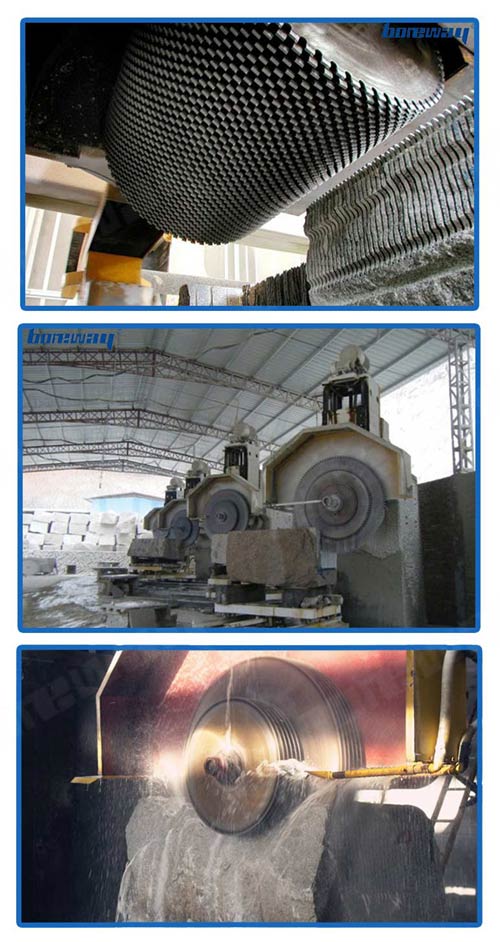

V step design diamond segment for granite 900-3500mm circular saw blades for block cutting of cutting granite,marble, sandstone, limestone,concrete,also other diamond segment.
