Boreway Professional 550mm Diamond Segments for Cutting Stone Supplier

Add / Delete to Basket

Product parameters

Name:	Boreway Professional 550mm Diamond Segments for Cutting Stone Supplier
Model Number:	BW-DSG-01-07
Segment No.:	38pcs
Diameters:	550MM
Usage:	Wet use
Shape:	Normal flat Shape
Segment Size:	40x4.4x10MM
Machine:	For Table Cutting Machines
Cutting Material:	Granite, Sandstone, various hard stone with quartz

Product Description

Boreway Professional 550mm Diamond Segments for Cutting Stone Supplier

Feature:

1. It has good sharpness, fast cutting speed and high cutting efficiency.

2. Good wear resistance, long service life and high comprehensive cost performance.

3. Professional 550mm diamond segments are Fast cutting, small cutting seam, the cut stone surface is flat and even in size.

4.By changing single grinding into the combination of grinding and cutting, the sawing performance is optimized.

Advantage:

1.Professional 550mm diamond segments adopts diamond sheet material and metal matrix (Ti + Cr + Ni + CO, etc.) to form chemical bond, which can reduce threshing, improve cutting edge and prolong service life.

2. A large number of products are exported to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets; the product quality has been unanimously recognized by overseas customers.

Specification:

The following are normal specifications professional 550mm diamond segments :

Code No.

Diameter

(mm/Inch)

Segment Size

(mm)

Segment No.

(pcs/set)

BW-DSG-01-07

550mm(22")

40x4.4x10/12/15/20

Specially designed tools are available for any standard application. We can

Tailor your tools to your specific needs

PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!

Product Detail:

Professional 550mm diamond segments

Application:

Professional 550mm diamond segments with normal flat shape of circular saw blades for slab edge cutting of Granite, Sandstone, various hard stone with quartz.

1. If the material is hard, the bond of the diamond segments should be softer.

Because diamonds will become blunt when cutting hard material. Softer bond can be

worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting

2. If the material is relatively softer, the bond should be harder.

The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Application machine:

500mm cut diamond segments for stone professional supplier silver welding by high frequency welding machine.

250mm quality diamond discs segment is wet use

High frequency silver welded machine is recommended instead of welding by fire.

Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

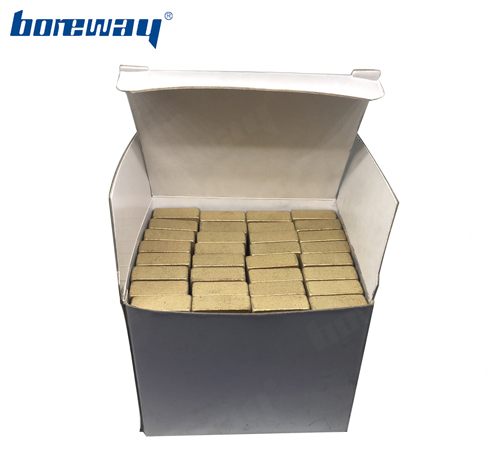

Packing:

Relatsd Products:

Multi Blade Diamond Segment	W Shape Edge Cutting Diamond Segment for Granite	1400mm Diamond Cutting Tools Marble Block Diamond Segments

Please try best to offer below information when you are placing order:

Diam.: (inch or mm)

Segment Size (LxWxH, and thickness of steel core if possible)

Segment Formation (sandwich type or multiple line type)

Welding technology ( Silver Welding by high frequency machine, or Laser weldng)

Cutting target (for granite, sandstone or other hard stone including quartz)

Order quantity (how many pcs of blade or how many sets of segment)

Machine power (motor/rotation speed if possible)

Feeding speed (meter/minute)

Expected cutting depth(mm, at every turn, to and from)

Cooling system(water cooling or oil cooling, is it including coolant, the rate, liter/m )

Expected delivery time

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
