Your position: Home > Products > Stone Tools > Stone Diamond Segment > Diamond Segments - Edge Cutting > 250mm-800mm Diamond Segments for Granite Cutting
| Product parameters |
| Name: | 250mm-800mm Diamond Segments for Granite Cutting |
| Model Number: | BW-DSG-00 |
| Type | Wet cutting |
| Segment Height | 10.0mm,12mm,15mm,20mm |
| Usage | Cutting Granite, Sandstone, kinds of hard Stone with quartz |
| Segment Length | 20mm,40mm |
| Segment Structure | Sandwich or 1-Layer |
| Advatage | Good sharpness and Long lifespan |
| Cutting result | Flat surface and even size |
| Welding Method | Silver Welded |
| Performance | Hightly stable |  |

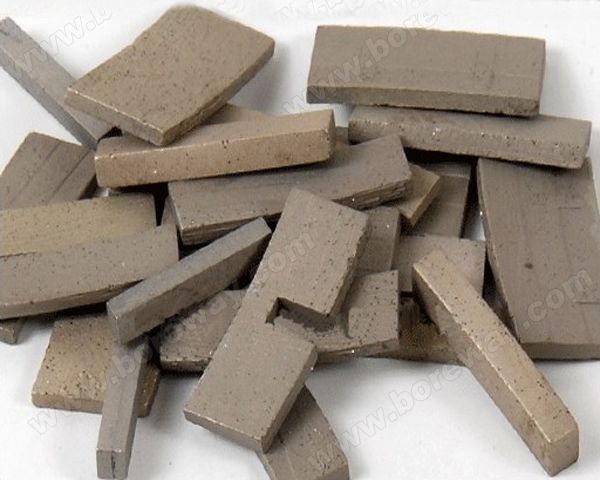

250mm-800mm Diamond Segments for Granite Cutting
Diamond Segment of 250-800mm circular saw blades for Slab Edge Cutting of Granite, Sandstone, kinds of hard Stone with quartz.
Wet use only.
Welding method: Silver Welding.
The following are the normal Specifications we are selling:
|
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
Welding Method | Segment Structure | ||
| Length | Width | Height | ||||
|
250mm(10") |
40 |
2.6/2.8 |
10/12 |
18 |
Silver Welded |
Sandwich or 1-Layer |
|
300mm(12") |
40 |
3.0/3.2 |
10/12/15 |
21 |
||
|
350mm(14") |
20/40 |
3.2/3.4 |
10/12/15/20 |
24/25 |
||
|
400mm(16") |
20/40 |
3.2/3.4/3.6/3.8 |
10/12/15/20 |
28 |
||
| 450mm(18") | 40 |
3.6/3.8/4.0 |
10/12/15/20 |
32 |
||
|
500mm(20") |
20/40 |
4.2 |
10/12/15/20 |
36 |
||
|
550mm(22") |
40 |
4.2/4.4 |
10/12/15/20 |
38 |
||
|
600mm(24") |
20/40 |
4.2/4.6 |
10/12/15/20 |
42 |
||
|
700mm(28") |
40 |
5.0 |
10/12/15/20 |
50 |
||
|
750mm(30") |
40 |
5.5 |
10/12/15/20 |
50 |
||
|
800mm(32") |
20/40 |
5.2 |
10/12/15/20 |
46 |
||
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
Kindly Noted :
Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
