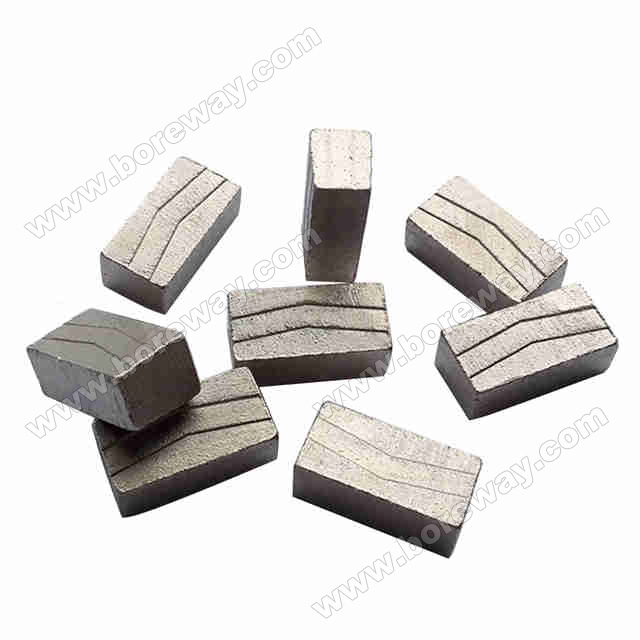

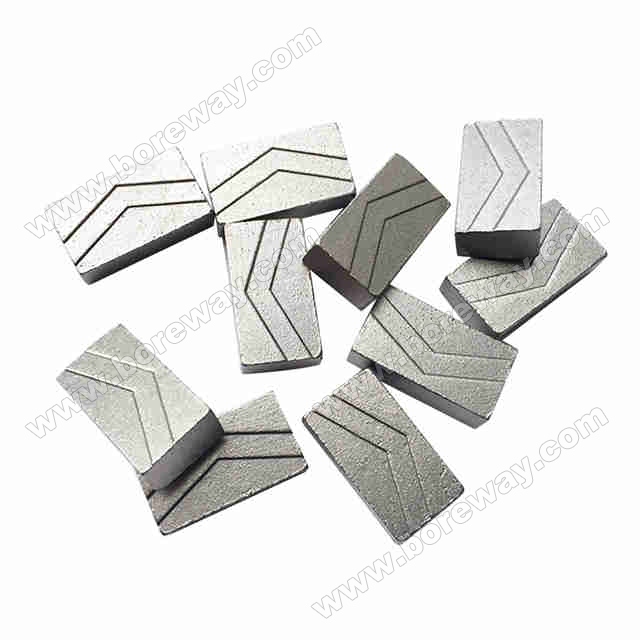

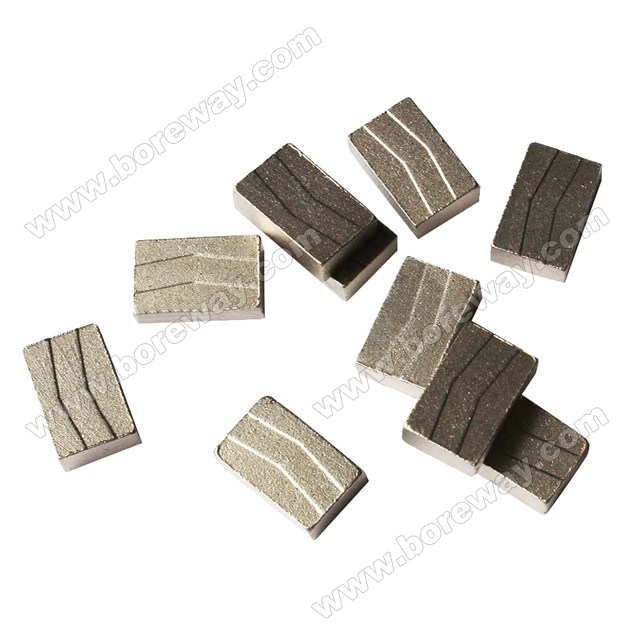

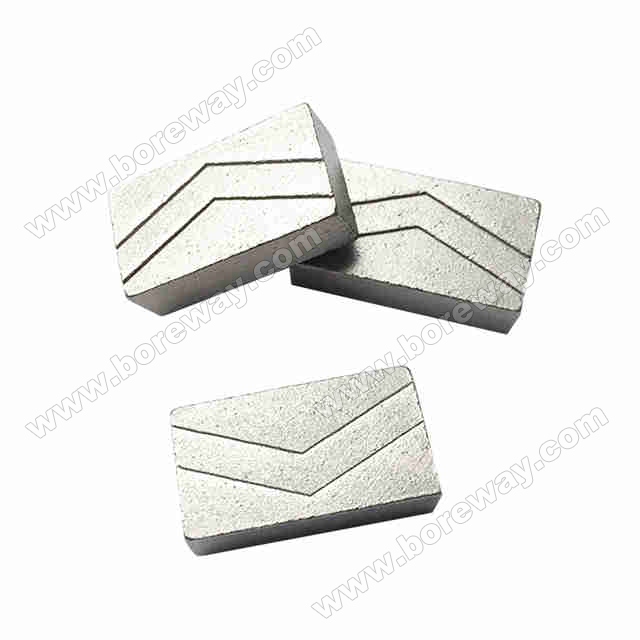

Boreway High Frequency Welding Diamond Cutting Sandwich V Shape Segment for Stone Plate

Product parameters
Name: Boreway High Frequency Welding Diamond Cutting Sandwich V Shape Segment for Stone Plate
Model Number: BW-DSGB-02
Place of Origin: Fujian, China
Brand Name: Boreway
Segment length: 24/30mm
Type: Sandwich,Groove,etc
Segment height: 12/15/20/25/30mm
Shape: T,V,U,K,M,Incline,etc
Out diameter for saw blade: 250mm-3500mm
Manufacturing Arts: Sintered,hot press,cold press
Application: Diamond segment for granite marble cutting,stone,etc

Product Description


Boreway High Frequency Welding Diamond Cutting Sandwich V Shape Segment for Stone Plate




Advantages:

1.High frequency welding diamond cutting segment characterized by high sharpness and long lifespan.

2.Segments Type: grooved type, K type, V type, taper type, sandwich.Our diamond segments for large circular saw blades are always manufactured in sandwich design.

3.Diamond distribution in the outer and inner layers is carefully designed to ensure a wear shape which helps to stabilize the cut, comparable with the effect of skating.

4.High frequency welding diamond cutting segment used for the saw blade from diameter 250mm to 3500mm single saw blade, multi saw blade, gang saw, The specification can be ordered by customers.

Descriptions:

High frequency welding diamond cutting segment or rims are made up of a mixture of diamonds and metal powders. Diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.

In the manufacturing process, the metal powder and diamond grit mixture is hot pressed at high temperatures to form a solid metal alloy (called the bond or matrix) in which the diamond grit is retained.
The segment or rim is slightly wider than the blade core. This allows the cutting edge to penetrate through the material while protecting the steel body.

Specifications:
The following are normal specifications high frequency welding diamond cutting segment:

Diameter

(mm)

Segment Dimension

(L × W × H)

Segment

No.

Length

Width

(Taper Type)

Height

900

24

7.0/6.4

12/15/20

64

1000

24

7.5/7.0/6.5

12/15/20

70

1100

24

7.5/7.0/6.5

12/15/20

74

1200

24

7.8/7.4/7.0

12/15/20

80

1300

24

8.4/7.9/7.4

12/15/20

88

1350

24

8.4/7.9/7.4

12/15/20

88

1400

24

8.4/7.9/7.4

12/15/20

96

1600

24

9.4/8.9/8.4

15/20

104/108

1700

24

9.4/8.9/8.4

15/20

112

1800

24

10/9.4/8.8

15/20

120

2000

24

10.6/10.0/9.6

15/20

128

2200

24

11.5/11/10.5

15/20

132/136

2500

24/30

12/11.5/11

15/20

140

12.5/12/11.5/11

30

2700

24/30

12/11.5/11

15/20/25

140

12.5/12/11.5/11

30

3000

24/30

12.5/12/11.5

20/25

160

13/12.5/12/11.5

30

3500

24/30

13/12.5/12

20/25

180

13.5/13/12.5/12

30
The above specification and photos is only for reference, other specification or design may be available as per customer's demand.

Applications:

High frequency welding diamond cutting segment and "V" taper shape of 900-3500mm circular saw blades for Block Cutting of Granite, Sandstone, various hard stone with quartz.

The application of bond (or Matrix)
- Typically the following rule applies :
- For hard materials : use soft bonds.
- For soft materials : use hard bonds.

Example :
Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.
welding crown shape core drill segment cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
High frequency welding diamond cutting segment

 Machine for making cutter Segment:


 20mm height black diamond granite cutting segment tips for make machine

Application machine:

Welding method: High frequency welding diamond cutting segment for Silver welding by high frequency welding machine.



Boreway Silver Welding Crown Shape Core Drill Segment For Reinforce Concrete Manufacturer
