Your position: Home > Products > Machinery and Other Tools > High-frequency welding > Stone saw blade high frequency induction welder
| Product parameters |

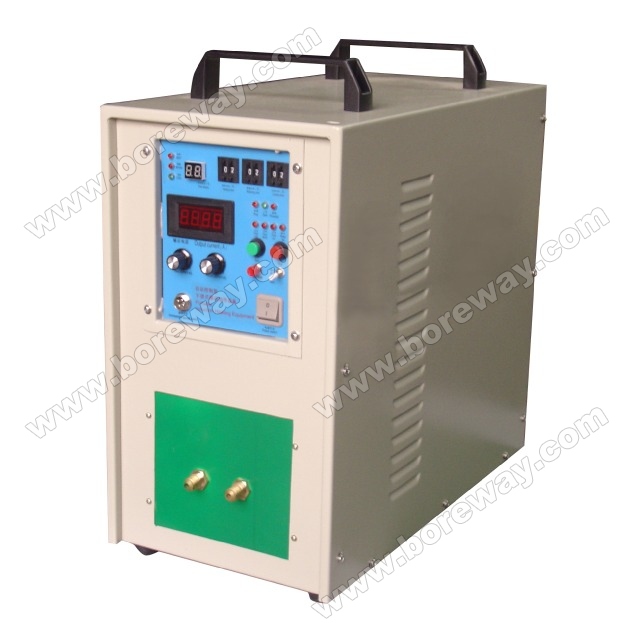

| Name: | Stone saw blade high frequency induction welder |
| Model Number: | BW-GP-25T |
| Voltage: | Three-phase 380V 50HZ or 60HZ |
| Current: | 200-1200A |
| Rated Capacity: | 25KVA |
| Rated Duty Cycle: | 100% 24 hours |
| Dimensions: | 560X220X505mm |

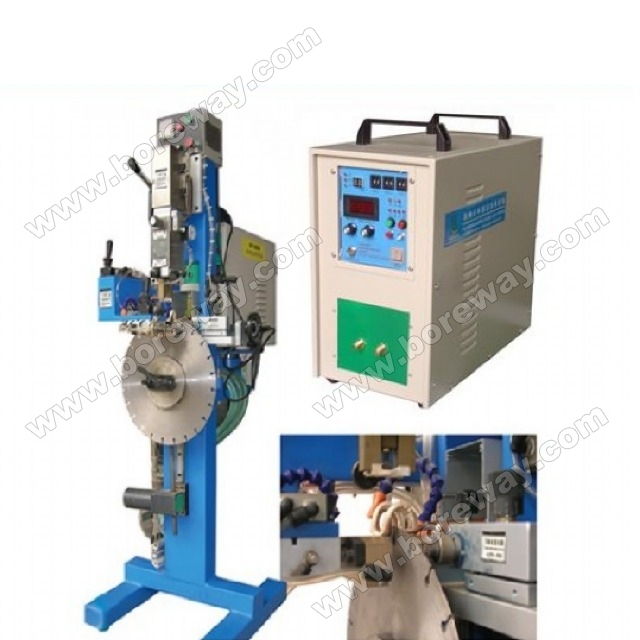

| Usage: | Saw blade welding |
| Time setting: | With timing function 1-99S |
| Working frequency: | 30-80KHZ |
| Cooling watering flow: | 7.3 L/min |  |
Under the same conditions, the effect of high-frequency power-saving double than traditional tubes.
Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.
Choose according to the power and frequency power supply, the higher the frequency heating more shallow concentration, the lower the frequency diathermy better.
The machine with the heating time, holding time and cooling time each independently adjustable, can be effective to some extent to control the heating curve and the heating temperature; applied to the high repeatability of the workpiece heating and rapid heating; applied brazing, combined with fast heating and insulation function, not only to achieve rapid heating, while at the same solder melting insulation, so that the solder fully spread.
The following are the normal Specifications we are selling:
The main technical parameters
Parameters
Numerical
Input voltage
Three-phase 380V 50HZ or 60HZ
Output power
25kw
Out current
200-1200A
Work frequency
30-80KHZ
Rated duty cycle
100%
Power factor
≥95
Temperature of cooling water
≤ 40°C
Cooling water Pressure
0.06Mpa-0.12Mpa
Cooling watering flow
7.3L/min
Machine Dimension
560×220×505mm
Machine Weigh
30KG
The above specification is only for Reference, other or special specification can be ordered by customers.
we can manufacture products upon clients' needs.
