| Product parameters |
| Name: | Sintering Mould for Diamond Core Bit |
| Model Number: | BW-SM-S0 |
| Technique: | Sintering Mold |
| Application: | Diamond Tools |
| Dimensions: | Determined by the size of customers |
| Resistance (μΩ.m): | 13 15 |
| Bulk Density (g/cm³ ): | ≥1.7 |
| Porosity (%): | Plus-minus 0.02 |
| Compressive Strength: | ≥ 40Mpa |
| Type: | Two Rows |
| Material: | Graphite |
| Ash Contents: | ≤ 0.005% |
| Transverse Strength: | ≥ 20Mpa |  |

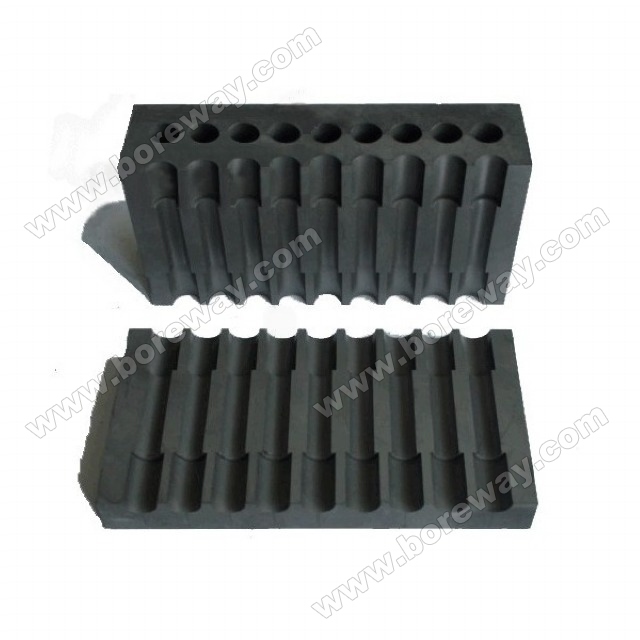

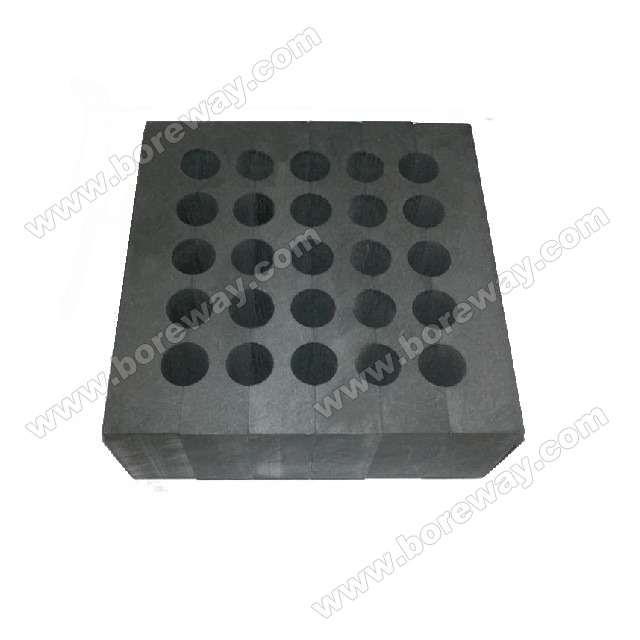

Sintering Mould for Diamond Core Bit
Diamond core drill bit sintering molding, including a fluctuation through and inside diameter and head outside diameter equal center hole of the concave die, One can move up and down to fit in die center hole of the head down, A set of press in head side of the die center hole, and outside diameter and bit diameter equal mold core; Press the head face has a central concave and mold core diameter is not through center concave hole; Mold core bottom part inserted in the center of the head down concave hole and support in the press head, Mold core and cavity between composition into cavity; And a number of thickness and into cavity a curved piece of forming plug piece; In the top of the head down on the open have multiple isometric layout panel interface, each panel interface embedded respectively inserted forming plug piece, forming insert block bottom embedded panel interface, upper stretch into into the cavities of the forming cutter head tank. The invention realizes the diamond core drill bit a bit sintering molding, head of open water tank can be directly sintering and become, die service life is long, dismantling is convenient.
Specializing in the production of diamond sintering graphite mold:
1. The diamond saw sintering mold.
2. diamond drill sintering mold (integral, modular, fan-shaped teeth, straight teeth).
3. Grinding wheel, disc, drum, trimming round moldseries.
4. series of the rope saw beads graphite mold.
5. the shaped graphite mold series.
6. professionals and can be designed according to customer requirements or samples to the the drawings processing of various graphite products.
7.Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia.etc.more than 20 different countries.In these overseas markets,our blades enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.
The following are the normal Specifications we are selling:
13
Material
Type
Ash Contents
Bulk Density g/cm³
Transverse Strength Mpa
Compressive Strength Mpa
Resistivity
u Ω·m
High Purity Graphite
S1
≤0.005%
≥1.7
≥20
≥40
15
High Purity Graphite
S2
≤0.005%
≥1.75
≥27
≥55
15
High Purity Graphite
S3
≤0.005%
≥1.77
≥28
≥58
13
High Purity Graphite
S4
≤0.005%
≥1.82
≥33
≥68
13
High Purity Graphite
S5
≤0.005%
≥1.8
≥30
≥65
Our Quality Control Cell, maintained by qualified personnel, guarantees quality & reliability of production processes as well as the raw materials
The above specification is only for Reference, other or special specification can be ordered by customers.
we can manufacture products upon clients' needs.
