Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting

Add / Delete to Basket

Product parameters

Name:	Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting
Model Number:	BW-DSEGB-00
Port	Xiamen
Brand Name	Boreway
Type	Wet use only
Segment Size(LWH)	403.212mm
Service	OEM & ODM
Application	Granite Edge Cutting
Cutting result	Flat surface and even size
Usage	for slab edge cutting of Granite, Sandstone, various hard stone with quartz

Product Description

Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting:

Descriptions:

Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting:

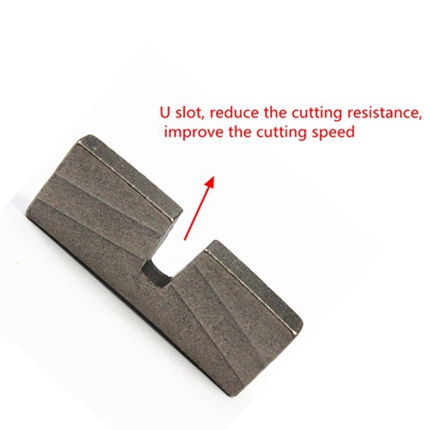

Under same segment bond condition, short length means less resistance, U Slot Granite Segment is good to reduce the cutting resistance from the stones, thus it help to improve the cutting speed. With the improving of the cutting speed, this design give very smooth cutting.

Our U Slot Granite Segment are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Such diamond segment are highest ratio of performance to price!

Specifications:

We are instrumental in providing to our valuable customers excellent quality U Slot Granite Segment which are available with following specification:

Diameter		Arbor	Steel Core	Segment Dimension	No.of teeth
(inch)	(mm)	(mm)	(mm)	LxWxH(mm)	No.of teeth
10	250	50/60	2.0(2.2)	40x2.8x12(15,20)	17
12	300	50/60	2.0(2.2)	40x3.0x12(15,20)	21
14	350	50/60	2.2(2.4)	40x3.2x12(15,20)	24,25
16	400	50/60	2.6(2.8)	40x3.4x12(15,20)	28
18	450	50/60	2.8(3.0)	40x4.0x12(15,20)	32
20	500	50/60	2.8(3.0)	40x4.4x12(15,20)	36
22	550	50/60	3.0(3.2)	40x4.6x12(15,20)	40
24	600	50/60	3.4(3.6)	40x4.8x12(15,20)	42

Besides Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting, All of our products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Product Details:

Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting:

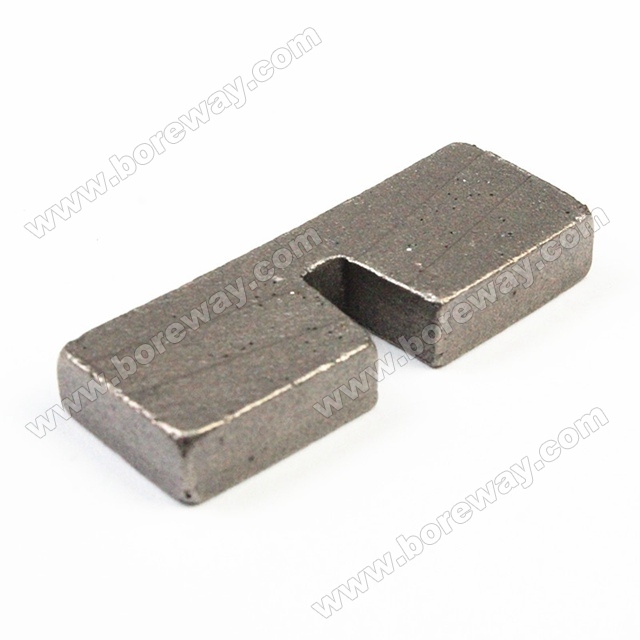

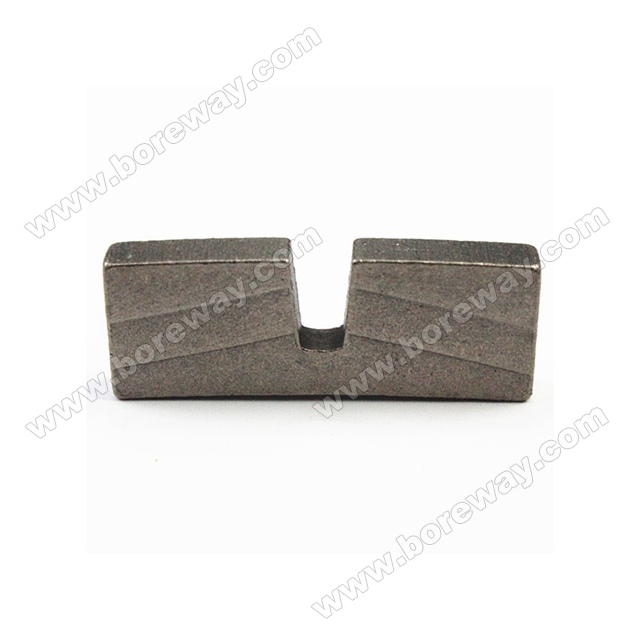

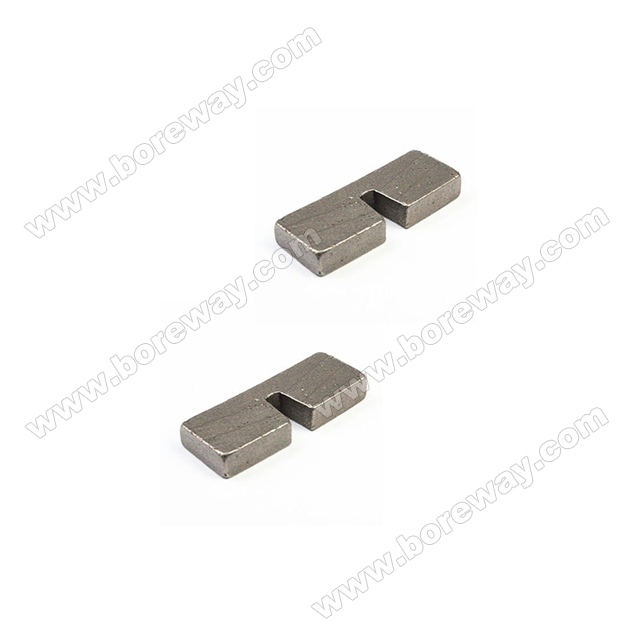

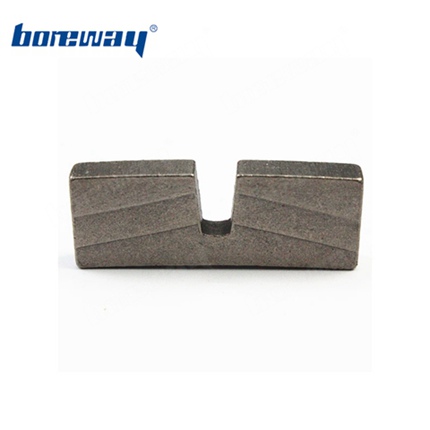

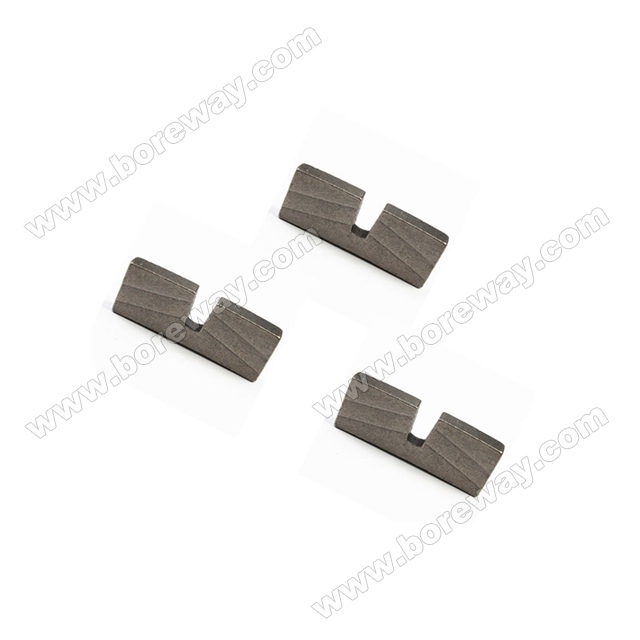

U Slot Granite Segment

Applications:

Silver Welded 350mm U Slot Granite Segment for Diamond Edge Cutting. Suitable for edge cutting of Granite, Sandstone, various hard stone with quartz.

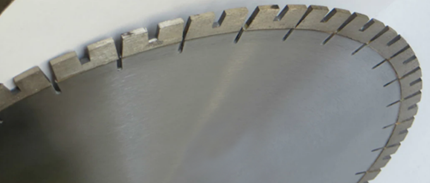

Cutting Effect:

Advantages:

1.Ideal edge trimming quality best .

2.Excellent comprehensive cutting performance.

3.High cutting efficiency, meanwhile, it has a long lifespan.

Related Products:

BWM-MP35T Cold Press Machine BWM-MP60T Cold Press Machine

About us:

We have a strict quality control system:

Packing & Delivery:

Packing:

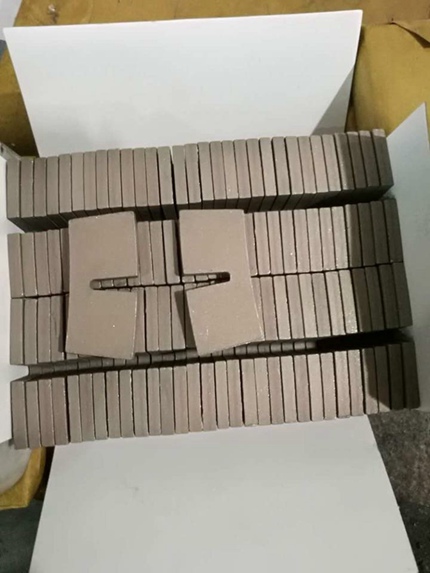

Packing in carton cases:

Delivery:

Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to buy diamond segment, how could we know the quality?

You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2. What could we do if we find your diamond segment are not in good performance?

Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?

Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.
