Your position: Home > Products > Stone Tools > Stone Cutting Tools > Marble Slab Cutting saw blades > Normal Segmented Diamond Saw Blades for Marble Cutting
| Product parameters |
| Name: | Normal Segmented Diamond Saw Blades for Marble Cutting |
| Model Number: | BW-SBM-01 |
| Diameter | 250mm to 800mm |
| Type | Wet Use |
| Hole | 50mm,60mm |
| Usage | cutting Marble, Limestone, Slate, Kinds of Soft Stones without quartz |
| Machine | Bridge Bridge Cutting Machine, Manual Handling Cutting Machine |
| Industry | Diamond tools |
| Performance | Hightly stable |
| Steel Blank Type | Normal or Silent |
| Cutting result | Flat surface and even size |
| Processing Method | Silver Welded |  |

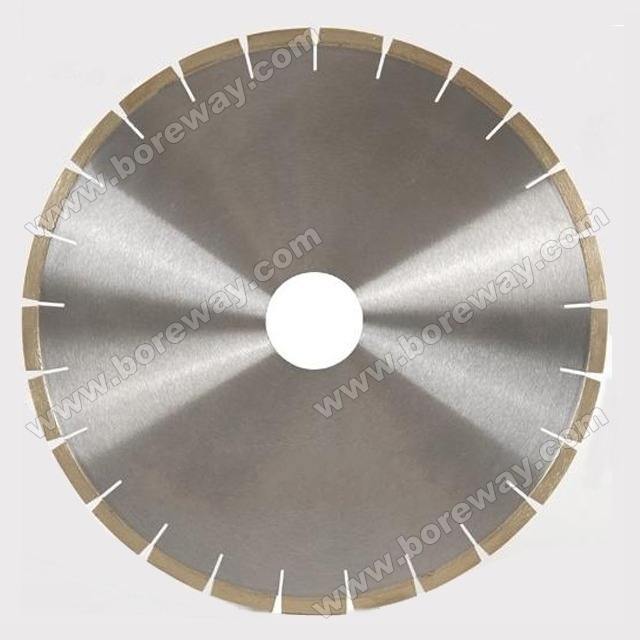

Normal Segmented Diamond Saw Blades for Marble Cutting
Normal Segmented Diamond Saw Blades, 8mm or 10mm segment height for Slab Edge Cutting of Marble, Limestone, Slate, kinds of Soft Stones without quartz.
Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance.
The following are the normal Specifications we are selling:
|
Code No. |
Diameter (mm/Inch) |
Hole (mm) |
Segment Height (mm) |
Segment No. (pcs/set) |
Steel Blank Type |
Welding Method |
|
BW-SBM-01-01 |
250mm(10") |
50/60 |
8/10 |
18 |
Normal or Silent |
Silver Welded |
|
BW-SBM-01-02 |
300mm(12") |
50/60 |
8/10 |
21 |
||
|
BW-SBM-01-03 |
350mm(14") |
50/60 |
8/10 |
24/25 |
||
|
BW-SBM-01-04 |
400mm(16") |
50/60 |
8/10 |
28 |
||
|
BW-SBM-01-05 |
450mm(18") |
50/60 |
8/10 |
32 |
||
|
BW-SBM-01-06 |
500mm(20") |
50/60 |
8/10 |
36 |
||
|
BW-SBM-01-07 |
550mm(22") |
50/60 |
8/10 |
38 |
||
|
BW-SBM-01-08 |
600mm(24") |
50/60 |
8/10 |
42 |
||
|
BW-SBM-01-09 |
625mm(25") |
50/60 |
10 |
44 |
||
|
BW-SBM-01-10 |
700mm(28") |
50/60 |
10 |
50 |
||
|
BW-SBM-01-11 |
725mm(28") |
50/60 |
10 |
50 |
||
|
BW-SBM-01-12 |
750mm(30") |
50/60 |
10 |
52 |
||
|
BW-SBM-01-13 |
800mm(32") |
50/60 |
10 |
46 |
||
|
|
||||||
The above specification is only for Reference, other or special specification can be ordered by customers.
Kindly Noted:
When place order for diamond saw blades please inform the following if possible:
Saw Blade Code No.
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, Need Customer's Drawing)
Silent or None Silent Saw Blade Please indicate
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Marble, Limestone or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
