| Product parameters |
| Name: | 250mm to 800mm Diamond Saw Blade for Marble Cutting |
| Model Number: | BW-SBM-00 |
| Type | Wet Use |
| Hole | 50mm,60mm |
| Diameter | 250mm to 800mm |
| Machine | Bridge Bridge Cutting Machine, Manual Handling Cutting Machine |
| Industry | Diamond tools |
| Steel Blank Type | Normal or Silent |
| Cutting result | Flat surface and even size |
| Usage | Cutting Marble, Limestone, Slate, Kinds of Soft Stones without quartz |
| Processing Method | Silver Welded |  |

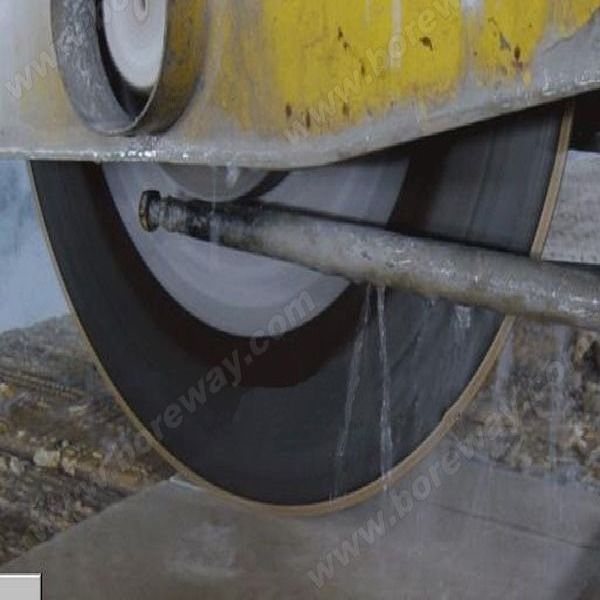

250mm-800mm Diamond Saw Blade for Marble Cutting
Diamond Saw Blades for Slab Edge Cutting of Marble, Limestone, Slate, Kinds of Soft Stones without quartz, Suitable for Bridge Cutting Machine, Manual Handling Cutting Machine & Table Cutting Machine.
Our Diamond Saw Blades are highest Ratio of Performance to Price! Made in China.
Silent & None Silent Saw Blades is Available!
Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance.
The following are the normal Specifications we are selling:
|
Diameter (mm/Inch) |
Hole (mm) |
Segment Height (mm) |
Segment No. (pcs/set) |
Steel Blank Type | Welding Method |
|
250mm(10") |
50/60 | 7/8/10 |
18 |
Normal & Silent |
Silver Welded |
|
300mm(12") |
50/60 | 7/8/10 |
21 |
||
|
350mm(14") |
50/60 | 7/8/10 |
24/25 |
||
|
400mm(16") |
50/60 | 8/10 |
28 |
||
| 450mm(18") | 50/60 | 8/10 |
32 |
||
|
500mm(20") |
50/60 | 8/10 |
36 |
||
|
550mm(22") |
50/60 | 8/10 |
38 |
||
|
600mm(24") |
50/60 | 8/10 |
42 |
||
|
625mm(25") |
50/60 | 8/10 | 44 | ||
|
700mm(28") |
50/60 | 8/10/12 |
50 |
||
|
725mm(28") |
50/60 | 8/10/12 | 50 | ||
|
750mm(30") |
50/60 | 8/10/12 |
52 |
||
|
800mm(32") |
50/60 | 8/10/12 |
46 |
||
 |
|||||
The above specification is only for Reference, other or special specification can be ordered by customers.
Kindly Note：
Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
When place order for saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Silent or None Silent Saw Blade
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
If only order segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)
Quantity NO. (how many sets segments)
Machine Powder/RPM, Feed Speed, Normal Cutting Depth (If possible)
Expected Shipping Date
Special Requirements (If)
