| Product parameters |
| Name: | Metal Bond Diamond Pad for EZ Change of HTC Grinding Head |
| Model Number: | BW-DPP-F-C04 |
| Diameter: | 18mm |
| Grit No.: | #30, #40, #60, #80, #120, #150, #200 |
| Type: | Abrasive Disc |
| Segment shape: | 2 Round Segmented |
| Segment No.: | 2 Pcs |
| Machine: | HTC grinding machines |
| Industry: | Concrete Grinding Tools |
| Application: | For Concrete floor restoration professional |
| Base Specification: | Standard for HTC grinding head |
| Bond Type: | Soft, Medium, Hard. |
| Grinding result: | Flat surface and even size |  |

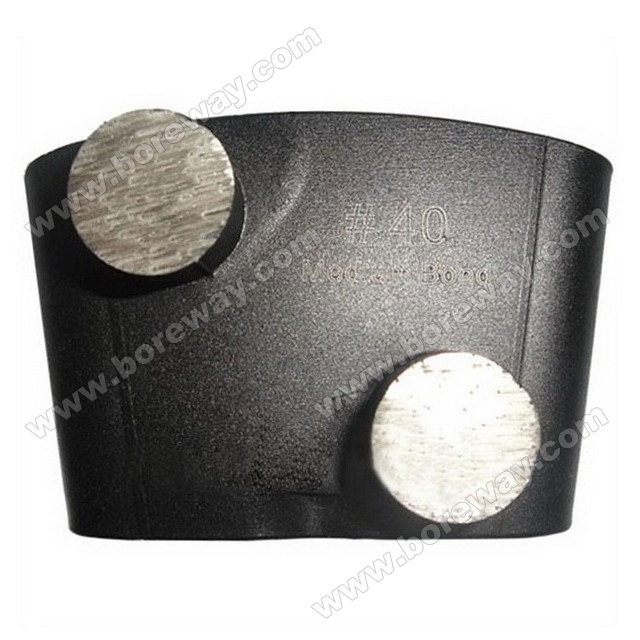

Metal Bond Diamond Pad for EZ Change of HTC Grinding Head
2 Round Segmented Type
Designed specifically for Concrete floor restoration professional, for quick removal of any materials, bonds Hard, Medium, or Soft available for kinds of concrete, used on EZ change of HTC grinding machines.
Round segment is less aggressive and leave a more subtle scratch pattern. Best for natural stone and terrazzo applications. Using round segment often makes for an easier transition into resin polishing pads.
Bond: Soft,Medium,Hard.
The following are the normal Specifications we are selling:
| Code No. | Segment Size | Segment No. | Grit No. | Base Specification |
| BW-DPP-F-C04 | Dia.18mm, Height 12mm | 2 | #6, #16, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200 | Standard for HTC grinding head |
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
About EZ Change
No more seized, rusty or broken screws; in fact no screws are needed at all. EZchange is a revolutionary system for lighting-fast tools changes, and as the name indicates, it is extremely easy to change tools. The system consists of wings for metal-bond and Resin-bond diamond tools and a new kind of metal holder. You use the same holder for every type of HTC tool in the EZchange system. No need to have metal disks for all your various sets of diamond tools!
Position the tools in the compartments on the holder and with a light tap with a rubber hammer you’re ready to grind or polish a floor or remove coatings. The EZchange system is available for all HTC grinding machines.
The parts---The new tool holder and wing, the parts in the new EZ change™ system.
The perfect fit---Insert the wing in the holder tracks. There is only one way to do this.
The safe system---The tool is now prevented from being ejected forwards or backwards, the design si so smart.
The easy system---A light tap with a rubber hammer holds the tool firmly in place. You are ready for work!
The freedom of choice---You attach either 3 tools for a half set or 6 tools for a full set depending on the type of floor and desired removal rate.
