| Product parameters |
| Name: | Horizontal Cutting Diamond Saw Blades for Granite and Marble |
| Model Number: | BW-HCB-00 |
| Type | Wet use only |
| Segment Height | 8mm,10mm |
| Core Thickness | 2.8mm,7.5mm |
| Segment Wide | 5mm,5.5mm |
| Bore Size | 50mm,60mm |
| Usage | Cutting Granite and Marble |
| Cutting result | Flat surface and even size |
| Welding Method | Silver Welded |
| Performance | Hightly stable |
| Advatage | Good sharpness and Long lifespan |  |
Horizontal Cutting Diamond Saw Blades for Granite and Marble

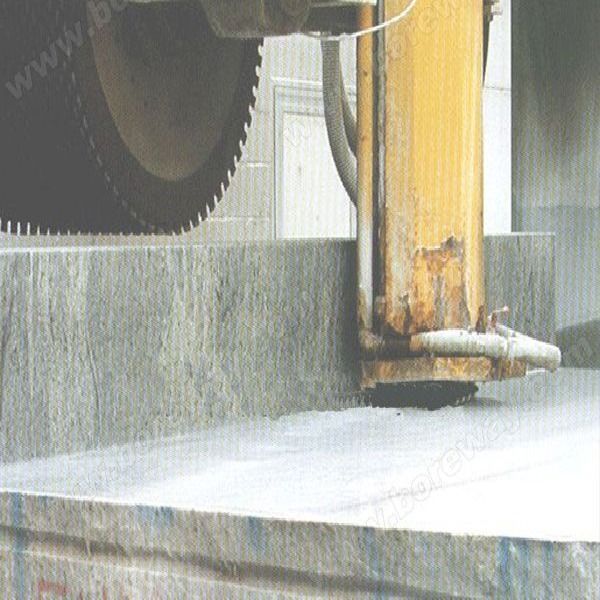

Used for granite multi-saw blades cutting machine and marble block cutting machine, to cut the slab from the block bottom edge after the vertical cutting of slabs.
Wet use only, Fast & Easy cutting, long life, perfect performance.
The following are the normal Specifications we are selling:
|
Diameter (mm) |
Segment Size (L x W x H, mm) |
Segment No. (pcs) |
Core Thickness (mm) |
Bore Size (mm) |
|
| For Granite | For Marble | ||||
|
350 |
40x5x10 |
40x5x8 |
24 |
2.8/7.5 |
50/60 |
|
400 |
40x5x10 |
40x5x8 |
28 |
2.8/7.5 |
50/60 |
|
450 |
40x5.5x10 |
40x5.5x8 |
32 |
2.8/7.5 |
50/60 |
| 500 | 40x5.5x10 | 40x5.5x8 | 36 |
2.8/7.5 |
50/60 |
The above specification is only for Reference, other or special specification can be ordered by customers.
Kindly Noted：
When place order for diamond concave saw blades please inform the following if possible:
Saw Blade Code No.
Diameter (Inch or mm)
Bore Size (Inch or mm)
With or Without Flange Holes(4 holes)
Use of Saw Blade (For Granite or other material)
Quantity NO. (How many pcs blades your would like to order)
Machine Powder/RPM (If possible)
Expected Shipping Date
Special Requirements (If)
