Half PCD Two Pins Redi Lock Blank PCD Diamond Grinding Plates For Epoxy Coating Removal

Product parameters
Name: Half PCD Two Pins Redi Lock Blank PCD Diamond Grinding Plates For Epoxy Coating Removal
Model Number: BW-TP-PCD1-MET-RH01
Brand: Boreway
Segment Grit: 16-270# etc.
Application: Concrete and Terrazzo Floor
Segment Size: Single Rhombus And PCD Segment
Connection: Two Pins Redi Lock Connection
Machine: Two Pins Quick Connceting Grinding Machine

Product Description


 Descriptions:

Half PCD Two Pins Redi Lock Blank PCD Diamond Grinding Plates For Epoxy Coating Removal

Half PCD Two Pins Diamond Grinding Plates used on Universal floor grinding machine. Designed for concrete floor restoration, epoxy, glue and any other concrete floor coating removal.

Half PCD Two Pins Diamond Grinding Plates used for removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor.
Half PCD Two Pins Diamond Grinding Plates
Half PCD Two Pins Diamond Grinding Plates
Specifications:

The following are normal Half PCD Two Pins Diamond Grinding Plates:

Type: Abrasive Shoes
Name: Half PCD Two Pins Diamond Grinding Plates
Segment Grit: 16-270#,etc

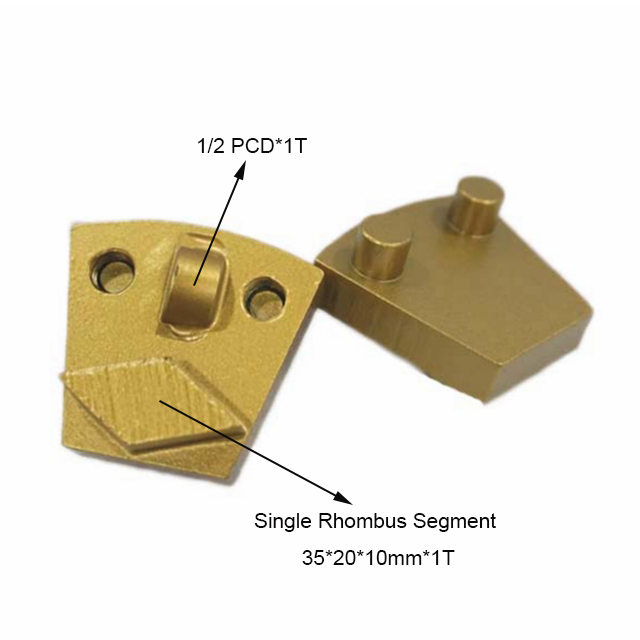

Size: 35*20*10mm*1T + 1/2 PCD*1T

Material:

Diamond And Metal Powder
And PCD And Metal Blank
Application: Concrete and Terrazzo Floor
Connection:

Two Pins Redi Lock Connection

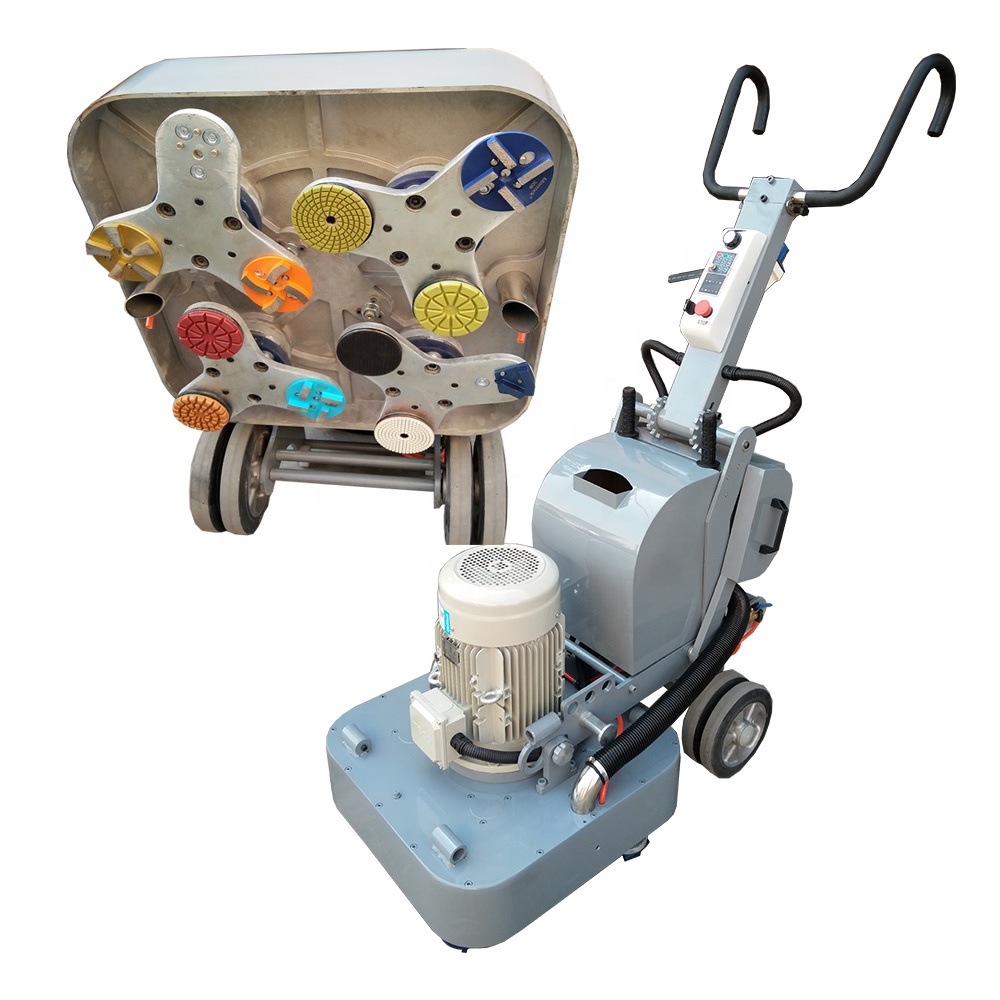

Machine:
Two Pins Quick Connceting
Grinding Machine
Bond:
Soft Bond, Medium Bond, Hard Bond


Choose Bond:

Half PCD Two Pins Diamond Grinding Plates:

1. Coarse grit: 16#,24#,30#,36#.

Could be used for un-even concrete floors , rough grinding preparation on floor or old floor renovation.

2. Medium grits: 46#, 50/60# , 60/80#, 100#

Could be used for all kinds of concrete and terrazzo floors , grinding preparation on floor or old floor renovation.

3. Fine grits: 120#, 150#, 180#, 200#, 270#

Could be used for all kinds of concrete and terrazzo floors, find grinding preparation on floor or old floor renovation before polishing.

Choosing between soft, medium, and hard bonds.

1) Soft Bond (Yellow) – The metallic powder in the sintered segment wears away quickly releasing dull diamond crystals exposing new abrasive crystals to cut efficiently. Best used on hard surfaces.

2) Medium Bond (Red) – A metal bond strength right between that of soft and hard bonds.

3) Hard Bond (Black) – The bond of the metallic powder in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.

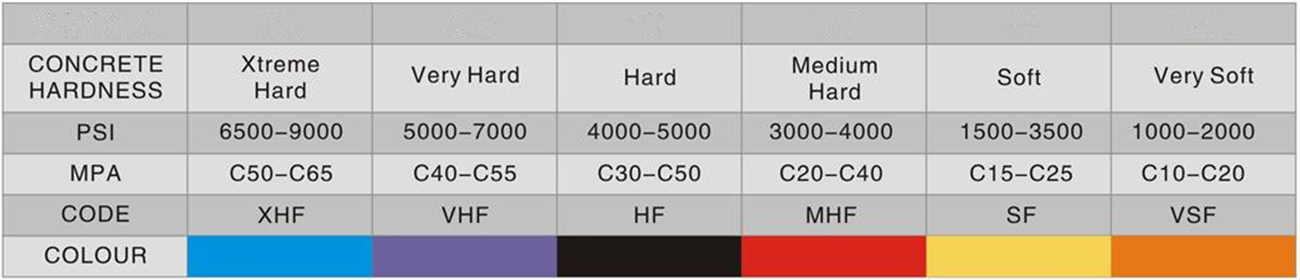

Color:

Diamond Grinding Block

Note: special logo, segment size and shapes, installation are available by customer's request.
Single Segment Two Pins Grinding Shoes

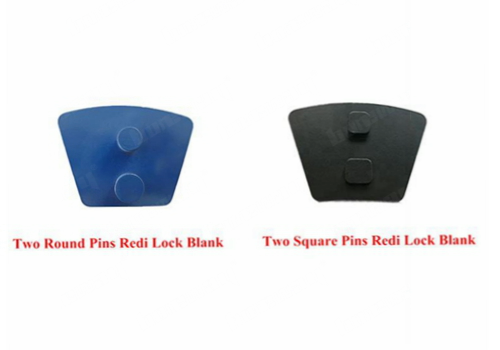

Connection Holes:

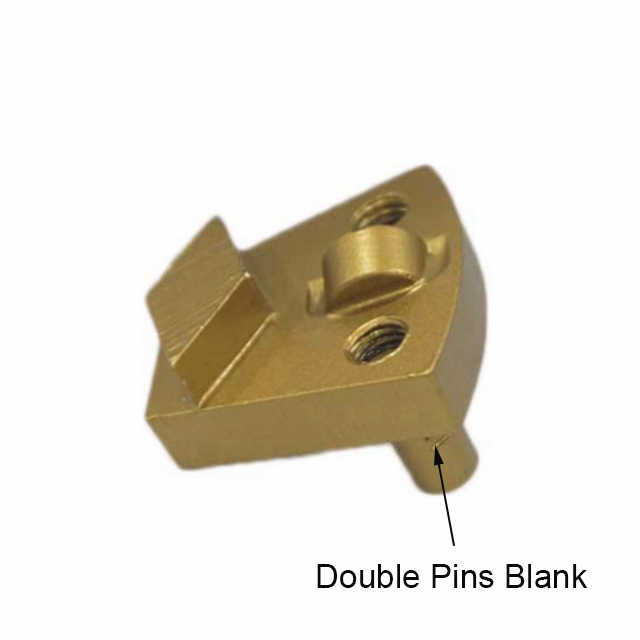

1. Two Round Pins Redi Lock Blank

2. Two Square Pins Redi Lock Blank

Advantages:

1) Lasts much longer than competitive products and will not glaze.

2) Combination of superior diamonds and an extremely durable and unique matrix.

3) Removes stock quickly and efficiently to greatly reduce your product and labor cost

4) Half PCD Two Pins Diamond Grinding Plates amazing results on most types of concrete from soft to very hard.

Features:

Half PCD Two Pins Diamond Grinding Plates excellent wear resistance, lower cost, better surface finish etc.

Applications:

Half PCD Two Pins Diamond Grinding Plates suitable for general (concrete,stone) grinding use while mostly they are used for paint, glue, epoxy removal and floor coating, high quality and high efficiency, long lifespan.

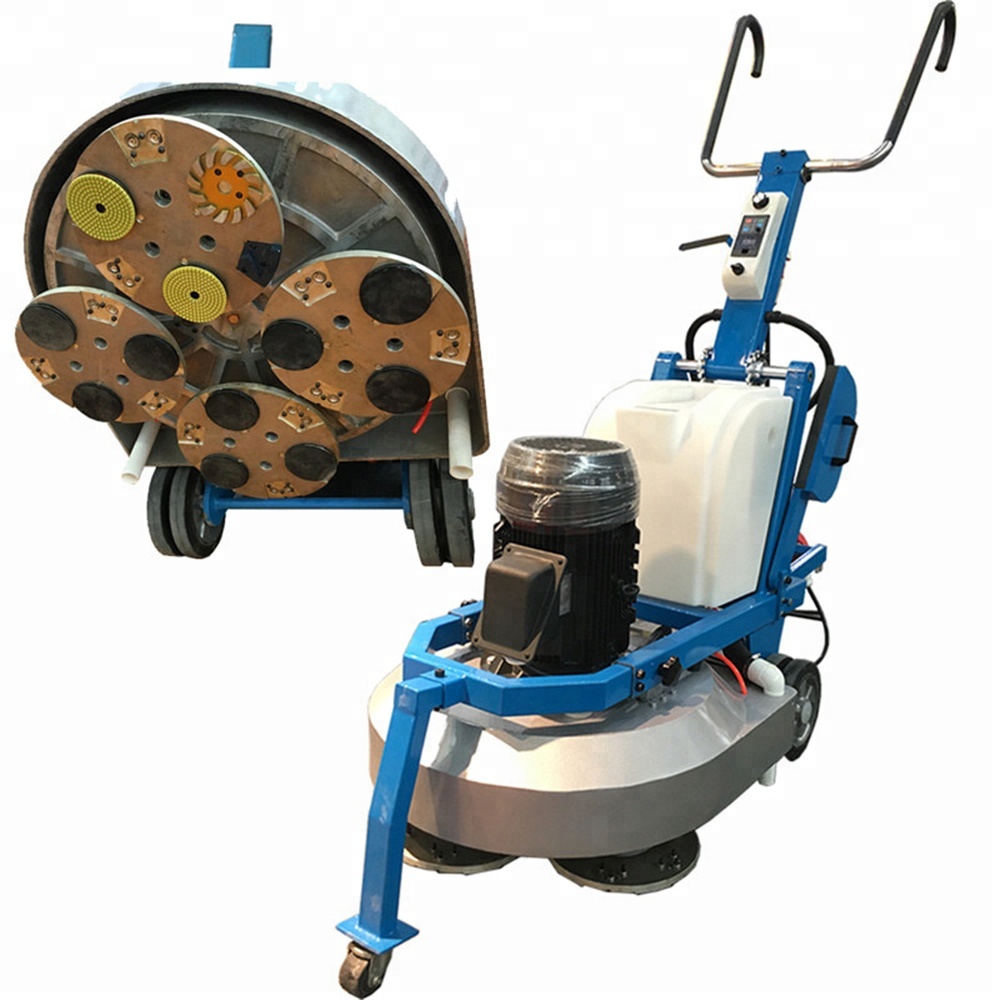

Single Segment Two Pins Grinding Shoes

 Single Segment Two Pins Grinding Shoes

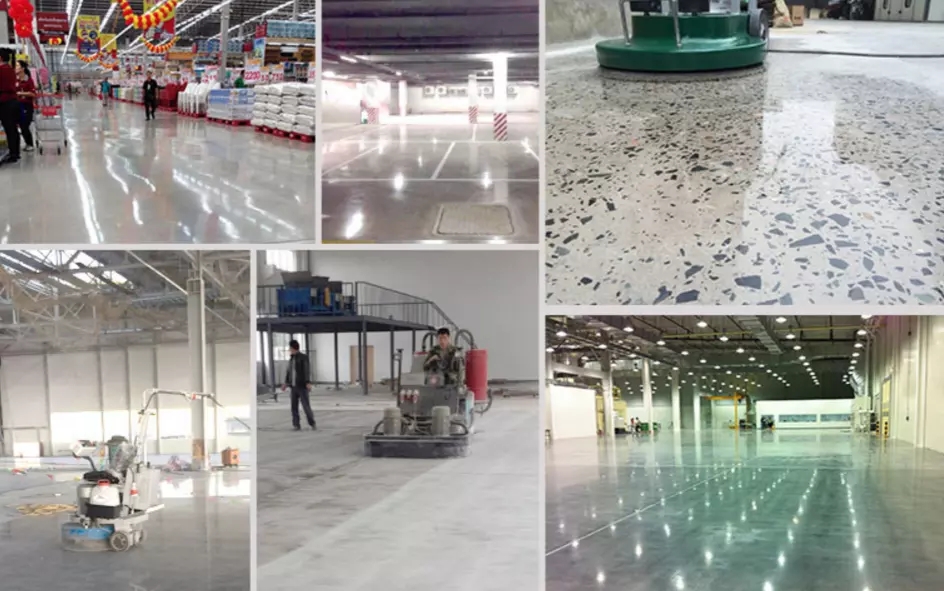

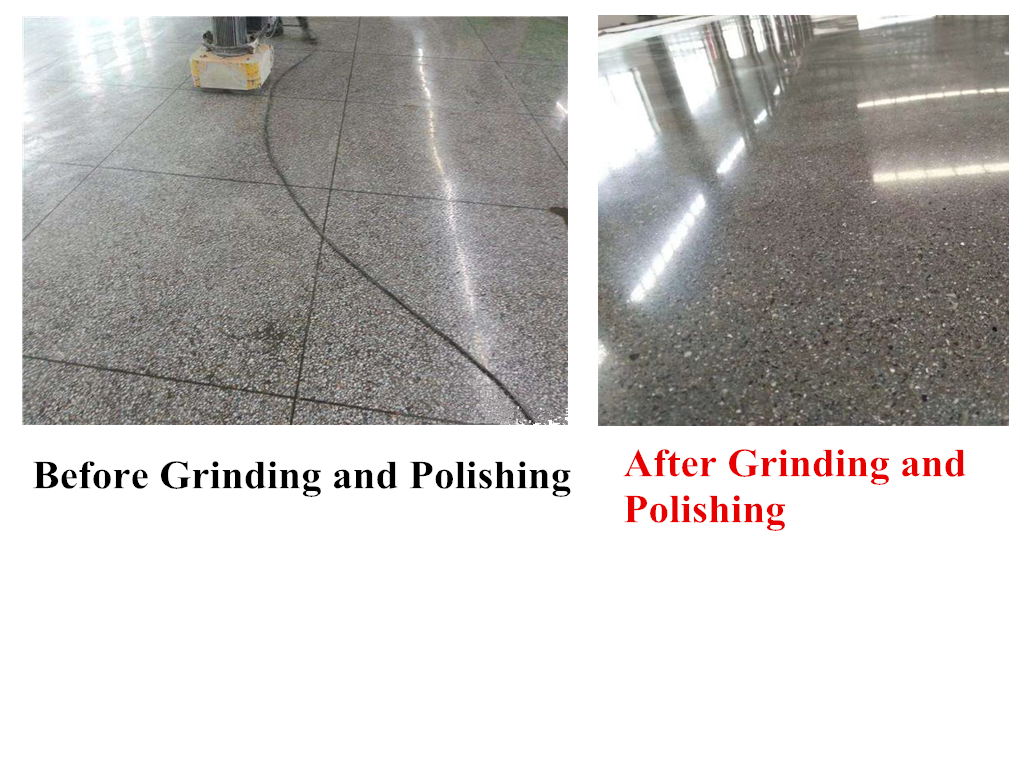

Grinding Effect:

Half PCD Two Pins Diamond Grinding Plates Grinding Effect:

Single Segment Grinding Block

Single Segment Two Pins Grinding Shoes
