Graphite Plates for Diamond Sintering Mould

Add / Delete to Basket

Product parameters

Name:	Graphite Plates for Diamond Sintering Mould
Model Number:	BW-SM-T0
Technique:	Sintering Mold
Application:	Diamond Tools
Dimensions:	Determined by the size of customers
Resistance (μΩ.m):	13 15
Bulk Density (g/cm³ ):	≥1.7
Porosity (%):	Plus-minus 0.02
Compressive Strength:	≥ 40Mpa
Type:	Prefab
Material:	Graphite
Ash Contents:	≤ 0.005%
Transverse Strength:	≥ 20Mpa

Product Description

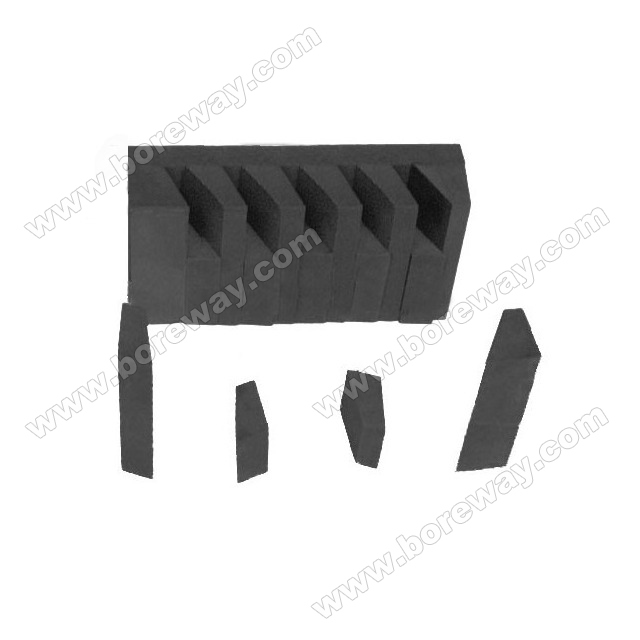

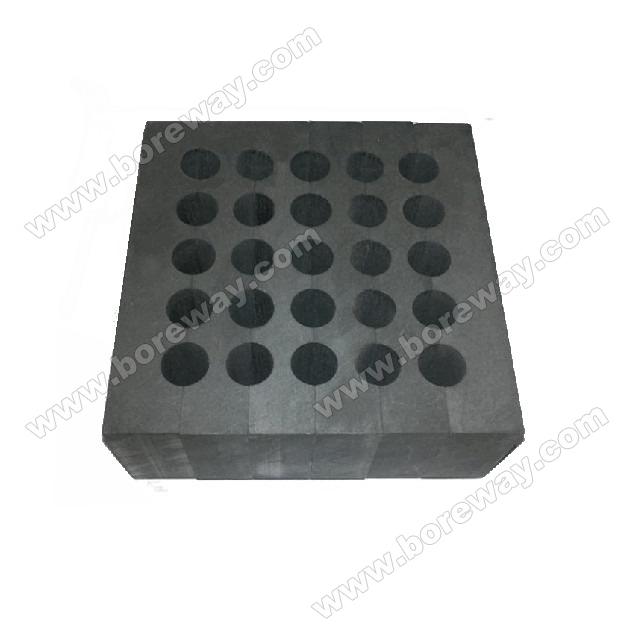

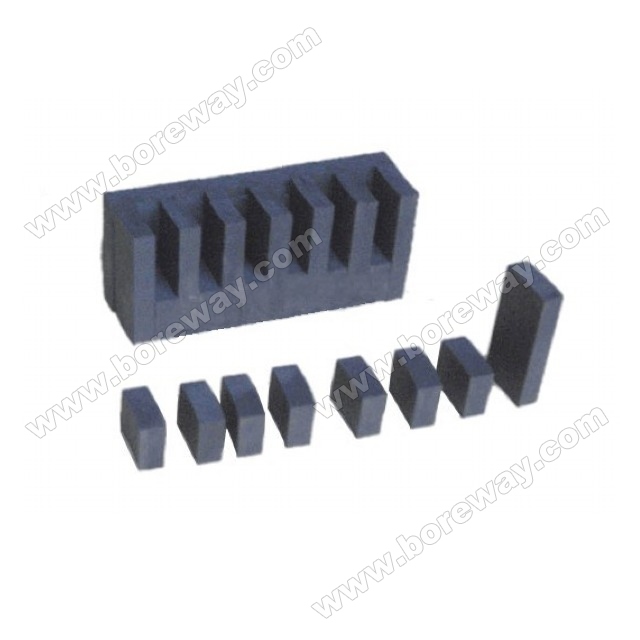

Graphite Plates for Diamond Sintering Mould

Specializing in the production of diamond sintering graphite mold:

1. The diamond saw sintering mold.

2. diamond drill sintering mold (integral, modular, fan-shaped teeth, straight teeth).

3. Grinding wheel, disc, drum, trimming round moldseries.

4. series of the rope saw beads graphite mold.

5. the shaped graphite mold series.

6. professionals and can be designed according to customer requirements or samples to the the drawings processing of various graphite products.

7.Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia.etc.more than 20 different countries.In these overseas markets,our blades enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.

We offer total solutions of highest quality for diamond sintering mould, diamond wire saw graphite mould, graphite mould used for diamond sintering machine, diamond tools mould, graphite strips, graphite plates, graphite mould for diamond Drilling saw, rope saw, care bit, etc.

China high purity graphite materials with 3 times impregnated and 4 times baked, Imported graphite material could be used depend on applications and customers' specifications.

The following are the normal Specifications we are selling:

Material	Type	Ash Contents	Bulk Density g/cm³	Transverse Strength Mpa	Compressive Strength Mpa	Resistivity u Ω·m


High Purity Graphite	S1	≤0.005%	≥1.7	≥20	≥40	15
High Purity Graphite	S2	≤0.005%	≥1.75	≥27	≥55	15
High Purity Graphite	S3	≤0.005%	≥1.77	≥28	≥58	13
High Purity Graphite	S4	≤0.005%	≥1.82	≥33	≥68	13
High Purity Graphite	S5	≤0.005%	≥1.8	≥30	≥65	13

Our Quality Control Cell, maintained by qualified personnel, guarantees quality & reliability of production processes as well as the raw materials .

The above specification is only for Reference, other or special specification can be ordered by customers.

we can manufacture products upon clients' needs.
