Your position: Home > Products > Concrete Tools > Concrete Grinding & Polishing Tools > Grinding Cup Wheel > Double Rows Diamond Grinding Cup Wheels
| Product parameters |
| Name: | Double Rows Diamond Grinding Cup Wheels |
| Model Number: | BW-GCW-C02 |
| Diameter: | From 105mm to 180mm |
| Segment Height: | 5mm |
| Shape: | Cup-Shaped |
| Grit No.: | From #6 to #120 |
| Type: | Dry or Wet Use |
| Base: | Steel Base with Water Hole |

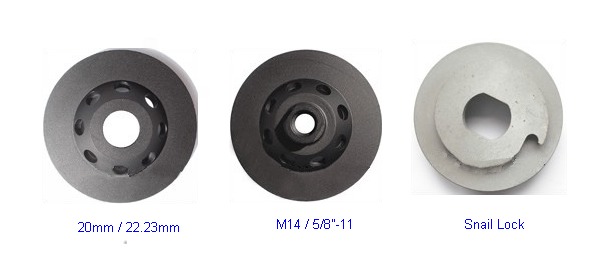

| Connection: | 5/8"-11,20mm,22.23mm,M14 |
| Machine: | Right-angle grinder |
| Industry: | Diamond tools |
| Usage: | Grinding all types of Concrete |
| Bond Type: | Soft, Medium, Hard. |  |

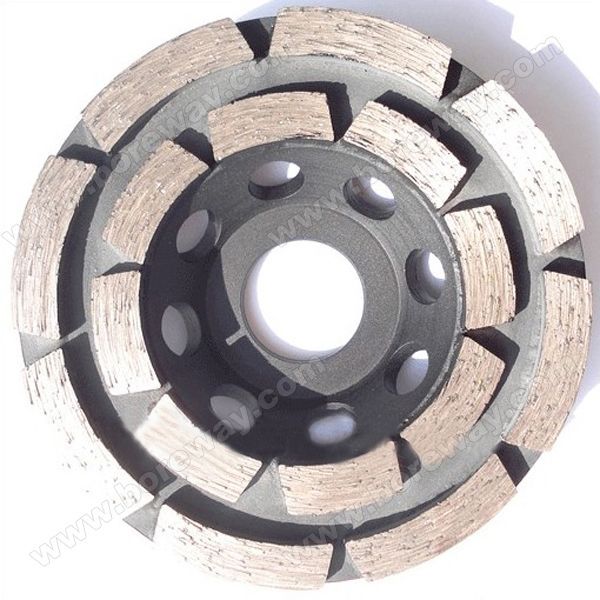

Diamond Grinding Cup Wheels - Double Rows
Double Rows Diamond Grinding Cup Wheels for grinding all types of Concrete. It contains a higher diamond count and feature venting holes for fast, rough, dry or water-cooling grinding with long wheel life. It is ideal for surface preparation, edge blending, smooth shaping, finishing, de-burring and tilt wall finishing of masonry surfaces.
May be used on most right-angle grinders.
Dry or Wet Use!
Bond Type: Soft, Medium, Hard.
Rough: #6, #16 Medium: #30, #60 Smooth: #120
| Code No. | Diameter | Connection | Segment Height | Segment No. | Base | Grit |
| BW-GCW-C02-01 | 105mm(4") | 5/8"-11 20mm 22.23mm M14 |
5mm | 8/8 | Steel Base with Water Hole 12-25mm thickness |
Rough Medium Smooth |
| BW-GCW-C02-02 | 115mm(4.5") | 9/9 | ||||
| BW-GCW-C02-03 | 125mm(5") | 9/10 | ||||
| BW-GCW-C02-04 | 150mm(6") | 10/10 | ||||
| BW-GCW-C02-05 | 180mm(7") | 12/12 |
The above specification & photos is only for Reference, other specification or design can be ordered by customers.
Please use the following before operating the grinding:
Kindly Noted ：
When place order for Diamond Grinding Cup Wheels please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Use of Grinding Cup Wheels (For Granite, or marble, or limestone, or Sandstone. or other material)
Code No. of Diamond Grinding Cup Wheels
Grit No. (Rough, Medium, or Smooth)
Quantity NO. (How many pcs)
Expected Shipping Date
Detailed Description with Photo (If your product not available to see from the above)
Special Requirements (If)
