4 Inch Diamond Concrete Grinding Wheel With Thread Holes For Concrete Floor Renovation

Product parameters
Name: 4 Inch Diamond Concrete Grinding Wheel With Thread Holes For Concrete Floor Renovation
Model Number: BW-GCW4-H05
Brand: Boreway
Bore: M14, 22.23, 5/8
Diameter: 4 Inch (D100mm)
Surface Finishing: Color Painting
Size: Five Hexgon Segments
Machine: Angle Grinder or General Grinding Machine
Bond: Soft Bond, Medium Bond, Hard Bond

Product Description


 Descriptions:

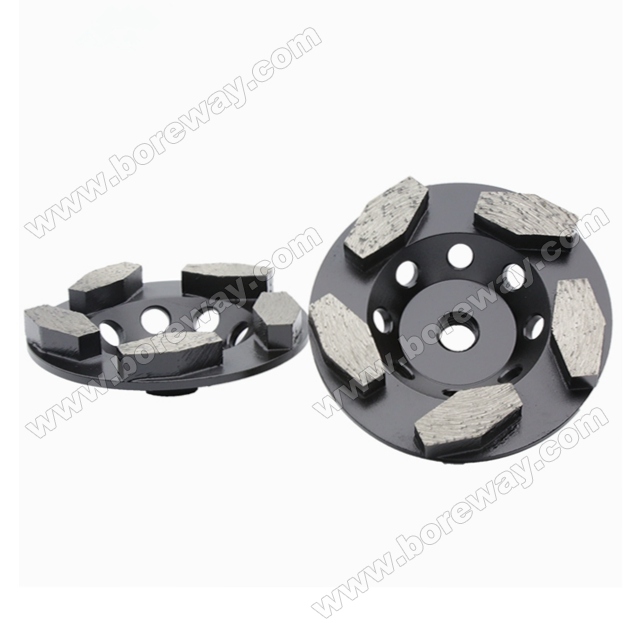

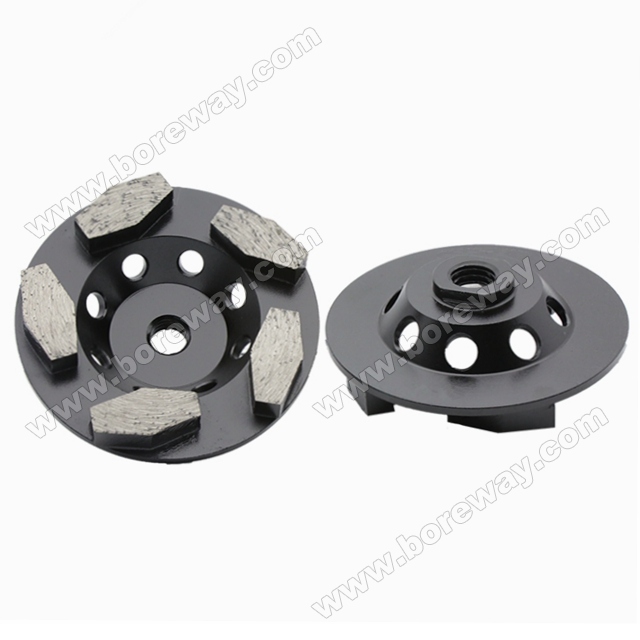

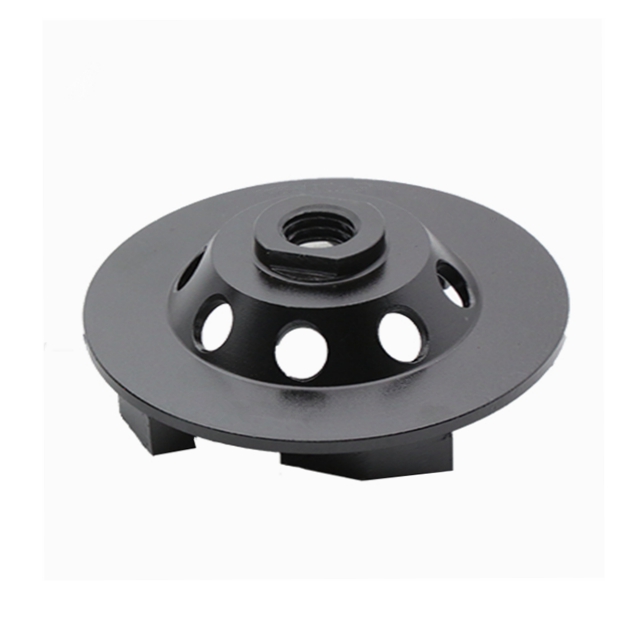

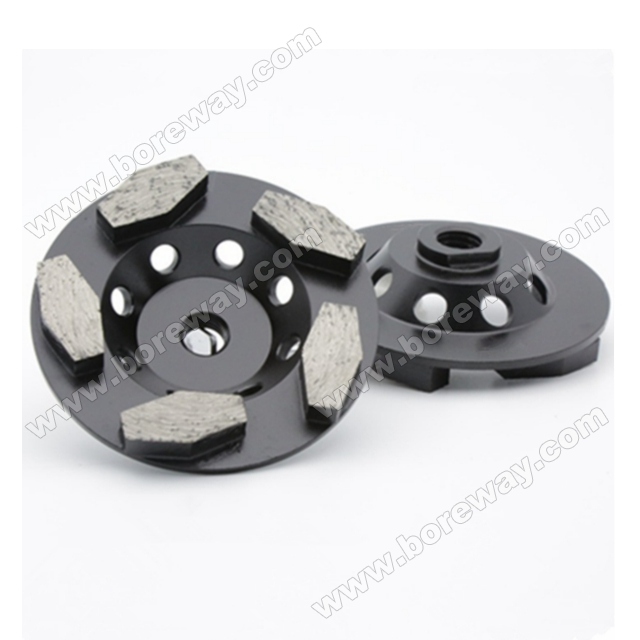

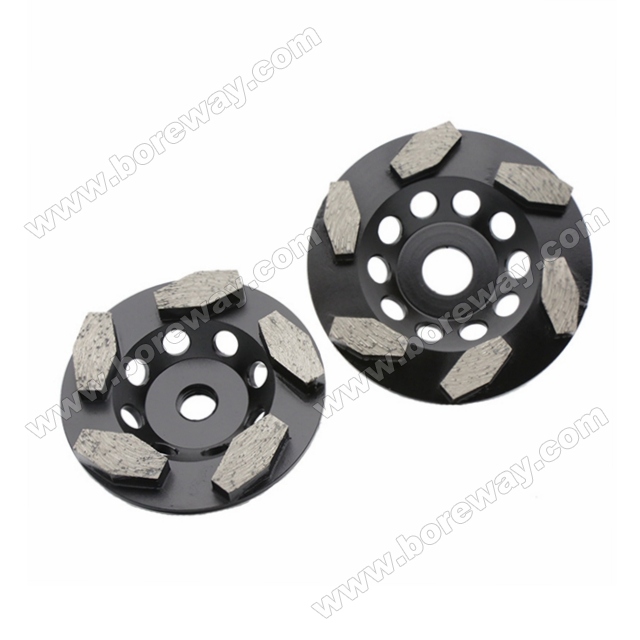

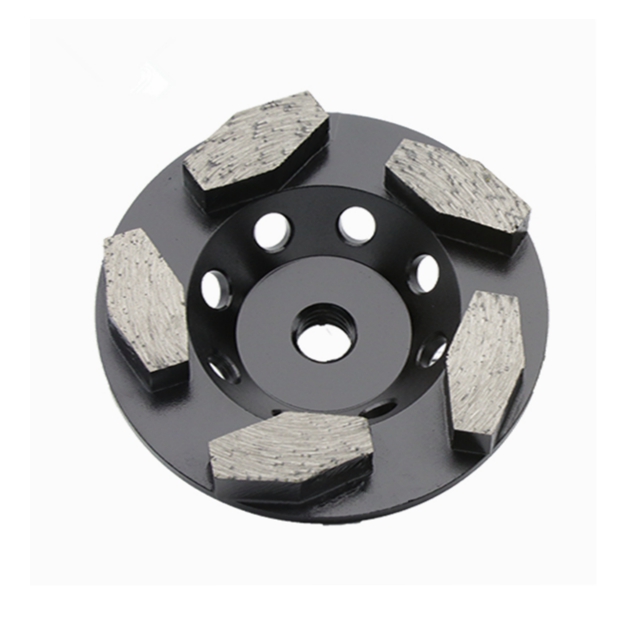

4 Inch Diamond Concrete Grinding Wheel With Thread Holes For Concrete Floor Renovation

Using 4 Inch Diamond Grinding Wheel is the most efficient way to grind from marks and imperfections in concrete, as well as masonry, stone and other vonstruction materials.

4 Inch Diamond Grinding WheelThis single row cup whell is designed for fast removal rates and long lifespan.
4 Inch Diamond Grinding Wheel
4 Inch Diamond Grinding Wheel
4 Inch Diamond Grinding Wheel

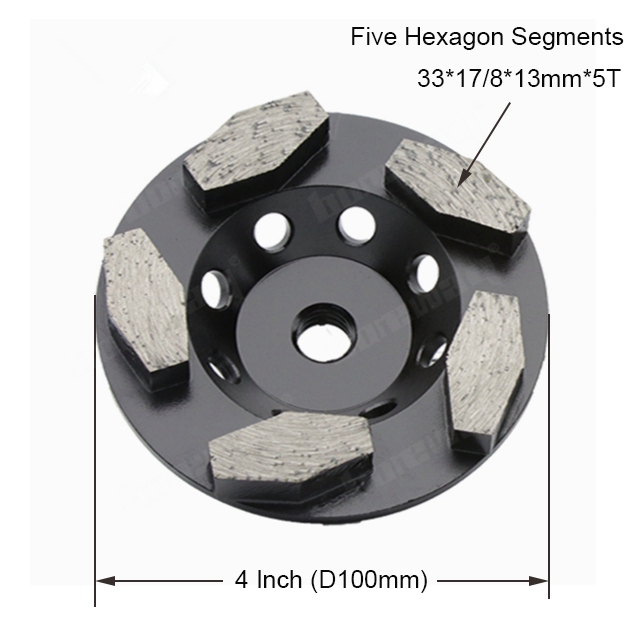

Specifications:

The following are normal specifications 4 Inch Diamond Grinding Wheel:

Brand:  Boreway
Size:  Five Hexgon Segments
Bore:  M14, 22.23, 5/8"-11
Diameter:  4 Inch (D100mm)
Segments Size:
33*17/8*13mm*5T
Surface Finishing:  Color Painting
Grits:  Coarse, Medium, Fine
Material:  Diamond And Metal Powder
Machine:
Angle Grinder or
General Grinding Machine
Bond:  Soft Bond, Medium Bond, Hard Bond


Advantages:

1. 4 Inch Diamond Grinding Wheel venting holes for fast, dry or wet grinding with long life.

2. Grinding segments with heat treated steel bodies which provide increases durability and wheel life.

3. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.

Features:

1.High security and durable.

2.Long lifespan for diamond grinding wheel.

3.There are various specifications can be choose.

4.4 Inch Diamond Grinding Wheel to make surface more smoothly.

5. If you have any interested in our products, please contact us, we can give you the low price and good quality products.

Applications:

4 Inch Diamond Grinding Wheel application for grinding concrete, hard granite, marble, engineered stone, etc

Applied machine: Designed for most of angle grinders.

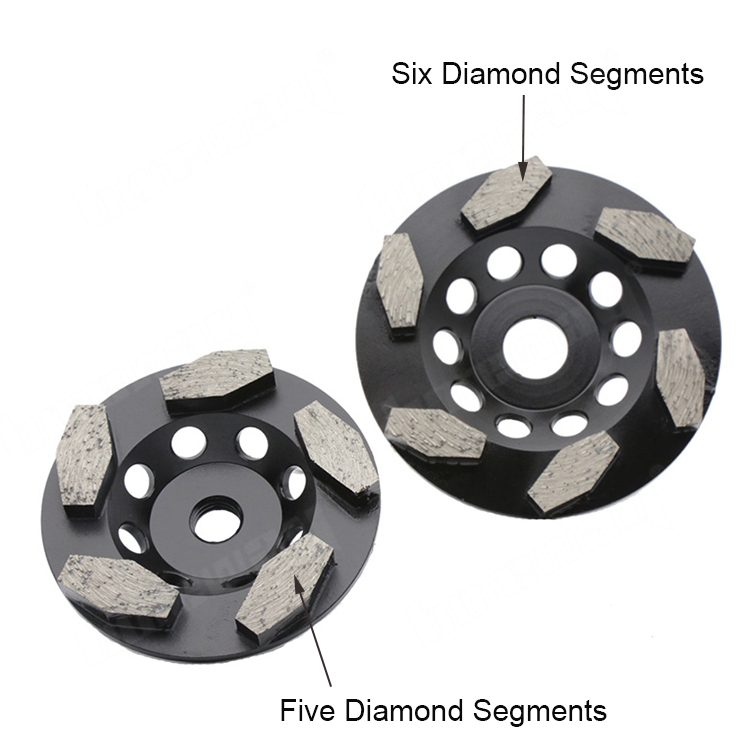

5 Inch Diamond Grinding Cup Wheel

5 Inch Diamond Grinding Wheel

Choice Grit:

4 Inch Diamond Grinding Wheel metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.

1) Coarse grit: 16#,24#,25#,30# etc.

Could be used for un-even concrete floors, rough grinding preparation on floor or old floor renovation.

2)Medium grits: 36#, 50/60# , 60/80# etc.

Could be used for all kinds of concrete and terrazzo floors, grinding preparation on floor or old floor renovation.

3) Fine grits: 80/100# , 100/120#, 120/150#, 200# etc.

Could be used for all kinds of concrete and terrazzo floors, find grinding preparation on floor or old floor renovation before polishing.

Grinding Effect:

4 Inch Diamond Grinding Wheel Grinding Effect:

5 Inch Diamond Grinding Wheel
