Diamond standard stubbing wheel

Add / Delete to Basket

Product parameters

Name:	Diamond standard stubbing wheel
Model Number:	BW-DSSB
Diameter	50mm-100mm
Segment height	20mm-40mm
Inner hole	10mm or 50mm
Connection	Φ10-2+2Hole or Φ50-3+3Hole
Grit No.	30/40#,60#,100#,200#
Machine	CNC machine and radial arm machine
Specification of rod	D37×90L×1/2

Description

Standard stubbing wheels are used for surface milling and material removal for various

granite and marble stone on router machines.Their merits are high efficiency of

production,accuracy in shape and size.

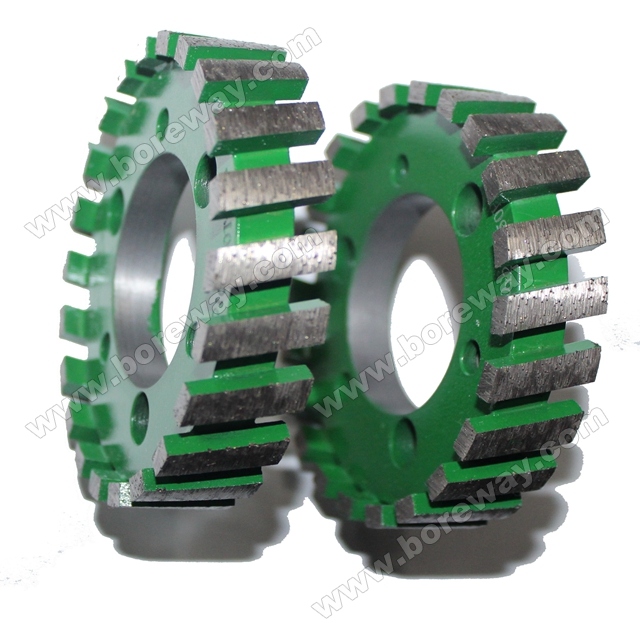

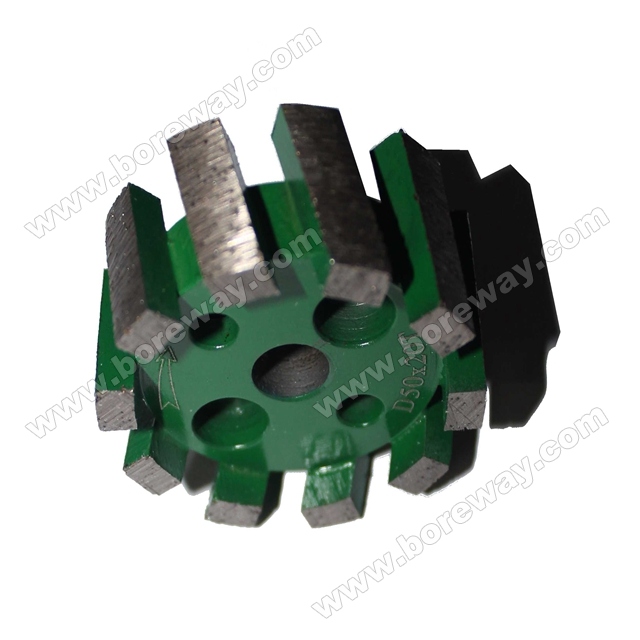

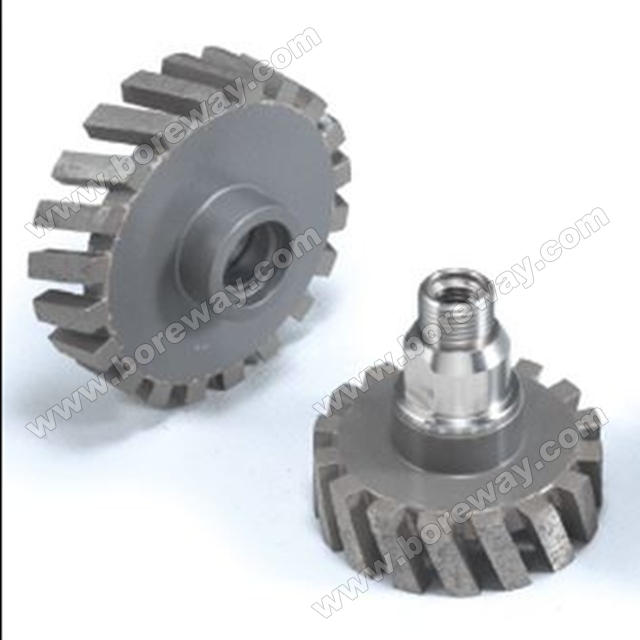

Diamond standard stubbing wheel

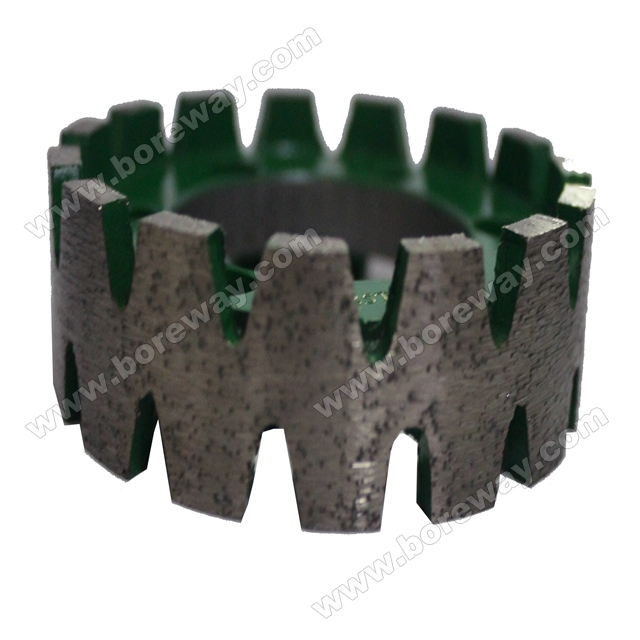

The wheel segment of shape including continuous tooth and tooth points.And the

diamond of the continuous tooth is 90mm, the follow specification is for tooth points

diamond standard stubbing wheel:

Product code	Diameter (mm)	Segment height (mm)	Inner hole (mm)	Connection	Grit No.	Machine	Specification of rod
BW-DSSW-01	50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and radial arm machine	D37×90L×1/2"G
		30
		40
BW-DSSW-02	86	20	50	Φ50-3+3Hole			D75×78L×1/2"G
		30
		40
BW-DSSW-03	100	20		Φ50-3+3Hole
		30
		40

The products we supply is not include the rod of diamond standard stubbing wheel. Contact with us if you need it.

The about specifications is only for reference, other or special specification can be order by customers.

When order diamond standard stubbing wheels please Confirm.

Code No. of router bit ( BW-DSSW)
Type(?)

Specification of diamond standard stubbing wheel (diameter? Segment height ? Inner hole ?connection ?Grit? )

The rod of diamond standard stubbing wheel(long rod or short rod?)

Quantity(?)
