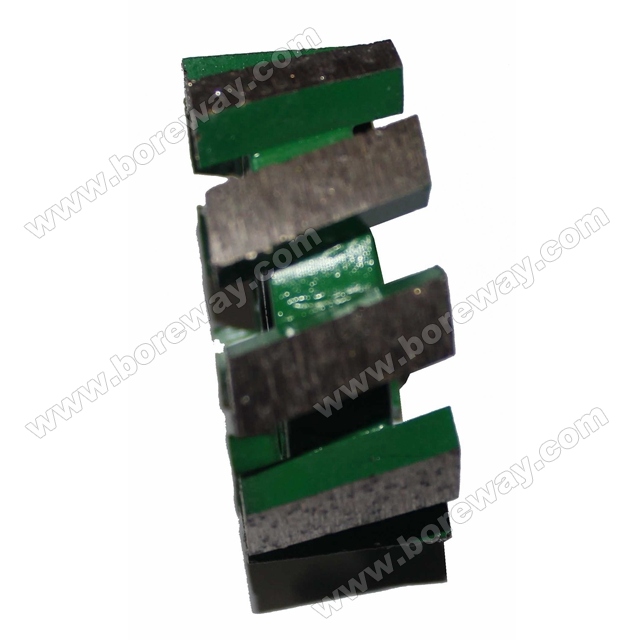

D50x20Tx10H Diamond Gauging Stubbing Wheels

Add / Delete to Basket

Product parameters

Name:	D50x20Tx10H Diamond Gauging Stubbing Wheels
Model Number:	BW-DSSW-01(20T)
Product name	D50x20Tx10H Diamond Gauging Stubbing Wheels For Granite Slab
Specification	D5020T10H
Diameter	50mm
Segment height	20mm
Connection	1/2
Inner Hole	10mm
Application	For fast grinding the stone countertop and water hole
Machine	CNC machine
Use	Wet Use

1.D50x20Tx10H Diamond Gauging Stubbing Wheels are used for surface

milling and material removal for various granite and marble stone on CNC

or other machines.Their merits are high efficiency of production,accuracy

in shape and size.

2.It is be used before using the diamond proliing wheels.

3.It has high efficiency efficiency,long lifespan and good stable.

Normal size of diamond standard stubbing wheel:

Product code	Diameter (mm)	Segment height (mm)	Inner hole (mm)	Connection	Grit No.	Machine	Specification of adapter
BW- DSSW-01	50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and arm radial machine	D37×90L×1/2"G
		30
		40
BW- DSSW-02	86	20	50	Φ50-3+3Hole			D75×78L×1/2"G
		30
		40
BW- DSSW-03	100	20		Φ50-3+3Hole
		30
		40

The products we supply is not include the adapter of diamond standard stubbing wheel.

Other more sizes could be customized after confirmation.

When order diamond standard stubbing wheels please confirm.

1.Code No. of diamond drain board wheel( BW-DSSW-01(20T))

2.Specification of diamond standard stubbing wheel (diameter ? Segment height ? Inner hole ?connection ?Grit? )

3.Do you need the adapter of the standard stubbing wheel?What size do you want?

4.Quantity(?)
