Diamond granite chamfering wheel

Add / Delete to Basket

Product parameters

Name:	Diamond granite chamfering wheel
Model Number:	BW-DF-R01
Product name	Diamond granite chamfering wheel
Diameter	150mm
Specification	D150B1015.88H
Use	Wet use
Usage	For grinding and chamfering granite
Machine	CNC profiling machine,portable angle grinder
Advantage	High efficiency and long lifespan

Product Description

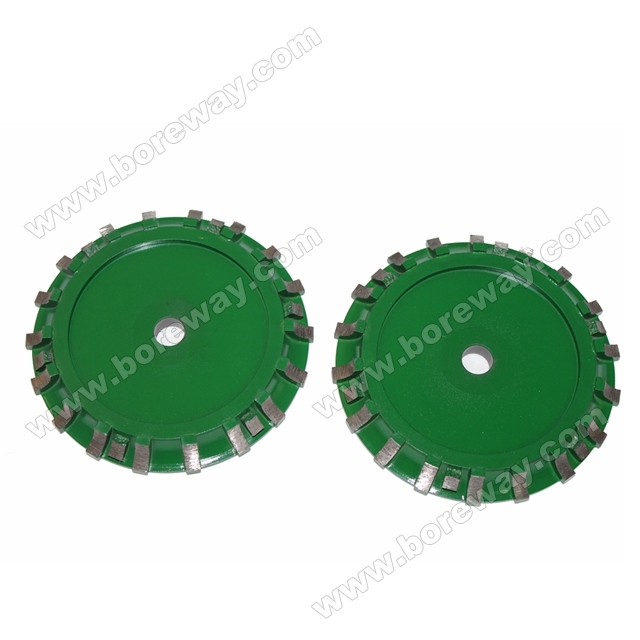

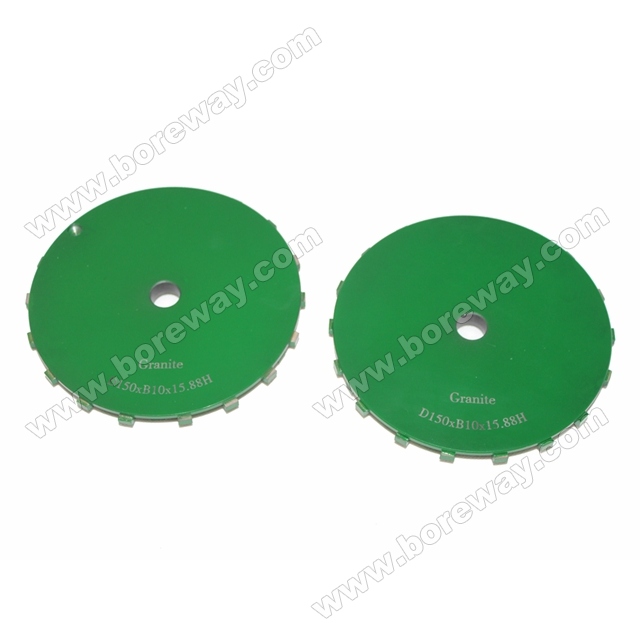

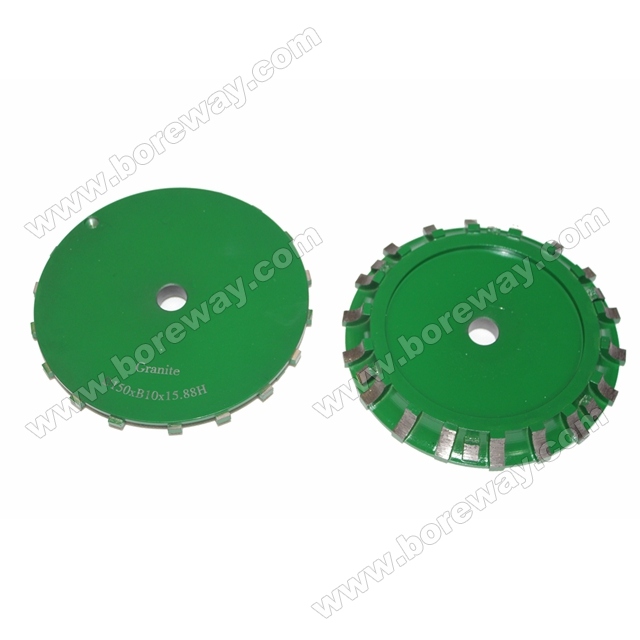

Diamond granite chamfering wheel

Diamond granite chamfering wheels are used for profiling and polishing the edge,side of stone ,

elevator door cover and frame of fireplace .

Their merits are extremely high glossy surface ,and high accuracy in size and shape.

Diamond granite chamfering wheel

The followings are the normal specification of our diamond granite chamfering wheel:

Product Name	Diameter	Thickness	Inner Hole	Application	Shape Type
Diamond grinding wheel	150mm	20/30/40mm	30mm	Granite Marble Other stone	Bullnose Single Dupont Single Bullnose Half Radius Single Threshold Single Edge Ogee Bullnose Bevel Double Ogee Double Radius Top Chamfer Other Types
	200mm	20/30/40mm	30mm
	250mm	20/30/40mm	50mm
	300mm	20/30/40mm	50mm
	350mm	20/30/40mm	50mm

The above specification just a reference for you.Other specification can order by customers.

When you order diamond grinding wheel please confirm:

The code of diamond grinding wheel(BW-DF-R01)

Diameter(?)

Thickness(?)

Inner hole(?)

Shape type(?)
