Your position: Home > Products > Stone Tools > Stone Cutting Tools > Granite slab cutting saw blades > Diamond Saw Blades with U Slot for Slab Edge Cutting of Granite
| Product parameters |
| Name: | Diamond Saw Blades with U Slot for Slab Edge Cutting of Granite |
| Model Number: | BW-SBG-08 |
| Type | Wet use only |
| Segment Height | 15mm,20mm |
| Diameter | from 350mm to 600mm |
| Usage | Cutting Granite,Sandstone,Kinds of Hard Stones with quartz |
| Advatage | Good sharpness and Long lifespan |
| Performance | Hightly stable |
| Machine | Bridge Cutting Machine,Manual Handling Cutting Machine |
| Steel Blank Type | Normal or Silent |
| Cutting result | Flat surface and even size |
| Processing Method | Silver Welded |
| Industry | Diamond tools |  |

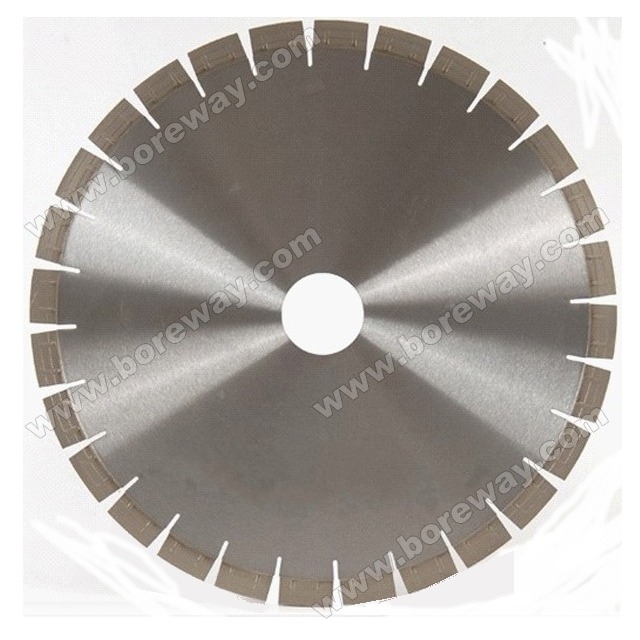

Diamond Saw Blades for Granite Cutting - "||" Shape Taper Segments
Diamond Saw Blades "||" Shape Taper Segments with U Slot for Slab Edge Cutting of Granite, Sandstone, kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine.
Better cutting speed and longer life than normal segmented saw blades.
The following are the normal Specifications we are selling:
| Code No. | Diameter (mm/Inch) | Hole (mm) |
Segment Height (mm) |
Segment No. (pcs/set) |
Steel Blank Type | Welding Method | |||||||
| BW-SBG-08-01 | 350mm(14") | 50/60 | 15/20 | 24 | Normal & Silent | Silver Welded | |||||||
| BW-SBG-08-02 | 400mm(16") | 50/60 | 15/20 | 28 | |||||||||
| BW-SBG-08-03 | 450mm(18") | 50/60 | 15/20 | 32 | |||||||||
| BW-SBG-08-04 | 500mm(20") | 50/60 | 15/20 | 36 | |||||||||
| BW-SBG-08-05 | 550mm(22") | 50/60 | 15/20 | 38 | |||||||||
| BW-SBG-08-06 | 600mm(24") | 50/60 | 15/20 | 42 | |||||||||
|
|||||||||||||
Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance.
The above specification is only for Reference, other or special specification can be ordered by customers.
Features:
Silver Welded, Wet use only!
Cutting Speed is faster and life is also longer than Normal 40mm Length Segmented Saw Blades, the thickness of Segments from the top to the bottom is different, which can reduce the friction when the blade cut the Stone.
Diameter: 400mm, || Step Taper Segments, Length 40mm, height 20mm.
Easy and smooth cutting for Hard, Medium Hard, Soft Granite without chips or with very less Chips, Long life and stable performance.
