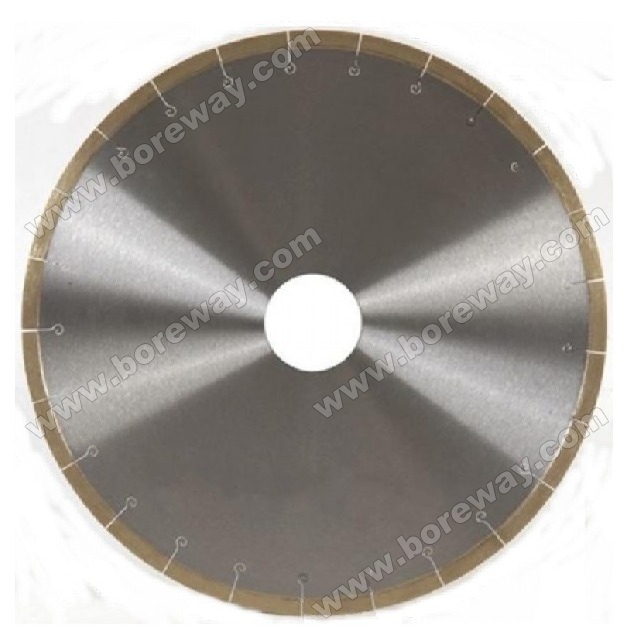

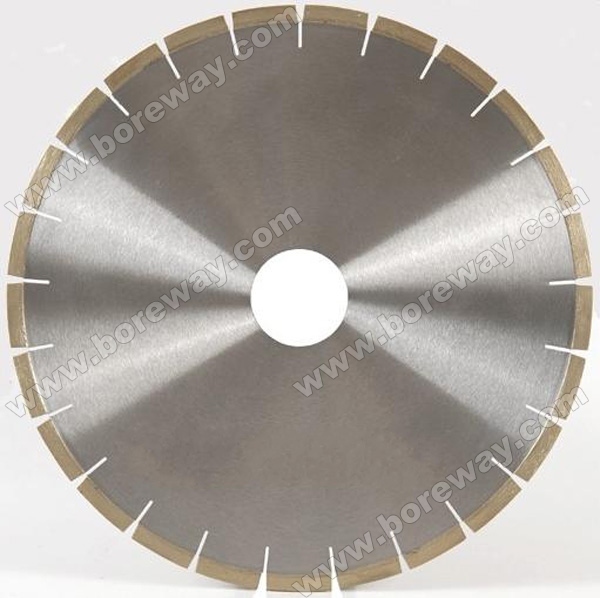

Diamond Saw Blades for Marble Cross Cutting (Multi-Blades)

Product parameters
Name: Diamond Saw Blades for Marble Cross Cutting (Multi-Blades)
Model Number: BW-MCSB-00
Diameter 300mm,350mm,400mm
Type Wet Use
Core Thickness 1.8mm,2.2mm,2.4mm
Usage Marble or Limestone or other soft material without quartz
Machine Stone Cutting Machine
Advatage Good sharpness and Long lifespan
Performance Hightly stable
Steel Blank Type Normal or Silent
Cutting result Flat surface and even size
Processing Method Silver Welded

Product Description


Diamond Saw Blades for Marble Cross Cutting (Multi-Blades)



Usually for the Cutting of Marble or Limestone or other soft material without quartz.

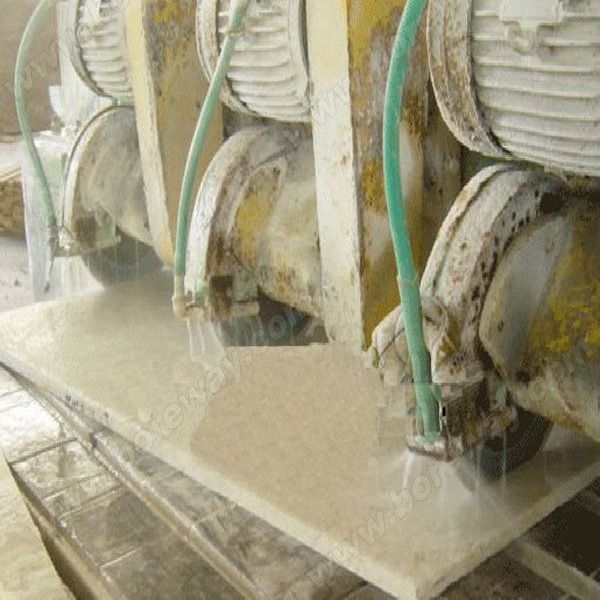

By this cutting method the working efficiency is much higher than one-blade cutting, however the quality of diamond saw blade should be very high with soft bond for fasting cutting without chips.



Silent & None Silent Saw Blades is Available!



Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance.



The following are the normal Specifications we are selling:



Diameter

(mm)

Segment Size

(L x W x H, mm)

 Segment No.

(pcs)

Core Thickness

(mm)

Bore Size

(mm)

Blades No.

per Machine

300

40x2.8x8/10

21

1.8

50/60

3-10pcs

350

40x3.2x8/10

25

2.2

50/60

400

40x3.6x8/10

28

2.4

50/60



The above specification is only for Reference, other or special specification can be ordered by customers.



Kndly Noted:

When place order please inform the following:



  Diameter (Inch or mm)

  Inner Hole Size (Inch or mm)

  Installation hole (If, need drawing)

  Segment No. (how many pcs segment per blade)

  Segment Size (L x W x H, if possible please inform Steel Core Thickness)

  Use of saw blade (For marble, or limestone, or other material)

  Quantity NO. (How many pcs, or how many sets segments)

  Expected Shipping Date

  Special Requirements (If)
