| Product parameters |
| Name: | Diamond Saw Blades Taper Segments for Slab Edge Cutting of Granite |
| Model Number: | BW-SBG-04 |
| Type | Wet use only |
| Segment Height | 12mm,15mm,20mm |
| Diameter | 350mm to 600mm |
| Usage | Cutting Granite,Sandstone,Kinds of Hard Stones with quartz |
| Advatage | Good sharpness and Long lifespan |
| Performance | Hightly stable |
| Machine | Bridge Cutting Machine,Manual Handling Cutting Machine |
| Steel Blank Type | Normal or Silent |
| Cutting result | Flat surface and even size |
| Processing Method | Silver Welded |
| Industry | Diamond tools |  |

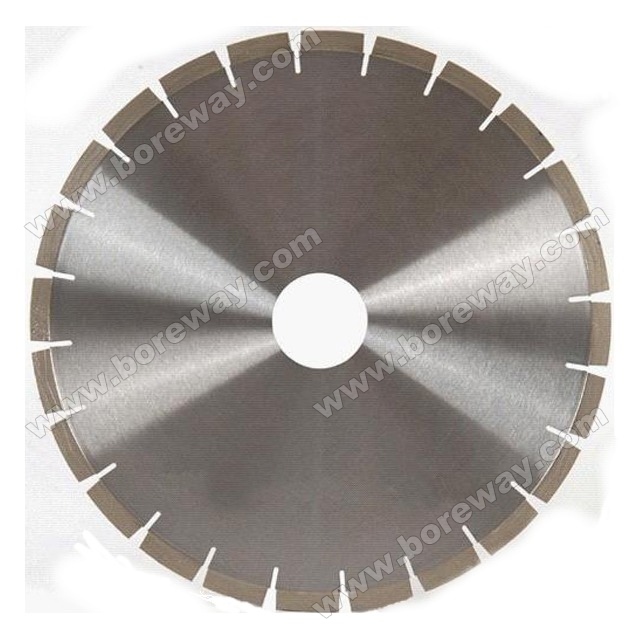

Diamond Saw Blades for Granite Cutting - >> Shape Taper Segments
Diamond Saw Blades with ">>" Shape Taper Segments for Slab Edge Cutting of Granite, Sandstone, kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine.
Better cutting speed than normal segmented saw blades.
The following are the normal Specifications we are selling:
Code No.
Diameter (mm/Inch)
Hole
(mm)Segment Height
(mm)Segment No.
(pcs/set)Steel Blank Type
Welding Method
BW-SBG-04-01
350mm(14")
50/60
12/15/20
24
Normal & Silent
Silver Welded
BW-SBG-04-02
400mm(16")
50/60
12/15/20
28
BW-SBG-04-03
450mm(18")
50/60
12/15/20
32
BW-SBG-04-04
500mm(20")
50/60
12/15/20
36
BW-SBG-04-05
550mm(22")
50/60
12/15/20
38
BW-SBG-04-06
600mm(24")
50/60
12/15/20
42
.gif){kind=small}
Wet use only, Fast & Easy cutting, long life, very less or no chips, perfect performance. The above specification is only for Reference, other or special specification can be ordered by customers.
Features:
Cutting Speed is faster than Normal 40mm Length Segmented Saw Blades, the thickness of Segments from the top to the bottom is different, which can reduce the friction when the blade cut the Stone.
Diameter: 350mm-800mm, << Step Taper Segments, Length 40mm, height 12-20mm.
Easy and smooth cutting for Hard, Medium Hard, Soft Granite without chips or with very less Chips, Long life and stable performance.
Kindly Noted:
When place order for Granite Cutting Saw Blades please inform:
Code No. of Granite Cutting Saw Blades
Diameter (Inch or mm)
Inner Hole/Bore Size (Inch or mm, 50mm or 60mm, or other size)
Installation hole (If, please send us Drawing)
Silent or None Silent Saw Blade?
Material Cutting: What type Granite, Sandstone, or other hard Stone?
Machine Powder/RPM (If possible)
Order Quantity & Expected Shipping Date
Special Requirements (If)
Silver Welded, Wet use only!
