Diamond Hot Pressed Narrow Turbo Disc Cutting Wheel for Marble Granite Stone Concrete Tile and Ceramic

Add / Delete to Basket

Product parameters

Name:	Diamond Hot Pressed Narrow Turbo Disc Cutting Wheel for Marble Granite Stone Concrete Tile and Ceramic
Model Number:	BW-TSB-012-4
Segment Thickness(mm):	2 mm
Segment Length(mm):	37.5mm
Brand Name:	Boreway
Size:	125mm,5inch
Segment Height:	8/10/12mm
Welding Technology:	Cold Pressed
Cutting Condition:	Wet Cut, Dry Cut
Machine:	Angle Grinder,Circular Saw,Table Saw, Etc.
Feature:	Multi Purpose, Multi Hole Steel Core, Fast Cutting

Product Description

Diamond Hot Pressed Narrow Turbo Disc Cutting Wheel for Marble Granite Stone Concrete Tile and Ceramic

Advantage:

Narrow Turbo Disc Cutting Wheel is usually for cutting Ceramic / Porcelain Tiles.

1.We can provide 2 quality level ,class A and class B.

2.Class A can provide good cutting speed and good lifespan.

3.Class B can provide faster cutting speed and balance lifespan .

4.Suitalbe for drilling on cured concrte ,granite ,marble and other construction materials.

5.We supply different quality grades diamond blade depend on the local stone concrete feature.

Specification:

The following specifications of Narrow Turbo Disc Cutting Wheel:

Diameter		Bore	Segment	Segment	Segment
mm	inch	Size(mm/inch)	length(mm)	Thickness(mm)	Height(mm)
105	4”	16/20 22.23 25.4 50	35	1.8	8/10/12
110	4.3”		32.3	1.8	8/10/12
115	4.5”		38.3	1.8	8/10/12
125	5”		37.5	2.0	8/10/12
150	6”		33.5	2.2	8/10/12
180	7”		35	2.4	8/10/12
200	8”		39.2	2.4	8/10/12
230	9”		34.4	2.6	8/10/12

The above specifications & photo is only for Reference, other or special specifications may be available as per customer's demand.

Attention when use:

1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools

2. Do not use any saw blade that has been deformed for being pressed of crashed

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover

Product Details:

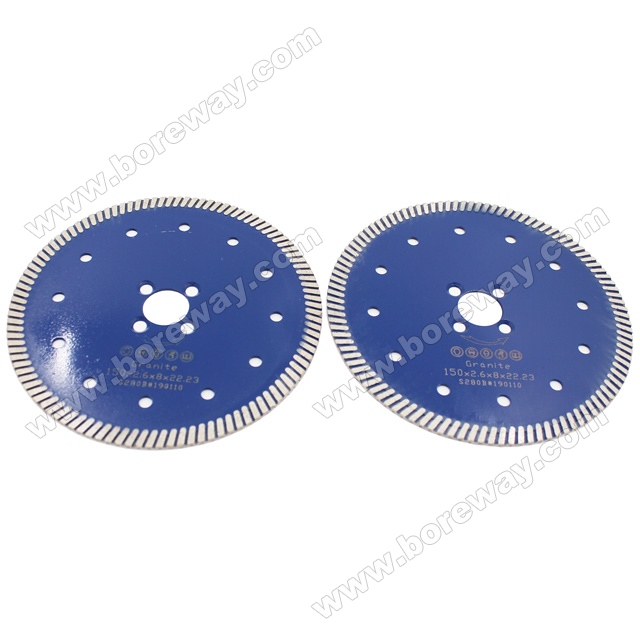

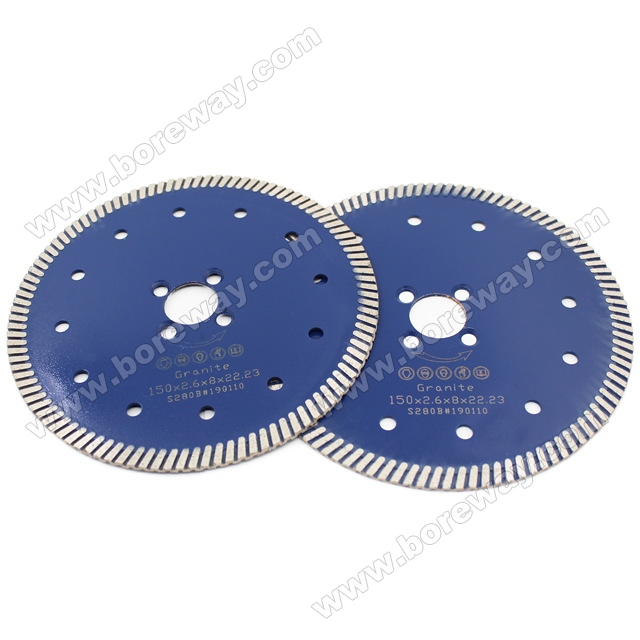

Narrow Turbo Disc Cutting Wheel

Narrow Turbo Disc Cutting Wheel

Related Products:

Application:

Narrow Turbo Disc Cutting Wheel of tile,bricks,brick blocks,concrete,marble,granite,stone, etc.

Note:

1. It is recommended that the operator wear protective glasses, protective masks, work clothes, protective shoes, gloves and other protective equipment;

2. Tighten the installation according to the rotation direction indicated by the saw blade, and do not work in the reverse direction;

3. When dry cutting, please do not cut continuously for a long time, so as not to affect the service life and cutting effect of the saw blade;

4. When using wet slices, water should be added instead of curve cutting. Please use special arc cutting blades for cutting curves;

5. It is forbidden to use cutting discs for polishing operations, please use professional polishing discs for polishing;

6. If the saw blade is not used for cutting operations in accordance with the relevant requirements, a serious injury may occur.

Application machine:

9 Inch Super Thin Tile Continuous Turbo Rim Blades suitable for angle grinder,circular saw,masonry saw,table saw.

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
