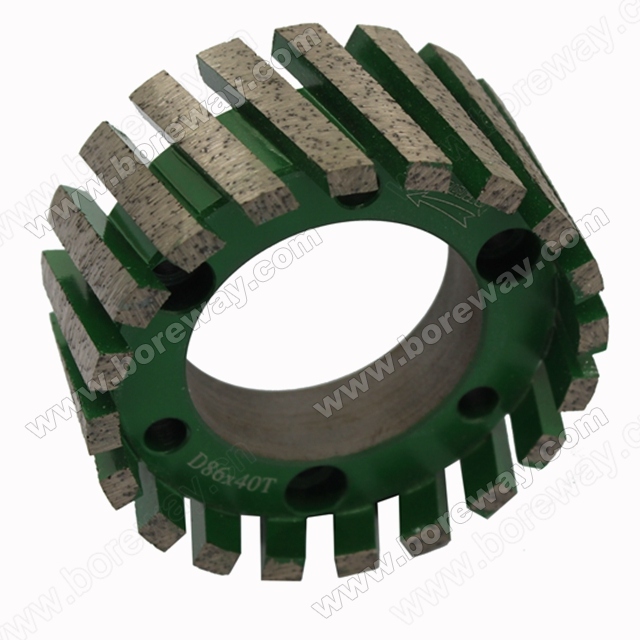

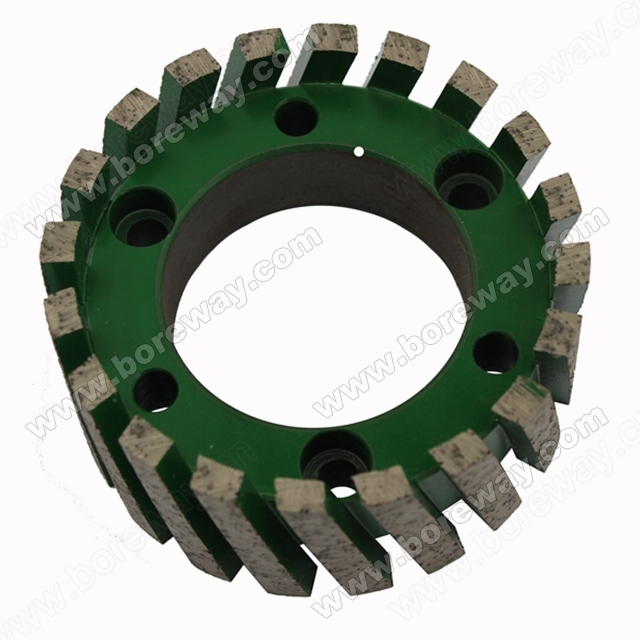

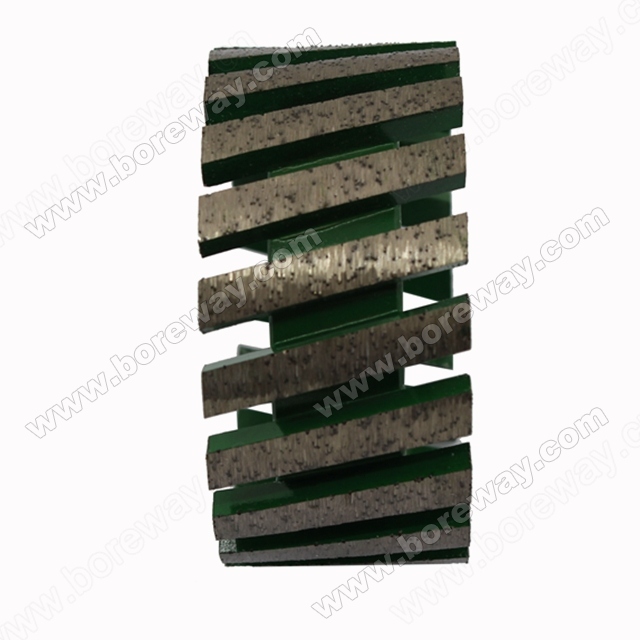

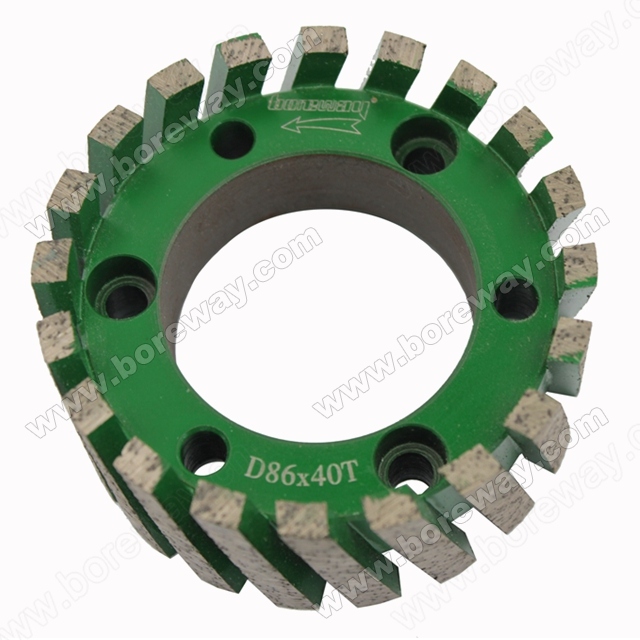

Diamond CNC Standard Stubbing Cutter For Sink Hole

Add / Delete to Basket

Product parameters

Name:	Diamond CNC Standard Stubbing Cutter For Sink Hole
Model Number:	BW-DSSW-02(40T)
Product name	D86x40Tx50H Diamond CNC Standard Stubbing Cutter For Sink Hole
Specification	D86x40Tx50H
Diameter	86mm
Segment height	40mm
Connection	1/2"G
Inner Hole	50mm
Application	For fast grinding the stone countertop and water hole
Machine	CNC machine
Use	Wet Use

Description

1.D86x40Tx50H Diamond CNC Standard Stubbing Cutter For Sink Hole are used for surface

milling and material removal for various granite and marble stone on CNC

or other machines.Their merits are high efficiency of production,accuracy

in shape and size.

2.It is be used before using the diamond proliing wheels.

3.It has high efficiency efficiency,long lifespan and good stable.

Normal size of diamond standard stubbing wheel:

Product code	Diameter (mm)	Segment height (mm)	Inner hole (mm)	Connection	Grit No.	Machine	Specification of adapter
BW- DSSW-01	50	20	10	Φ10-2+2Hole	30/40# 60# 100# 200#	CNC machine and arm radial machine	D37×90L ×1/2"G
		30
		40
BW- DSSW-02	86	20	50	Φ50-3+3Hole			D75×78L ×1/2"G
		30
		40
BW- DSSW-03	100	20		Φ50-3+3Hole
		30
		40

Adapter of diamond standard stubbing wheel not be included.

Other more sizes could be customized after confirmation.

When order diamond standard stubbing wheels please confirm.

1.Code No. of diamond drain board wheel( BW-DSSW-03(40T))

2.Specification of diamond standard stubbing wheel (diameter ? Segment height ? Inner hole ?connection ?Grit? )

3.Do you need the adapter of the standard stubbing wheel?What size do you want?

4.Quantity(?)
