Dia.140 diamond electroplated v shape grinding wheel for stone

Add / Delete to Basket

Product parameters

Name:	Dia.140 diamond electroplated v shape grinding wheel for stone
Model Number:	BW-DF-R07
Product name	Dia.140 diamond electroplated v shape grinding wheel for stone
Diameter	140mm
Inner hole	30mm
Thickness	20mm
Specification	D14020T30H
Use	Wet use
Usage	For grinding stone such as granite,marble and so on
Machine	CNC profilie wheel,protable grinding machine
Advantage	High efficiency and long lifespan

Product Description

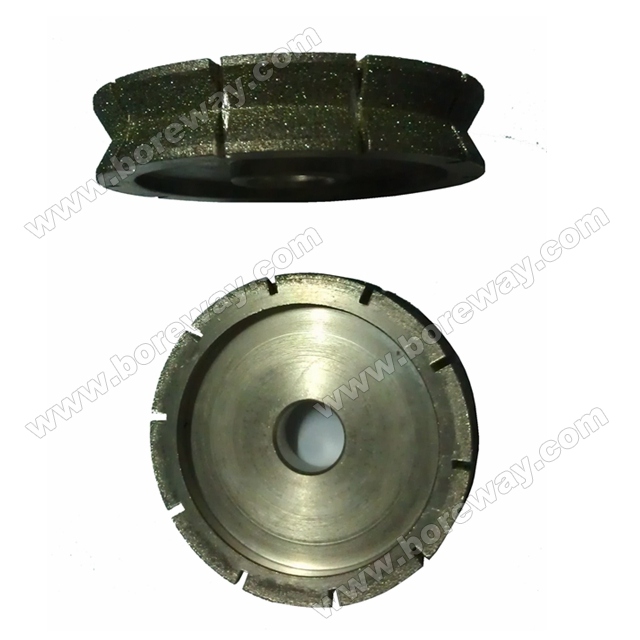

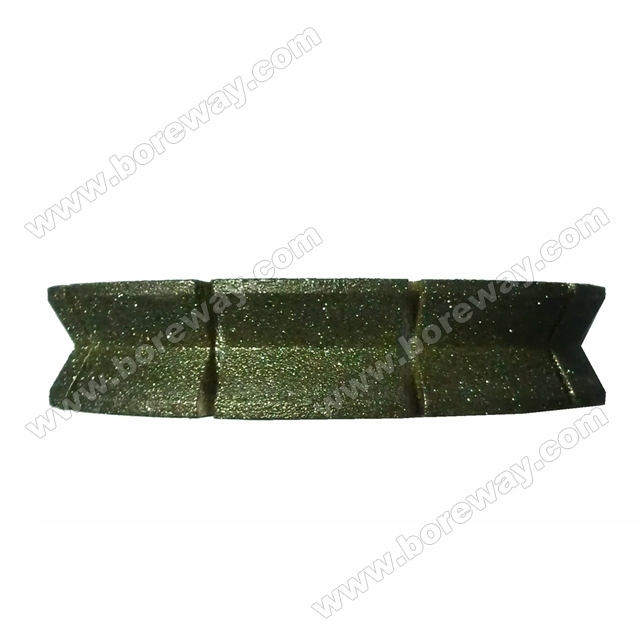

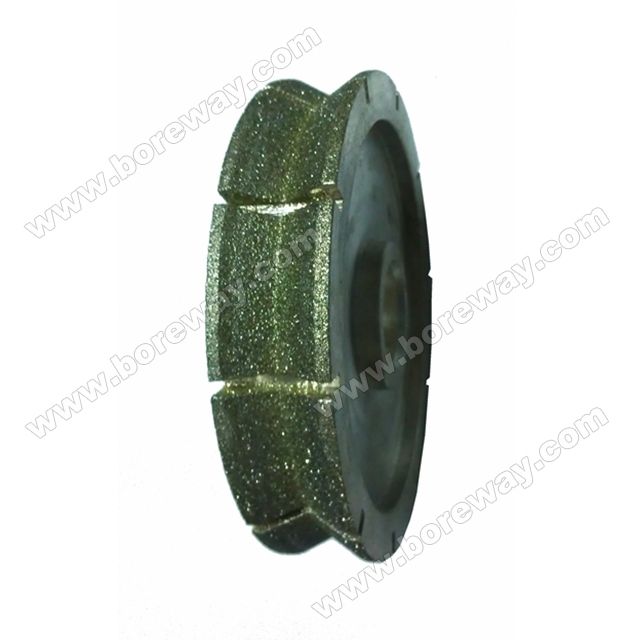

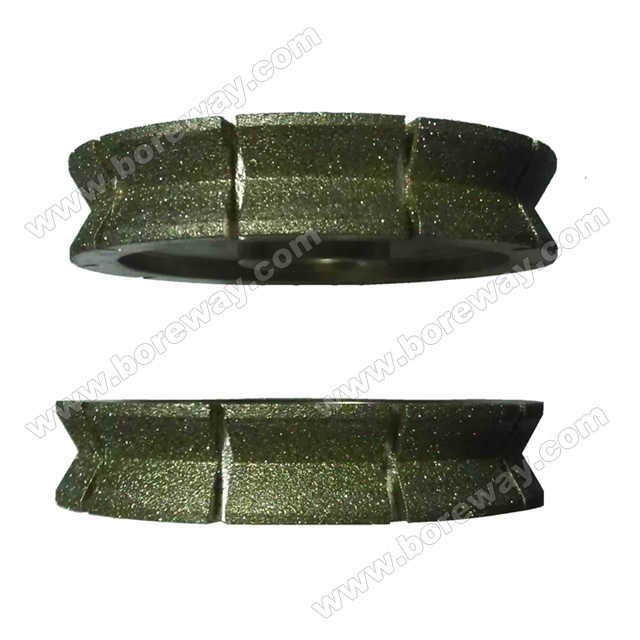

Dia.140 diamond electroplated v shape grinding wheel for stone

Dia.140 diamond electroplated v shape grinding wheels for stone are used for profiling and polishing the edge,

side of stone ,elevator door cover and frame of fireplace .Their merits are extremely high glossy surface ,and

high accuracy in size and shape.

Dia.140 diamond electroplated v shape grinding wheel for stone

The followings are the normal specification of our diamond electroplated v shape grinding wheel for stone:

Product Name	Diameter	Thickness	Inner Hole	Application	Shape Type
Diamond grinding wheel	150mm	20/30/40mm	30mm	Granite Marble Other stone	Bullnose Single Dupont Single Bullnose Half Radius Single Threshold Single Edge Ogee Bullnose Bevel Double Ogee Double Radius Top Chamfer Other Types
	200mm	20/30/40mm	30mm
	250mm	20/30/40mm	50mm
	300mm	20/30/40mm	50mm
	350mm	20/30/40mm	50mm

The above specification just for a reference.Other specification can be ordered by customers.

When you order diamond grinding wheel please confirm:

The code of diamond grinding wheel(BW-DF-R07)

Diameter(?)

Thickness(?)

Inner hole(?)

Shape type(?)
