Circular Cutter Disk Diamond Marble Cutting tip Disc Edge Customizable Cutting Blade Tools

Add / Delete to Basket

Product parameters

Name:	Circular Cutter Disk Diamond Marble Cutting tip Disc Edge Customizable Cutting Blade Tools
Model Number:	BW-DC-01-02
Size:	110mm
Diameter:	4.3inch
Number of Segments:	6/8/9 Pcs
Slot Type:	Key Hole Type
Business Type:	Manufacturer
Finishing:	Segment Blade
Usage:	For Stone Concrete Cutting
Inner Hole:	16/20mm,22.23mm,25.4mm,50mm
Machine:	Angle Grinder,Circular Saw,Masonry Saw,Table Saw

Product Description

Circular Cutter Disk Diamond Marble Cutting tip Disc Edge Customizable Cutting Blade Tools

Specification:

The following specifications of Circular Cutter Disk:

Diameter		Bore	Segment	Number of cutter Segments	Segment
mm	inch	Size(mm/inch)	length(mm)	Pcs	Height(mm)
105	4”	16/20 22.23 25.4 50	35	6/8	8/10/12
110	4.3”		32.3	6/8/9	8/10/12
115	4.5”		38.3	8	8/10/12
125	5”		37.5	9	8/10/12
150	6”		33.5	12	8/10/12
180	7”		35	14	8/10/12
200	8”		39.2	14	8/10/12
230	9”		34.4	18	8/10/12

The above specifications & photo is only for Reference, other or special specifications may be available as per customer's demand.

Circular Cutter Disk Diamond Marble Cutting tip Disc Edge Customizable Cutting Blade Tools

Attention when use:

1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools

2. Do not use any saw blade that has been deformed for being pressed of crashed

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover

Advantage:

1. The substrate is made of 65 manganese alloy steel, the thickness strictly abides by the product implementation standards, high strength, strong and stable;

2. Circular Cutter Disk is made of high-quality diamond and metal powder mixed and sintered for sharp and ultra-long cutting;

3. Circular Cutter Disk use high grade diamond

4. Use good quality bonding agent

5. Strict quality inspection on each production process

6. Cooperation with university's experts on technology & formula reserch

Product Details:

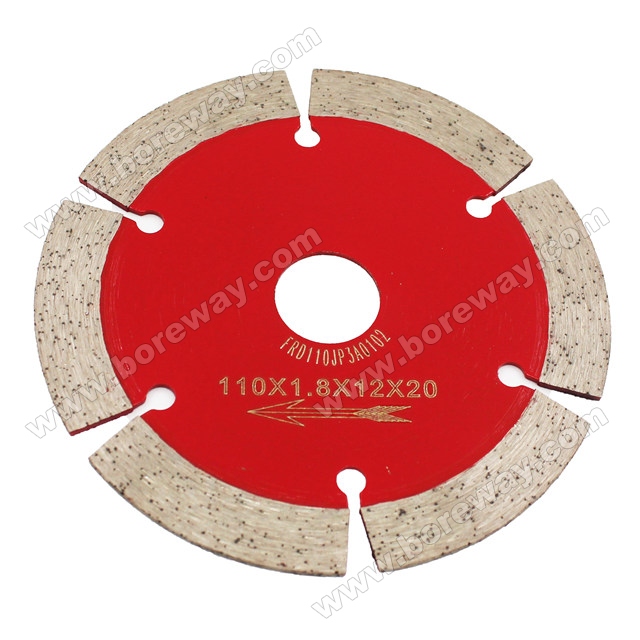

Circular Cutter Disk

Size:	110mm
Diameter:	4.3 inch
Number No.:	6/8/9Pcs
Segment Length:	32.3mm
Segment Heigth:	8/10/12mm
Slot Type:	Key Hole Type
Type:	Circular Saw Blade
Usage:	For Stone Concrete Cutting
Inner Hole:	16/20mm,22.23mm,25.4mm,50mm
Machinery:	Angle Grinder,Circular Saw,Masonry Saw,Table Saw

Application:

Circular Cutter Disk Suitable for cutting ceramic tile, vitrified brick, microcrystalline stone, etc

Cutting effect:

Application machine:

Circular Cutter Disk suitable for angle grinder,circular saw,masonry saw,table saw.

note:

1. It is recommended that the operator wear protective glasses, protective masks, work clothes, protective shoes, gloves and other protective equipment;

2. Tighten the installation according to the rotation direction indicated by the saw blade, and do not work in the reverse direction;

3. When dry cutting, please do not cut continuously for a long time, so as not to affect the service life and cutting effect of the saw blade;

4. When using wet slices, water should be added instead of curve cutting. Please use special arc cutting blades for cutting curves;

5. It is forbidden to use cutting discs for polishing operations, please use professional polishing discs for polishing;

6. If the saw blade is not used for cutting operations in accordance with the relevant requirements, a serious injury may occur.

Other Priducts :

Professional electroplated saw blade for cutting and grinding glass materials, ceramic materials, stone materials, semiconductor materials, etc

Continuous sintering cutting saw blade for decorative stone, jade and agate

Suitable for cutting hard, medium hard and soft stone, such as granite, marble, sandstone, limestone and other materials t-turbine curve piece

About us:

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so
Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?
Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Plese note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.

-Lyon Chang-

Fujian Nan'an Boreway Machinery Co.,Ltd.

Tel,Wechat,WhatsApp: +86 18650679939

E-mail: boreway@boreway.com
