Product parameters

Name:	Boreway Turbo Type High Cobalt Diamond Drilling Segment for Concrete Manufacturer
Model Number:	BW-DS-DB-C04
Place of Origin:	Fujian, China
Brand Name:	BOREWAY
Segment No.:	4-32pcs
Diameter:	32mm-356mm
Segment Length:	16-24mm
Segment height:	10mm
Raw Material:	Diamond Powder,Cobalt etc
Application:	Concrete,Granite,Marble etc
Machine:	Handheld drill or table drill machine
Segment Thickness:	3.0mm/3.5mm/4.0mm/4.5mm/5.0mm/5.5mm

Product Description

Boreway Turbo Type High Cobalt Diamond Drilling Segment for Concrete Manufacturer

Descriptions:

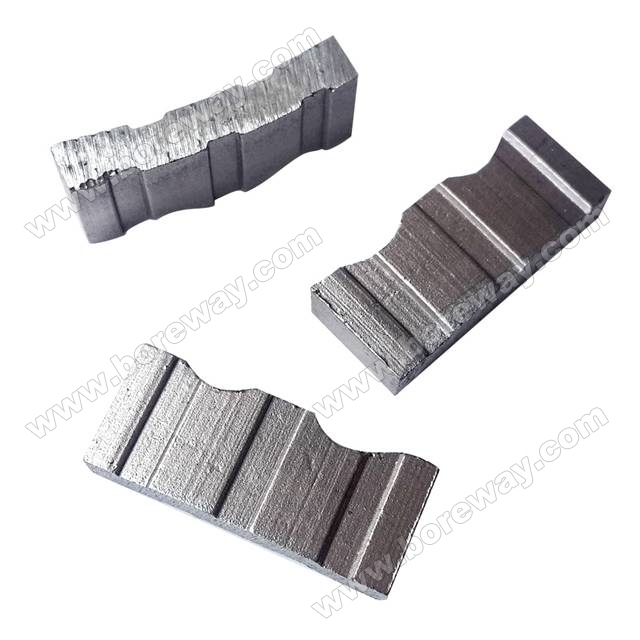

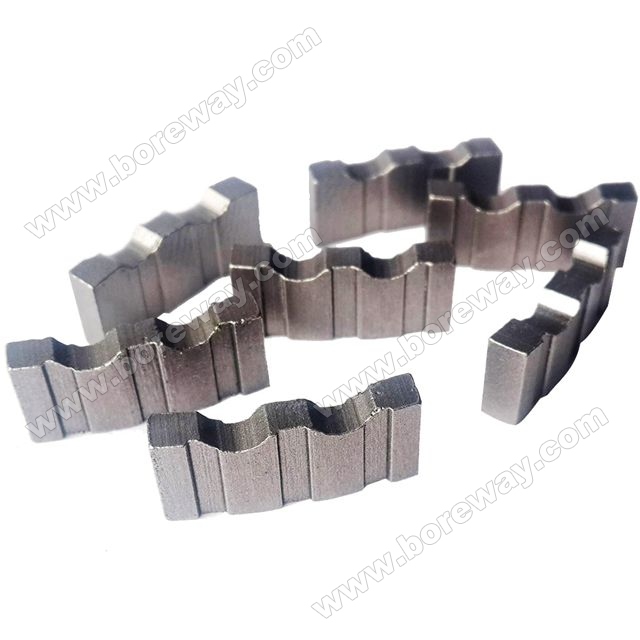

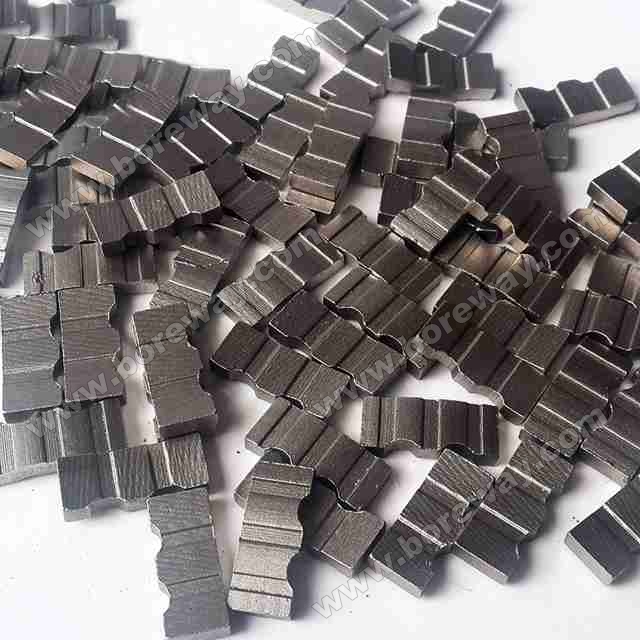

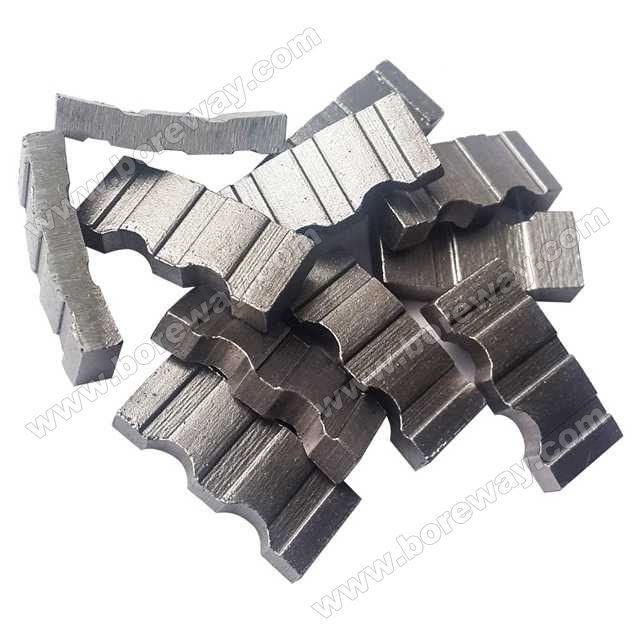

Diamond Segments of Drill Bits - Turbo Shape

Turbo type high cobalt diamond drilling segment of drill bits diameter 32mm-356mm provide smooth and fast drilling for kinds of concrete.

Specifications:

The following specifications of turbo type high cobalt diamond drilling segment：

Code No.	Diameter	Segment Size	Segment No.
CD-DS-DB-C04-01	1.25"(32mm)	16x3.0x10	4
CD-DS-DB-C04-02	1.38"(35mm)	16x3.0x10	4
CD-DS-DB-C04-03	1.50"(38mm)	16x3.0x10	5
CD-DS-DB-C04-04	1.63"(42mm)	16x3.0x10	5
CD-DS-DB-C04-05	1.75"(45mm)	16x3.0x10	6
CD-DS-DB-C04-06	1.88"(48mm)	16x3.0x10	6
CD-DS-DB-C04-07	2"(52mm)	16x3.0x10	7
CD-DS-DB-C04-08	2.25"(57mm)	24x3.5x10	5
CD-DS-DB-C04-09	2.50"(63mm)	24x3.5x10	6
CD-DS-DB-C04-10	2.75"(70mm)	24x3.5x10	7
CD-DS-DB-C04-11	3"(76mm)	24x3.5x10	8
CD-DS-DB-C04-12	3.25"(82mm)	24x3.5x10	9
CD-DS-DB-C04-13	3.50"(89mm)	24x3.5x10	10
CD-DS-DB-C04-14	4"(102mm)	24x3.5x10	10
CD-DS-DB-C04-15	4.25"(108mm)	24x3.5x10	11
CD-DS-DB-C04-16	4.50"(114mm)	24x3.5x10	11
CD-DS-DB-C04-17	4.75"(120mm)	24x4.0x10	11
CD-DS-DB-C04-18	5"(127mm)	24x4.0x10	11
CD-DS-DB-C04-19	5.5"(140mm)	24x4.0x10	12
CD-DS-DB-C04-20	5.75"(146mm)	24x4.0x10	13
CD-DS-DB-C04-21	6"(152mm)	24x4.0x10	13
CD-DS-DB-C04-22	6.25"(159mm)	24x4.0x10	14
CD-DS-DB-C04-23	6.5"(165mm)	24x4.0x10	15
CD-DS-DB-C04-24	7"(178mm)	24x4.0x10	16
CD-DS-DB-C04-25	8"(203mm)	24x4.5x10	18
CD-DS-DB-C04-26	9"(229mm)	24x4.5x10	20
CD-DS-DB-C04-27	10"(254mm)	24x4.5x10	23
CD-DS-DB-C04-28	11"(280mm)	24x5.0x10	25
CD-DS-DB-C04-29	12"(305mm)	24x5.0x10	27
CD-DS-DB-C04-30	13"(330mm)	24x5.5x10	30
CD-DS-DB-C04-31	14"(356mm)	24x5.5x10	32

Specially designed tools are available for any standard apllication. We can

customize tools as per your exact needs.

Applications:

Turbo type high cobalt diamond drilling segment for cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.

Welding Type: Silver or Laser.

Wet or Dry(32mm-152mm) Use.

Under same bond conditions, the drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.

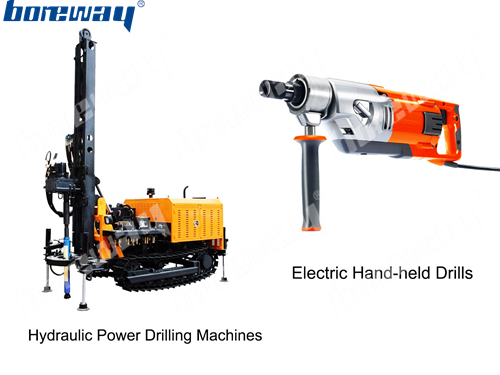

Machinery:

Hydraulic power drilling machines, Electric hand-held drills. Boreway Turbo Type High Cobalt Diamond Drilling Segment for Concrete Manufacturer

Boreway Turbo Type High Cobalt Diamond Drilling Segment for Concrete Manufacturer

Machine for making cutter Segment:

20mm height black diamond granite cutting segment tips for make machine

Machine for welding the cutter segment base:

20mm height black diamond granite cutting segment tips for machine
