Diamond Segments of Multi-Saw blades for Granite Block Cutting

Product parameters
Name: Diamond Segments of Multi-Saw blades for Granite Block Cutting
Model Number: BW-DSMGB-00
Type Wet Use only
Segment Height 12mm,13mm,15mm
Diameter 1.0 m,1.2 m,1.6 m
Segment Length 24mm
Segment Structure Sandwich or Multi-Layer
Usage Cutting granite rough blocks and slabs
Machine Multi-saw blade machine
Welding Method Silver Welded
Performance Hightly stable
Advatage Good sharpness and Long lifespan
Cutting result Flat surface and even size

Product Description

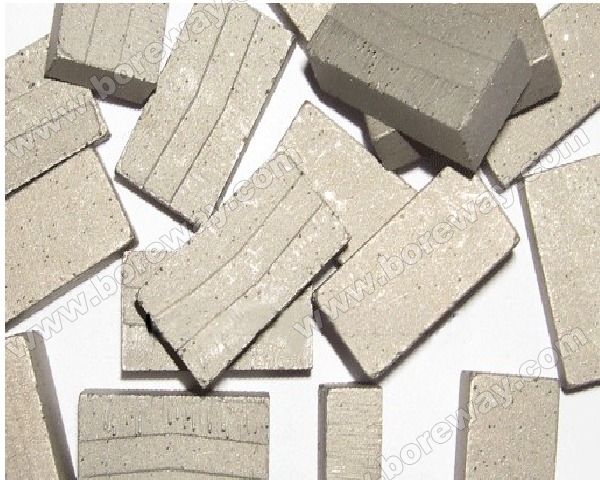

Diamond Segments of Multi-Saw blades for Granite Block Cutting

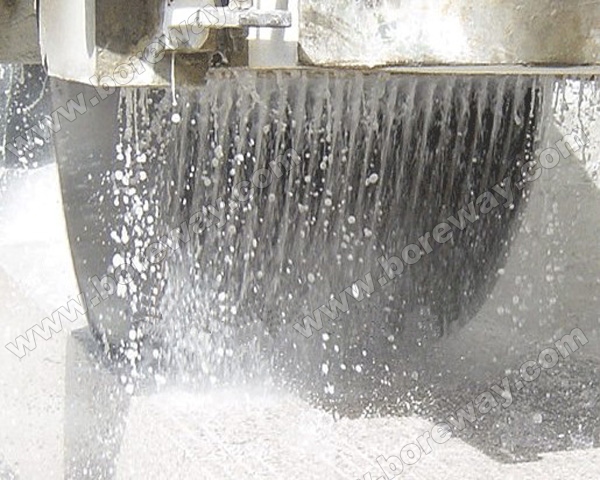

Mainly used for cutting granite rough blocks and slabs. Characterized by high efficiency. no need grinding, smoothness of slab, and low energy consumption.

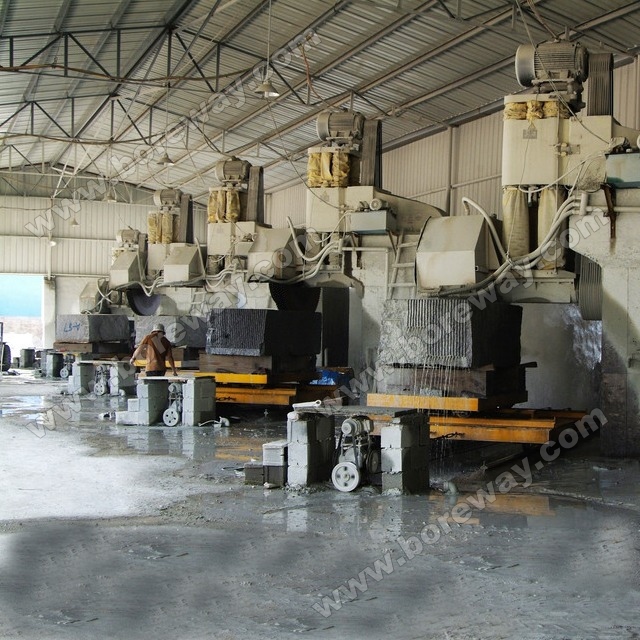

10-30pcs same diameter diamond circular saw blades per machine is suitable for 4 column  machine, such as 1200mm Multi-Blades, this is very popular in granite block cutting field.

Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.


The following are the normal Specifications we are selling:



Diameter
(mm)
Segment Dimension
L x W x H (mm)
Segment No.
(Per Set)
No. of blades
used together
1000
24×7.0/6.0×12
70
10-30
1200
24×7.5/6.5×12/13
80
1600
24×8.2/7.8×12/13/15
108


The above specification is only for Reference, other or special specification can be ordered by customers.

Kindly Noted:


Please use high frequency Silver Welded machine instead of Fire to make the brazing, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
