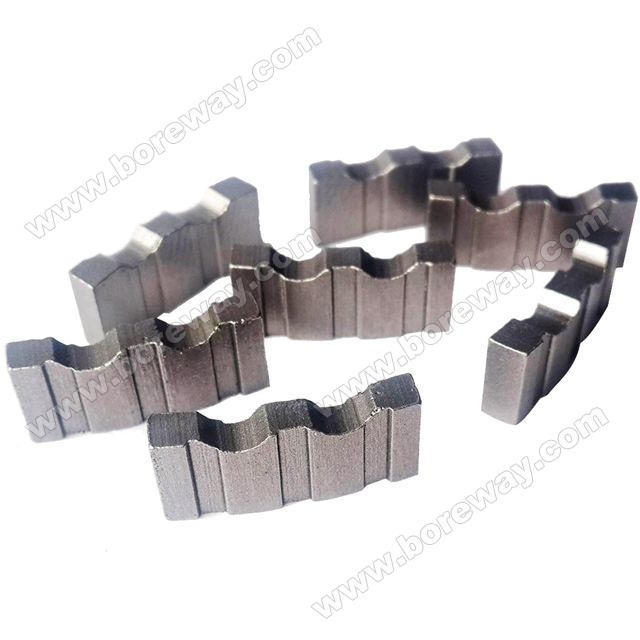

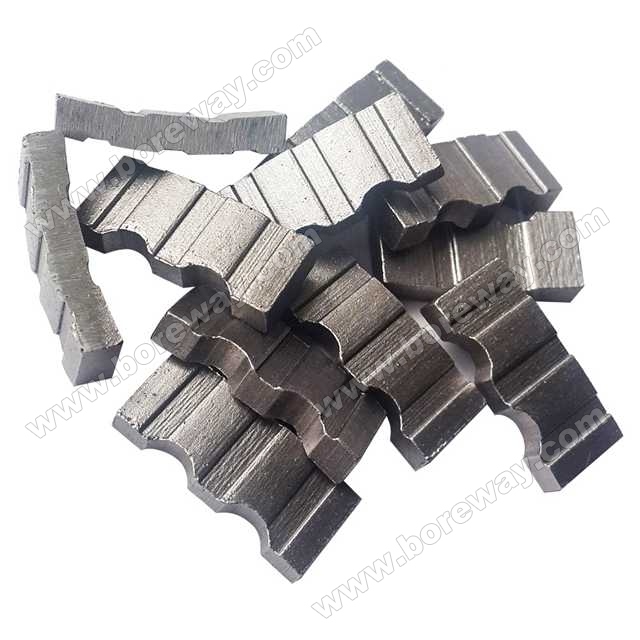

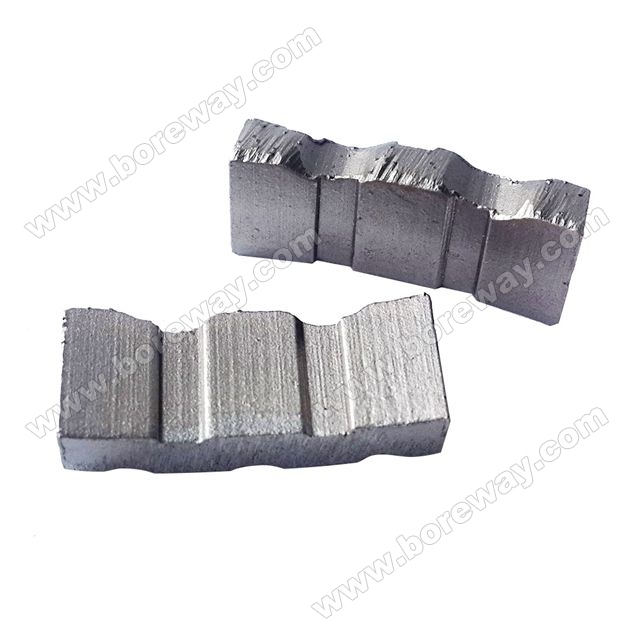

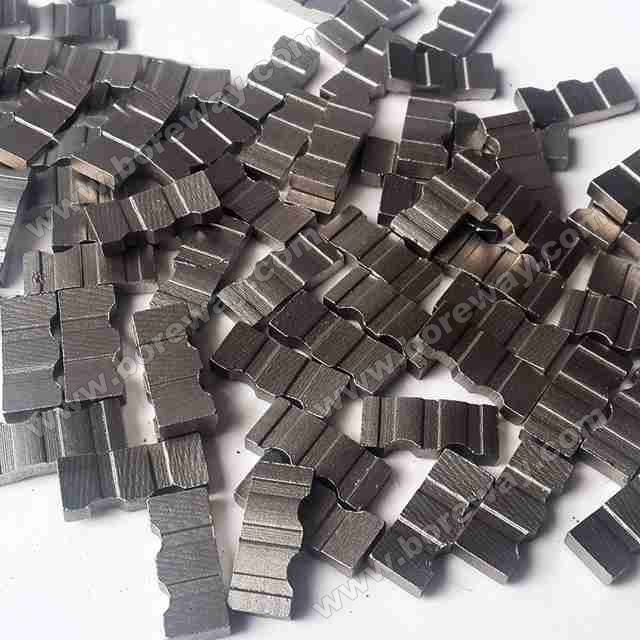

Boreway Turbo Type Diamond Segments For Reinforced Core Drill Of Concrete ,Granite,Marble

Product parameters
Name: Boreway Turbo Type Diamond Segments For Reinforced Core Drill Of Concrete ,Granite,Marble
Model Number: BW-DS-DB-S04-17
Place of Origin: Fujian, China
Brand Name: BOREWAY
Segment No.: 11pcs
Diameter: 4.7inch,120mm
Segment Size: 24x4.0x10mm
Applications: Concrete ,Granite,Marble
Machinery: Hydraulic power drilling machines, Electric hand-held drills.

Product Description


Boreway Turbo Type Diamond Segments For Reinforced Core Drill Of  Concrete ,Granite,Marble



Descriptions:

Flat shape new diamond segment normal flat shape of drill bits diameter 1"-5" provide smooth and fast drilling.

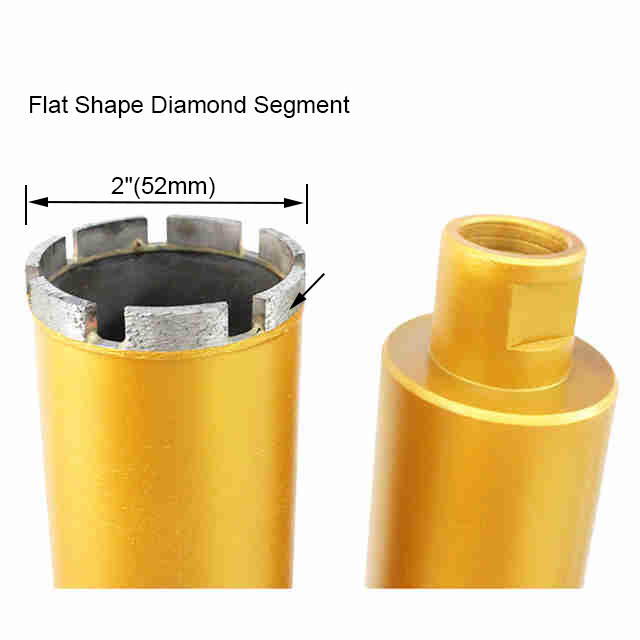

Boreway New Diamond Segment Normal Flat Shape Core Drill Bit for Granite

Specifications:
The following are normal specifications flat shape new diamond segment:

Code No.
Diameter
Segment Size
Segment No.
CD-DS-DB-S02
Normal Flat Shape
1"(25mm)
17/12x3.0x10
4
1.18"(30mm)
17/12x3.0x10
4
1.25"(32mm)
16x3.0x10
4
1.38"(35mm)
16x3.0x10
4
1.50"(38mm)
16x3.0x10
5
1.63"(42mm)
16x3.0x10
5
1.75"(45mm)
16x3.0x10
6
1.88"(48mm)
16x3.0x10
6
2"(52mm)
16x3.0x10
7
2.25"(57mm)
22x3.5x10
5
2.50"(63mm)
22x3.5x10
6
2.75"(70mm)
22x3.5x10
7
3"(76mm)
22x3.5x10
8
3.25"(82mm)
22x3.5x10
9
3.50"(89mm)
22x3.5x10
10
4"(102mm)
22x3.5x10
10
4.25"(108mm)
22x3.5x10
11
4.50"(114mm)
22x3.5x10
11
4.75"(120mm)
24x4.0x10
11
5"(127mm)
24x4.0x10
11

Other specifications can be customized according to requirements.

Advantages:

1. Our bit bits use diamond sheet material and metal matrix (Ti+Cr+Ni+Co, etc.) to form chemical bonds, which can reduce threshing, improve the edge, and prolong service life.

2. Combining grinding with edge drilling (high strength diamond), the drilling performance is optimized.

3.The cutter head has good sharpness, fast drilling speed and high efficiency.

4. Good wear resistance, long service life, high comprehensive price ratio!

Applications:

Flat shape new diamond segment for Kinds of granite or hard stone


Machines for drilling bits:

Turbo type diamond segments for reinforced core drill
