Your position: Home > Products > Stone Tools > Stone Drilling Tools > Diamond Segments Of Drill Bit > Boreway New Diamond Segment Normal Flat Shape Core Drill Bit for Granite
Product parameters |

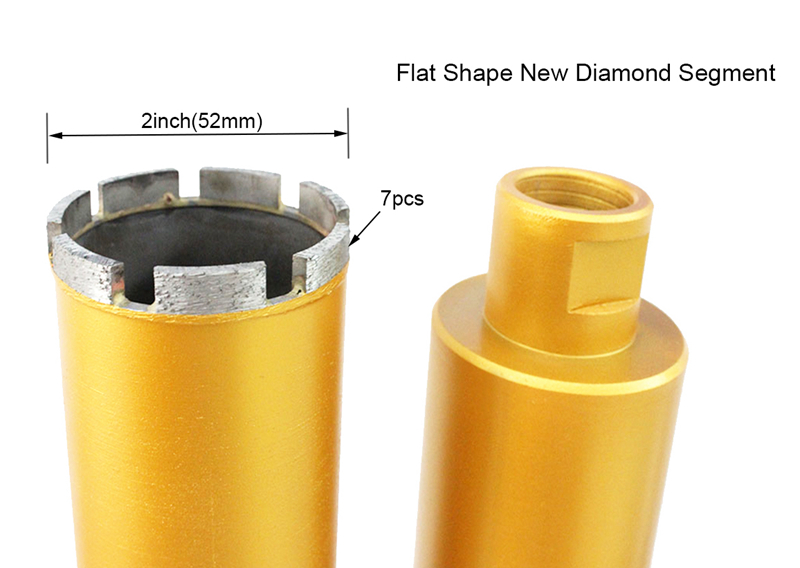

The following are the specifications of flat shape new diamond segment:
Code No. |
Diameter |
Segment Size |
Segment No. |
CD-DS-DB-S02 Normal Flat Shape |
1"(25mm) |
17/12x3.0x10 |
4 |
1.18"(30mm) |
17/12x3.0x10 |
4 |
|
1.25"(32mm) |
16x3.0x10 |
4 |
|
1.38"(35mm) |
16x3.0x10 |
4 |
|
1.50"(38mm) |
16x3.0x10 |
5 |
|
1.63"(42mm) |
16x3.0x10 |
5 |
|
1.75"(45mm) |
16x3.0x10 |
6 |
|
1.88"(48mm) |
16x3.0x10 |
6 |
|
2"(52mm) |
16x3.0x10 |
7 |
|
2.25"(57mm) |
22x3.5x10 |
5 |
|
2.50"(63mm) |
22x3.5x10 |
6 |
|
2.75"(70mm) |
22x3.5x10 |
7 |
|
3"(76mm) |
22x3.5x10 |
8 |
|
3.25"(82mm) |
22x3.5x10 |
9 |
|
3.50"(89mm) |
22x3.5x10 |
10 |
|
4"(102mm) |
22x3.5x10 |
10 |
|
4.25"(108mm) |
22x3.5x10 |
11 |
|
4.50"(114mm) |
22x3.5x10 |
11 |
|
4.75"(120mm) |
24x4.0x10 |
11 |
|
5"(127mm) |
24x4.0x10 |
11 |
Other specifications can be customized according to requirements.
