Boreway Metal Retipping Magnetic Drill Bit Holder For Core Drill Bit Segment

Add / Delete to Basket

Product parameters

Name:	Boreway Metal Retipping Magnetic Drill Bit Holder For Core Drill Bit Segment
Model Number:	BW-DS-DB-D52
Place of Origin:	Fujian,China
Brand Name:	BOREWAY
Segment No.:	5pcs
Diameter:	52mm
Segment Thickness:	3.5mm
Use:	Masonry Drilling
Segment Size:	24x4.5x10mm
4 position:	4 side clearance available
Application:	Braze for welding segment on core barrels

Product Description

Boreway Metal Retipping Magnetic Drill Bit Holder For Core Drill Bit Segment

Descriptions:

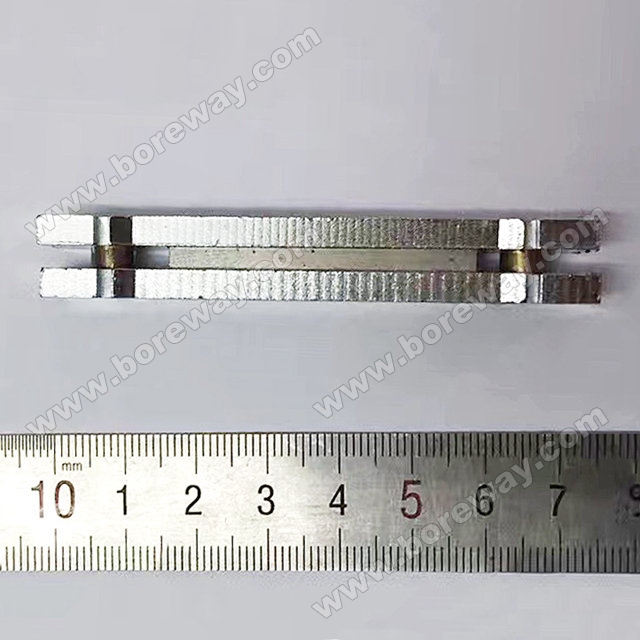

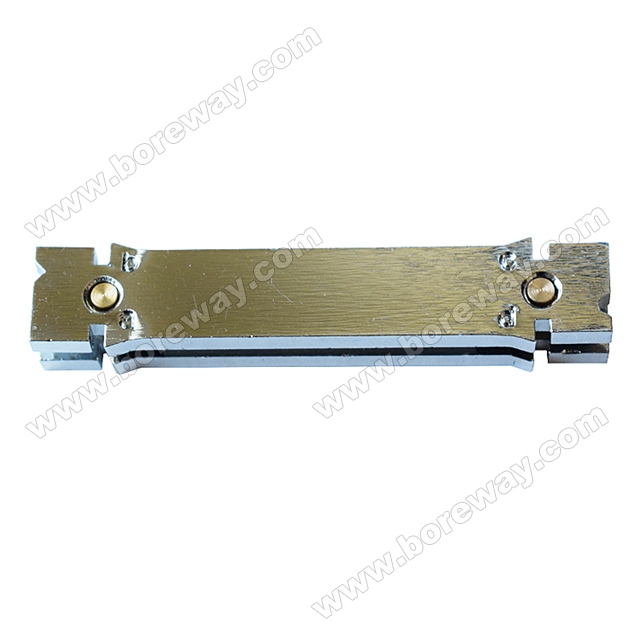

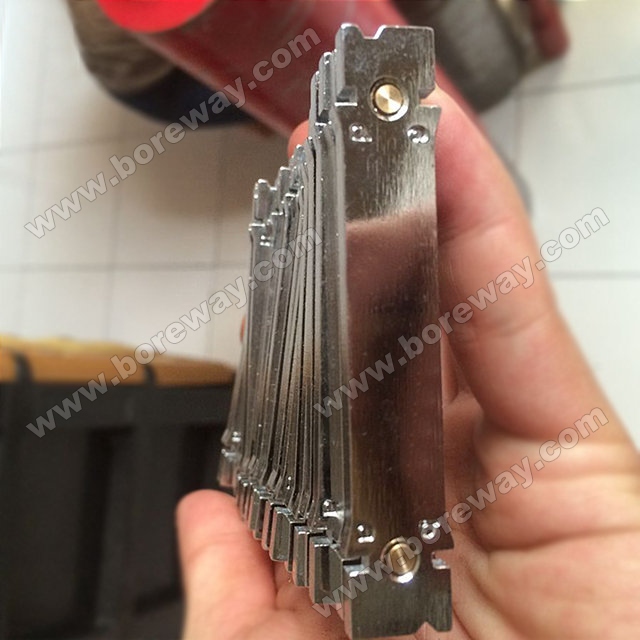

Metal retipping magnetic drill bit holder is used for brazing the segments onto the barrels.
Because the segments are usually 4mm thick and a barrel might be 2mm thick, this tool gives you the offset required when brazing your segments onto the barrel.

Boreway Metal Retipping Magnetic Drill Bit Holder For Core Drill Bit Segment

Specifications:

Normally when metal retipping magnetic drill bit holder,the rule is:

Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4

Following is the reference for the segment size and steel core width for metal retipping magnetic drill bit holder different diameter:

Diameter(mm)	Segment No.	Segmen Size(mm)	Segment Thickness	Steel Core Thickness
D25	3	15x3.5x9mm	3.5mm	2.0mm
D32	4	15x3.5x9mm	3.5mm	2.0mm
D38	5	20x3.5x9mm	3.5mm	2.0mm
D44	5	20x3.5x9mm	3.5mm	2.0mm
D52	5	24x3.5x10mm	3.5mm	2.0mm
D58	5	24x3.5x10mm	3.5mm	2.0mm
D63	6	24x3.5x10mm	3.5mm	2.0mm
D76	7	24x3.5x10mm	3.5mm	2.0mm
D89	8	24x3.5x10mm	3.5mm	2.0mm
D102	9	24x4.0x10mm	4.0mm	2.0mm
D108	10	24x4.0x10mm	4.0mm	2.5mm
D114	10	24x4.0x10mm	4.0mm	2.5mm
D127	11	24x4.0x10mm	4.0mm	2.5mm
D140	11	24x4.0x10mm	4.0mm	2.5mm
D152	12	24x4.0x10mm	4.0mm	2.5mm
D167	12	24x4.0x10mm	4.0mm	2.5mm
D180	14	24x4.5x10mm	4.5mm	3.0mm
D200	14	24x4.5x10mm	4.5mm	3.0mm
D230	15	24x4.5x10mm	4.5mm	3.0mm
D250	16	24x4.5x10mm	5.0mm	3.5mm

Specially designed tools are available for any standard apllication. We can

customize tools as per your exact needs.

metal retipping magnetic drill bit holder

Feature:

Under same bond conditions,metal retipping magnetic drill bit holder drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.

metal retipping magnetic drill bit holder

Applications:

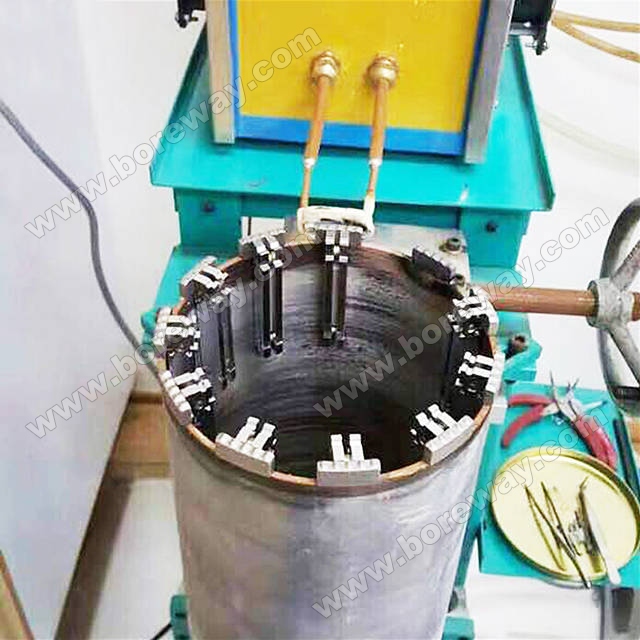

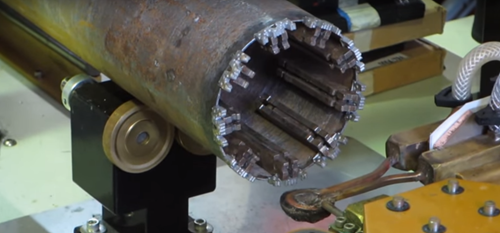

Braze for welding segment on core barrels

Relatsd Products:

Diamond segments with Cuspate Top of drill bits	Diamond Segments of Drill Bits

About us:

Boreway v Step Circular Diamond Saw Blade Segment For Block Of Cutting Granite Sandstone

Diamond saw blade segments of edge cutting for granite

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so

Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?

We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?

Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Please note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
