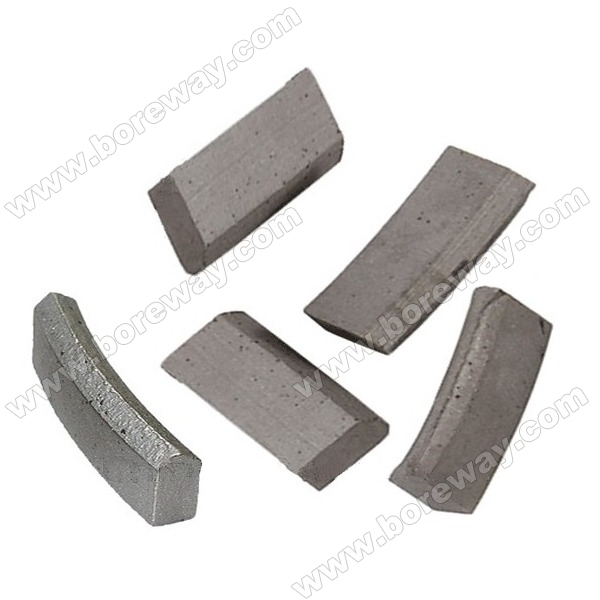

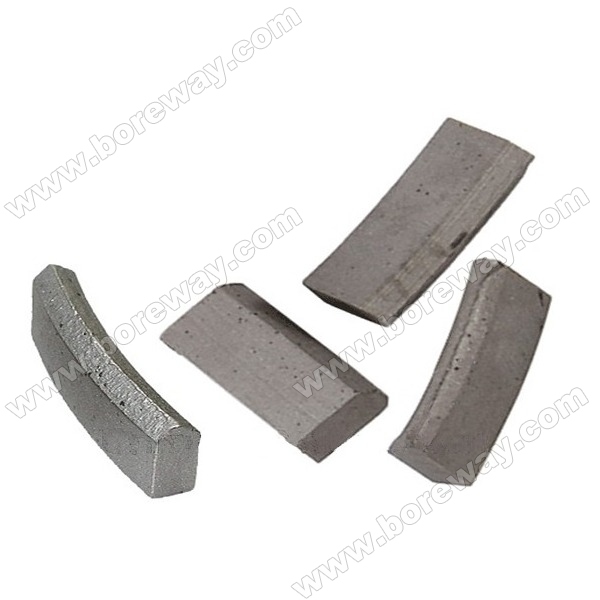

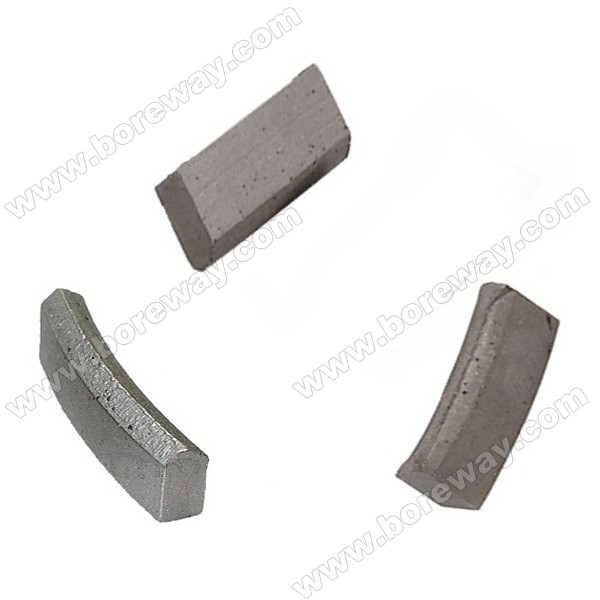

Diamond segments with Cuspate Top of drill bits

Product parameters
Name: Diamond segments with Cuspate Top of drill bits
Model Number: BW-DS-DB-S03
Type Wet or Dry Use
Dimension 32mm - 127mm
Industry Diamond tools
Usage drilling kinds of granite or hard stone
Machine drilling tools
drilling result Flat surface and even size
Advatage Good sharpness and Long lifespan
Welding Type Silver welding

Product Description


Diamond Segments of Drill Bits - Normal Flat with Cuspate Top Shape



Diamond segments with Cuspate Top of drill bits diameter 1-1/4" - 5" provide smooth and fast drilling.



Applications: Kinds of granite or hard stone.



Welding Type: Silver welding.



Wet or Dry Use.



Compared to normal flat segments, there is a cuspate top on the segments, with this structure initially the drilling speed is very fast.



The following are the normal Specifications we are selling:



Code No. Diameter Segment Size Segment No.
BW-DS-DB-S03           Cuspate Top Segment 1.25"(32mm) 16x3.0x14 4
1.38"(35mm) 16x3.0x14 4
1.50"(38mm) 16x3.0x14 5
1.63"(42mm) 16x3.0x14 5
1.75"(45mm) 16x3.0x14 6
1.88"(48mm) 16x3.0x14 6
2"(52mm) 16x3.0x14 7
2.25"(57mm) 24x3.5x14 5
2.50"(63mm) 24x3.5x14 6
2.75"(70mm) 24x3.5x14 7
3"(76mm) 24x3.5x14 8
3.25"(82mm) 24x3.5x14 9
3.50"(89mm) 24x3.5x14 10
4"(102mm) 24x3.5x14 10
4.25"(108mm) 24x3.5x14 11
4.50"(114mm) 24x3.5x14 11
4.75"(120mm) 24x3.5x14 11
5"(127mm) 24x3.5x14 11



The above specification & photos is only for Reference, other specification or design can be ordered by customers.

we can manufacture products upon clients' needs.
