Boreway Magnetic Welding Strong Magnet Holder Brazed Tool for Diamond Core Drill Bit Segments

Add / Delete to Basket

Product parameters

Name:	Boreway Magnetic Welding Strong Magnet Holder Brazed Tool for Diamond Core Drill Bit Segments
Model Number:	BW-DS-DB-D200
Place of Origin:	Fujian, China
Place of Origin:	Boreway
Brand Name:	14pcs
Segment Thickness:	4.5mm
Steel Core Thickness:	3.0mm
Side clearance:	0.5/0.75/1/1.25mm
Application:	Holding segments for retapping

Product Description

Boreway Magnetic Welding Strong Magnet Holder Brazed Tool for Diamond Core Drill Bit Segments

Feature:

Magnetic welding strong magnet holder are made of strong N35EH neodymium magnet with strong magnetism but also high resistance for heat.In the meantime,the retipping magnet are perfect for position the drilling segment in percise side clearance.

Also the inner side clearance can be adjust when you put the magnet in it's a,b,c,d position

4 side clearance available

Strong magnet for resisting high temperature

72.5mm overal length

With N35EH neodymium magnet

Boreway Magnetic Welding Strong Magnet Holder Brazed Tool for Diamond Core Drill Bit Segments

Magnetic welding metal magnet holder brazed tool

Advantage:

1. Magnetic welding metal magnet holder brazed tool lower the barrier of brazing diamond core drill bit, everyone will be an expert.

2. Accelerate efficiency of soldering diamond core bits.

3. Magnetic welding metal magnet holder brazed tool for precise positioning diamond core bit segments on barrels in the same circle, make diamond core bit drill more accurate.

4. Scientific design with 4 different sizes of side clearances, which can adapt to different side tolerance requirement.

5. Brazing magnets can be reused for several times, economical and environmental.

Boreway Magnetic Welding Magnet Holder Brazed Tool For Diamond Core Drill Bit Segment

Descriptions:

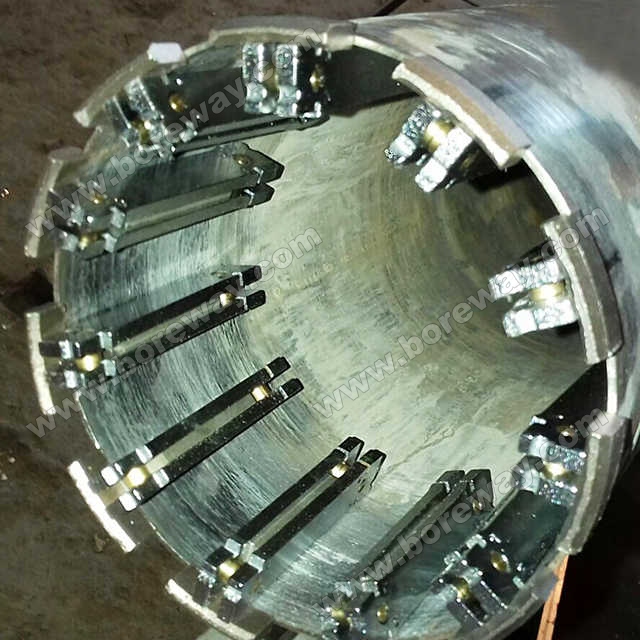

Magnetic welding strong magnet holder is used for setting diamond core bit segment on core bit barrel.

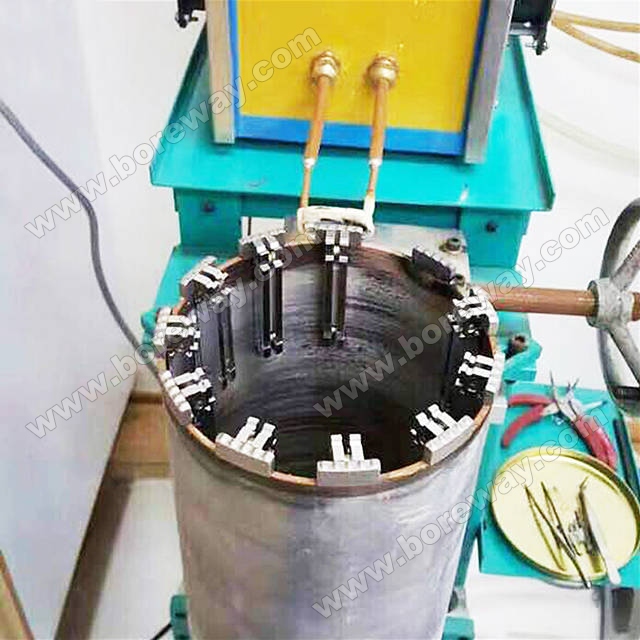

The brazing magnet gives you the setting required when brazing your segments onto the barrel.

Magnetic welding strong magnet holder are made of strong N35EH neodymium magnet with strong magnetism but also high resistance for heat.

In the meantime, the retipping magnet are suitable for position the drilling segment on precise side clearance.

Also the inner side clearance can be adjust when you put the magnet in its' position.

Specifications:

Normally when metal magnet holder for diamond core drill bit,the rule is:

Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4

The following specifications of magnetic welding strong magnet holder:

Diameter(mm)	Segment No.	Segment Size(mm)	Segment Thickness	Steel Core Thickness
D25	3	15x3.5x9mm	3.5mm	2.0mm
D32	4	15x3.5x9mm	3.5mm	2.0mm
D38	5	20x3.5x9mm	3.5mm	2.0mm
D44	5	20x3.5x9mm	3.5mm	2.0mm
D52	5	24x3.5x10mm	3.5mm	2.0mm
D58	5	24x3.5x10mm	3.5mm	2.0mm
D63	6	24x3.5x10mm	3.5mm	2.0mm
D76	7	24x3.5x10mm	3.5mm	2.0mm
D89	8	24x3.5x10mm	3.5mm	2.0mm
D102	9	24x4.0x10mm	4.0mm	2.0mm
D108	10	24x4.0x10mm	4.0mm	2.5mm
D114	10	24x4.0x10mm	4.0mm	2.5mm
D127	11	24x4.0x10mm	4.0mm	2.5mm
D140	11	24x4.0x10mm	4.0mm	2.5mm
D152	12	24x4.0x10mm	4.0mm	2.5mm
D167	12	24x4.0x10mm	4.0mm	2.5mm
D180	14	24x4.5x10mm	4.5mm	3.0mm
D200	14	24x4.5x10mm	4.5mm	3.0mm
D230	15	24x4.5x10mm	4.5mm	3.0mm
D250	16	24x4.5x10mm	5.0mm	3.5mm

Other specifications are available upon request.

Applications:

Magnetic welding strong magnet holder for Holding segments for retapping

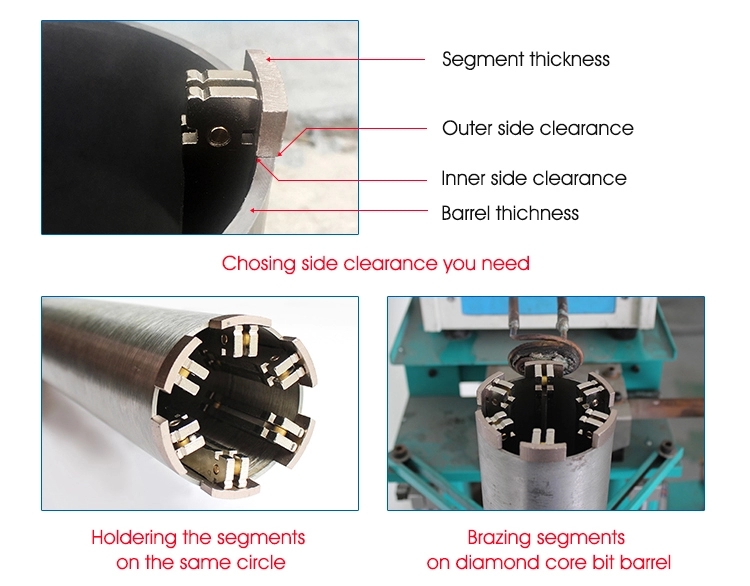

When brazing diamond core drill bit segment, the rule of clearance as follows,

Inner side clearance=(segment thickness- steel core thickness)x0.4
Outer side clearance=(segment thickness- steel core thickness)x0.6

Relatsd Products:

Diamond segments

with Cuspate Top of drill bits

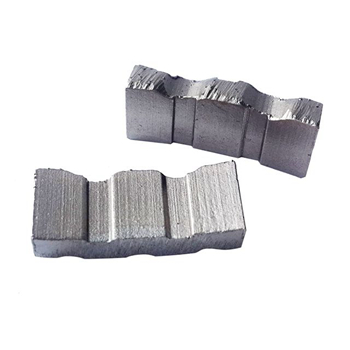

Turbo Core Bit Diamond Segment

Magnetic welding metal magnet holder brazed tool

About us:

Boreway Magnetic Welding Strong Magnet Holder Brazed Tool for Diamond Core Drill Bit Segments

Diamond saw blade segments of edge cutting for granite

Our serice:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?

Please test in a very small order and then you will know the quality. Now, so

Many people in the world use Chinese products because of their high quality and high quality.
competitive price. We are a professional diamond tool manufacturer.
In any case, for more than 8 years, confirm the quality of our products, small test orders will be tested
necessary.

2.Can you provide samples for free?

We do not provide free samples. Based on years of experience, we believe that people will get them.
By paying for samples, we will cherish and appreciate the more they get. We would have been
Be prepared to offer our potential customers a special discount for participating in the test.
It is very important to provide feedback to us and we will be very grateful.

3. Does your company accept customization?

Of course, we accept it. Includes different colors, gravel, etc. We can also tag your own logo
And the brand on the board. You want us to produce any new products for you, just send us your products.
Drawing or sample, we produce the same. We will not sell such products to others
Only customers can get a license.

Please note:

1. Please provide items before purchase.

2. Please provide the model number before purchase.

3. Other specifications can be customized according to requirements.
