Boreway 24x4.0x10mm Turbo Core Bit Diamond Segment For Concrete Granite Manufacturer

Product parameters
Name: Boreway 24x4.0x10mm Turbo Core Bit Diamond Segment For Concrete Granite Manufacturer
Model Number: BW-DSDB-S04-24
Place of Origin: Fujian, China
Brand Name: Boreway
Segment No.: 16pcs
Diameter: 7inch(178mm)
Type: Core Drill Bit
Material: Diamond
Segment Size: 24x4.0x10mm
Applications: Concrete ,Granite,Marble
Technology: Cold pressed and Hot pressed Sintered
Machinery: Hydraulic power drilling machines, Electric hand-held drills.

Product Description


Boreway 24x4.0x10mm Turbo Core Bit Diamond Segment For Concrete Granite Manufacturer




Descriptions:

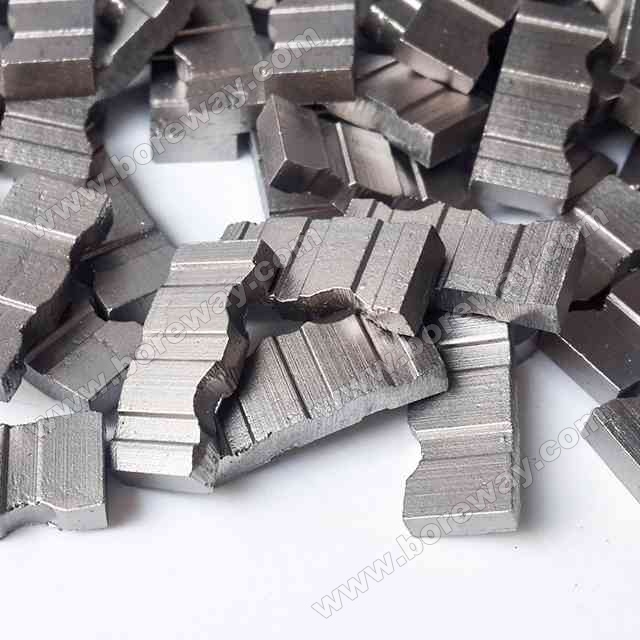

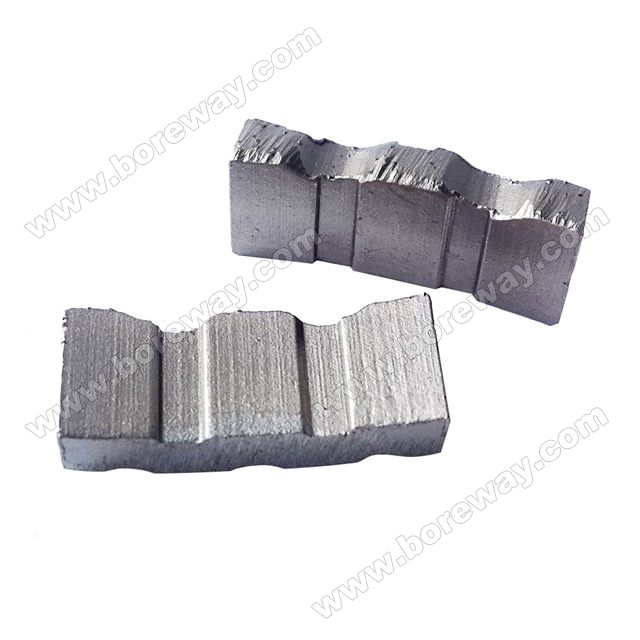

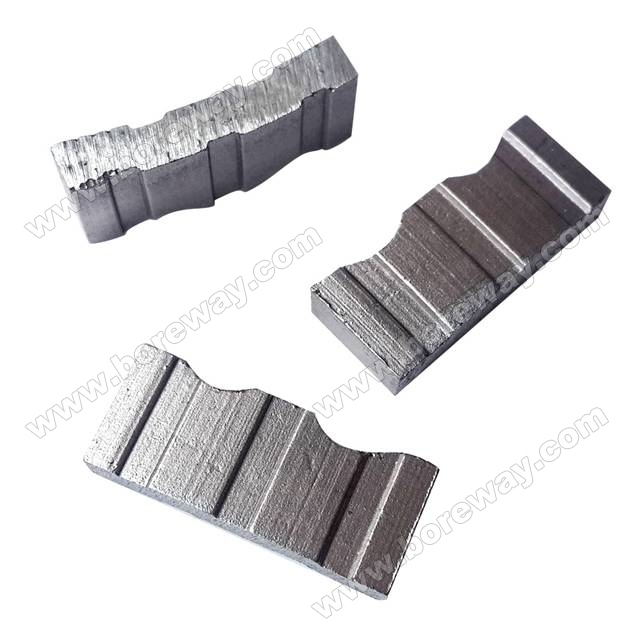

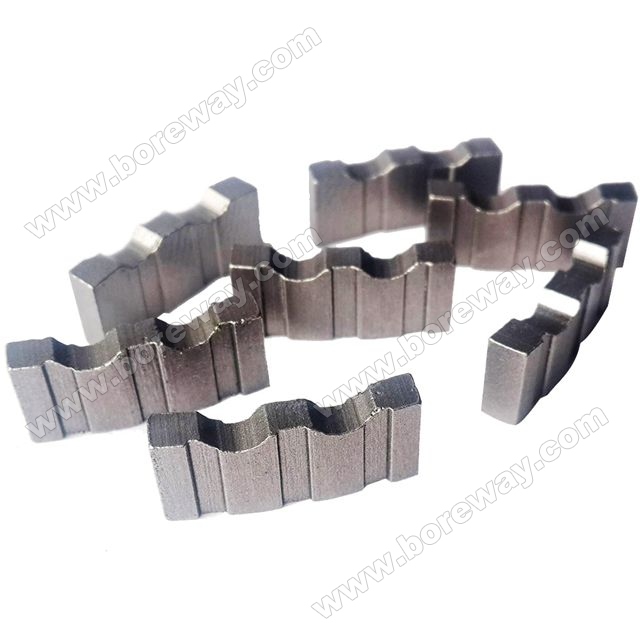

Diamond Segments of Drill Bits - Turbo Shape


24x4.0x10mm turbo core bit diamond segment of cured reinforced concrete with hard to soft aggregates granite,marble, green concrete or abrasive material.

Boreway 24x4.0x10mm Turbo Core Bit Diamond Segment For Concrete Granite Manufacturer
Specifications:
The following are normal specifications 24x4x10mm turbo core bit diamond segment:



Code No.

Diameter

Segment Size

Segment No.

BW-DSDB-S04-01

1.25"(32mm)

16x3.0x10

4

BW-DSDB-S04-02

1.38"(35mm)

16x3.0x10

4

BW-DSDB-S04-03

1.50"(38mm)

16x3.0x10

5

BW-DSDB-S04-04

1.63"(42mm)

16x3.0x10

5

BW-DSDB-S04-05

1.75"(45mm)

16x3.0x10

6

BW-DSDB-S04-06

1.88"(48mm)

16x3.0x10

6

BW-DSDB-S04-07

2"(52mm)

16x3.0x10

7

BW-DSDB-S04-08

2.25"(57mm)

24x3.5x10

5

BW-DSDB-S04-09

2.50"(63mm)

24x3.5x10

6

BW-DSDB-S04-10

2.75"(70mm)

24x3.5x10

7

BW-DSDB-S04-11

3"(76mm)

24x3.5x10

8

BW-DSDB-S04-12

3.25"(82mm)

24x3.5x10

9

BW-DSDB-S04-13

3.50"(89mm)

24x3.5x10

10

BW-DSDB-S04-14

4"(102mm)

24x3.5x10

10

BW-DS-DB-S04-15

4.25"(108mm)

24x3.5x10

11

BW-DSDB-S04-16

4.50"(114mm)

24x3.5x10

11

BW-DSDB-S04-17

4.75"(120mm)

24x4.0x10

11

BW-DSDB-S04-18

5"(127mm)

24x4.0x10

11

BW-DSDB-S04-19

5.5"(140mm)

24x4.0x10

12

BW-DSDB-S04-20

5.75"(146mm)

24x4.0x10

13

BW-DSDB-S04-21

6"(152mm)

24x4.0x10

13

BW-DSDB-S04-22

6.25"(159mm)

24x4.0x10

14

BW-DSDB-S04-23

6.5"(165mm)

24x4.0x10

15

BW-DSDB-S04-24

7"(178mm)

24x4.0x10

16

BW-DSDB-S04-25

8"(203mm)

24x4.5x10

18

BW-DSDB-S04-26

9"(229mm)

24x4.5x10

20

BW-DSDB-S04-27

10"(254mm)

24x4.5x10

23

BW-DSDB-S04-28

11"(280mm)

24x5.0x10

25

BW-DSDB-S04-29

12"(305mm)

24x5.0x10

27

BW-DSDB-S04-30

13"(330mm)

24x5.5x10

30

BW-DSDB-S04-31

14"(356mm)

24x5.5x10

32

Other specifications can be customized according to requirements.

 Advantages:

1. Our bit bits use diamond sheet material and metal matrix (Ti+Cr+Ni+Co, etc.) to form chemical bonds, which can reduce threshing, improve the edge, and prolong service life.

2. Combining grinding with edge drilling (high strength diamond), the drilling performance is optimized.

3.The cutter head has good sharpness, fast drilling speed and high efficiency.

4. Good wear resistance, long service life, high comprehensive price ratio!

Note: the operator is required to add a certain amount of cooling water, and the spray flow should be large, so that it has better cooling effect, so as to improve the service life of the drill and reduce the cost!

Applications:

24x4x10mm turbo core bit diamond segment for cured reinforced concrete with hard to soft aggregates granite,marble, green concrete or abrasive material.

 Machines for drilling bits:

Turbo type diamond segments for reinforced core drill
