Boreway Factory Price Diamond Core Drill Bit Magnet Holder for Welding Segment Manufacturer

Product parameters
Name: Boreway Factory Price Diamond Core Drill Bit Magnet Holder for Welding Segment Manufacturer
Model Number: BW-DS-DB-D230
Place of Origin: Fujian, China
Brand Name: BOREWAY
Segment No.: 15pcs
Steel Core Thickness: 3mm
Segment Thickness: 4.5mm

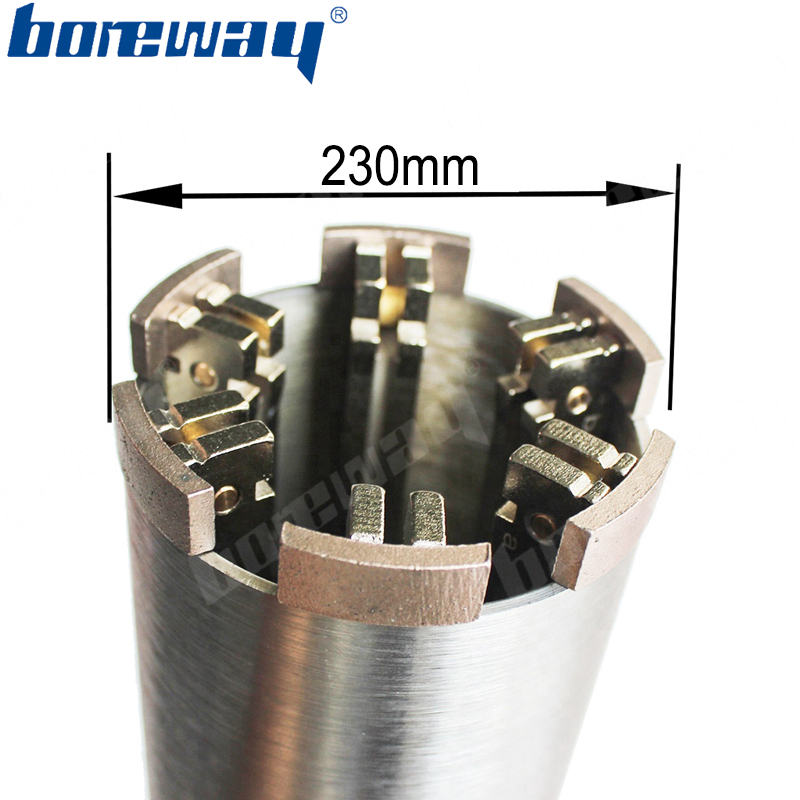

Diameter: 230mm

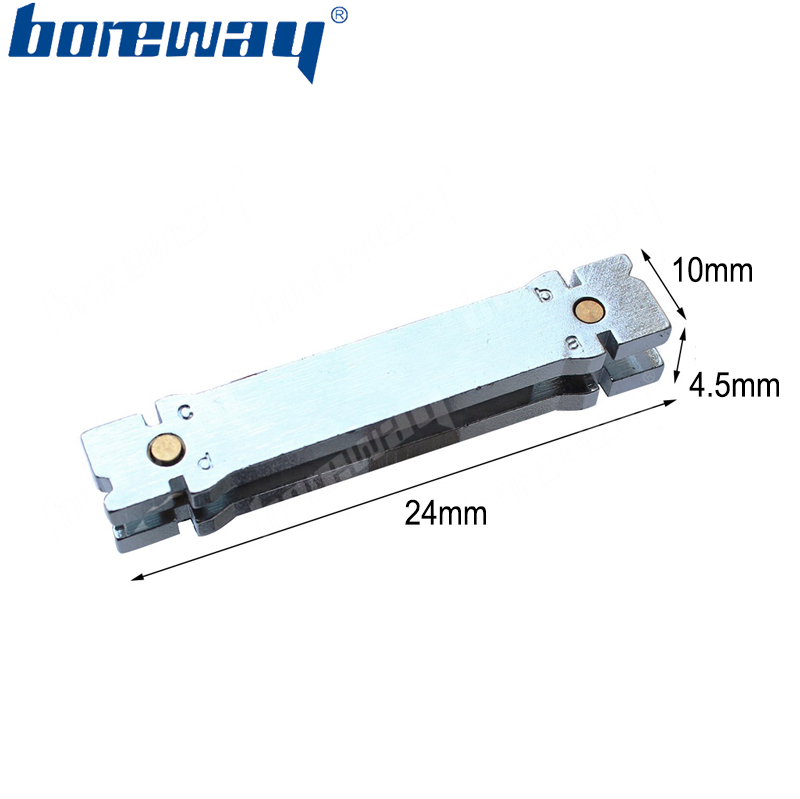

Segment Size: 24x4.5x10mm
Material: Diamond
Application: Braze for welding segment on core barrels

Product Description


Boreway Factory Price Diamond Core Drill Bit Magnet Holder for Welding Segment Manufacturer




Descriptions:

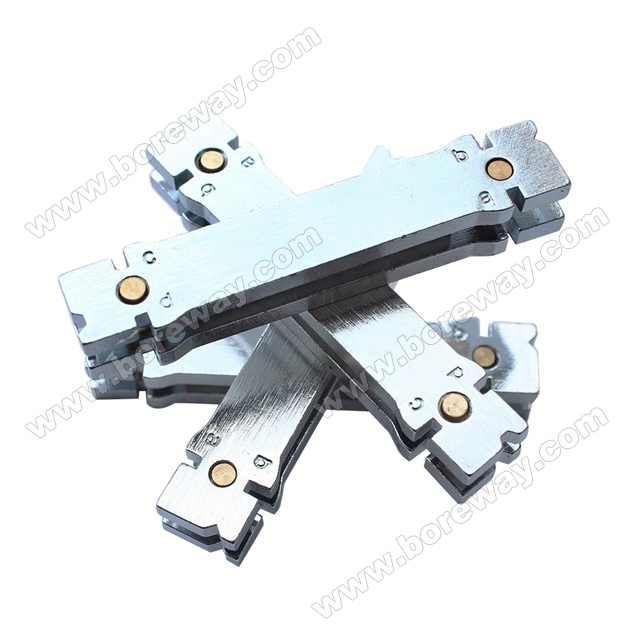

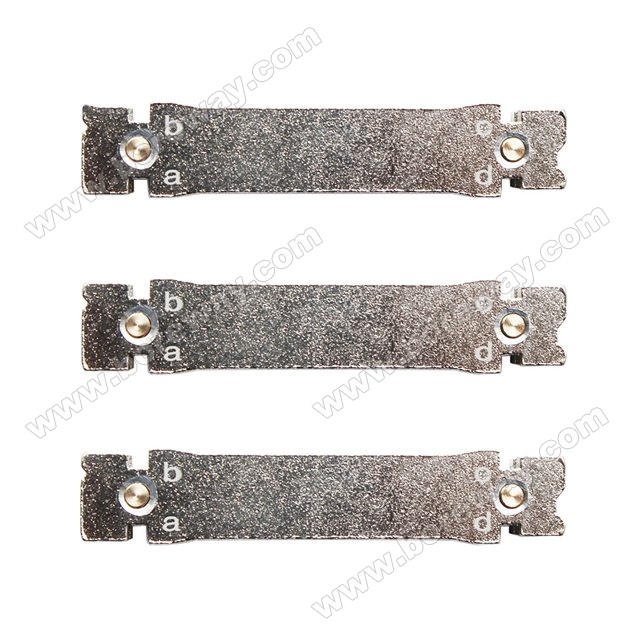

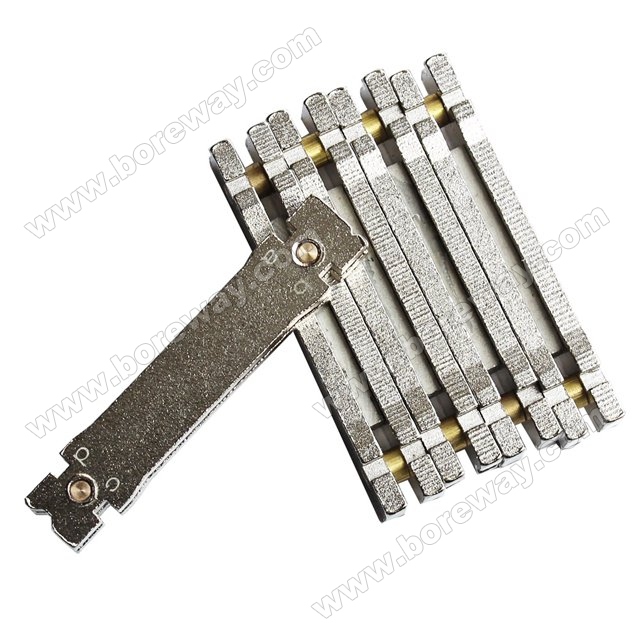

Factory price diamond core drill bit magnet holder is used for brazing the segments onto the barrels.

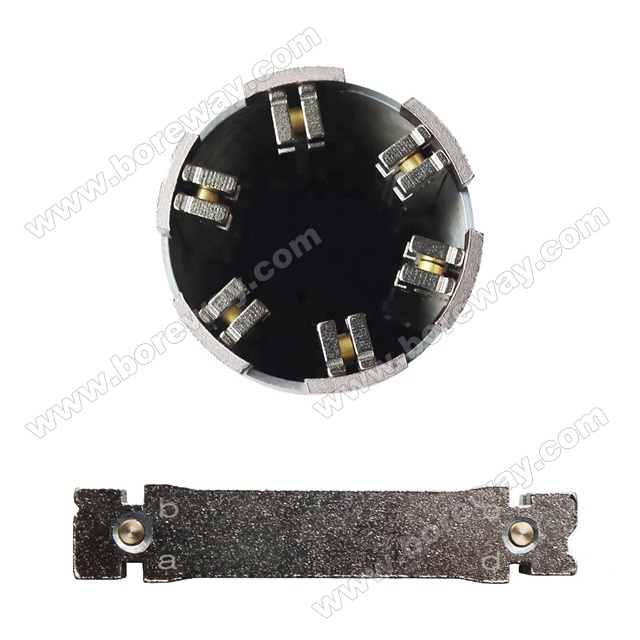

Because the segments are usually 4mm thick and a barrel might be 2mm thick, this tool gives you the offset required when brazing your segments onto the barrel.




 Boreway Factory Price Diamond Core Drill Bit Magnet Holder for Welding Segment Manufacturer




Specifications:

Normally when brazing the segment,the rule is:
Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4
Following is the reference for the segment size and steel core width for factory price diamond core drill bit magnet holder different diameter:
Diameter(mm)
Segment No.
Segmen Size(mm)
Segment Thickness
Steel Core Thickness
D25
3
15x3.5x9mm
3.5mm
2.0mm
D32
4
15x3.5x9mm
3.5mm
2.0mm
D38
5
20x3.5x9mm
3.5mm
2.0mm
D44
5
20x3.5x9mm
3.5mm
2.0mm
D52
5
24x3.5x10mm
3.5mm
2.0mm
D58
5
24x3.5x10mm
3.5mm
2.0mm
D63
6
24x3.5x10mm
3.5mm
2.0mm
D76
7
24x3.5x10mm
3.5mm
2.0mm
D89
8
24x3.5x10mm
3.5mm
2.0mm
D102
9
24x4.0x10mm
4.0mm
2.0mm
D108
10
24x4.0x10mm
4.0mm
2.5mm
D114
10
24x4.0x10mm
4.0mm
2.5mm
D127
11
24x4.0x10mm
4.0mm
2.5mm
D140
11
24x4.0x10mm
4.0mm
2.5mm
D152
12
24x4.0x10mm
4.0mm
2.5mm
D167
12
24x4.0x10mm
4.0mm
2.5mm
D180
14
24x4.5x10mm
4.5mm
3.0mm
D200
14
24x4.5x10mm
4.5mm
3.0mm
D230
15
24x4.5x10mm
4.5mm
3.0mm
D250
16
24x4.5x10mm
5.0mm
3.5mm
Specially designed tools are available for any standard apllication. We can
customize tools as per your exact needs.


Feature:

Under same bond conditions, factory price diamond core drill bit magnet holder drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.

Boreway Factory Price Diamond Core Drill Bit Magnet Holder for Welding Segment Manufacturer


Applications:

Braze for welding segment on core barrels

Relatsd Products:

Diamond Segments of Multi-Saw blades for Granite Block Cutting
Factory Price 2000mm Diamond Segment for Marble Cutting Discs
