Boreway Core Drill Bit Spare Part Diamond Segment for Reinforce Concrete

Product parameters
Name: Boreway Core Drill Bit Spare Part Diamond Segment for Reinforce Concrete
Model Number: BW-DS-DB-C02-32
Place of Origin: Fujian, China(Mainland)
Brand Name: BOREWAY
Segment No.: 27pcs
Diamond: 12inch,305mm
Segment size: 24x5.0x10mm
Features: Sharp and long life
Material: Diamond,metal powder,Co,Ni,etc
Application: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.

Product Description


Boreway Core Drill Bit Spare Part Diamond Segment for Reinforce Concrete





 Descriptions:



Diamond Segments of Drill Bits - Normal Flat Shape



Core drill bit spare part diamond segment normal flat shape of drill bits diameter 22mm-356mm provide smooth and fast drilling for kinds of concrete.
 Specifications:



The following specifications of core drill bit spare part diamond segment:

Code No.

Diameter

Segment Size

Segment No.

BW-DS-DB-C02-01

7/8"(22mm)

17/12x3.0x10

3

BW-DS-DB-C02-02

1"(25mm)

17/12x3.0x10

4

BW-DS-DB-C02-03

1.18"(29mm)

17/12x3.0x10

4

BW-DS-DB-C02-04

1.25"(32mm)

16x3.0x10

4

BW-DS-DB-C02-05

1.38"(35mm)

16x3.0x10

4

BW-DS-DB-C02-06

1.50"(38mm)

16x3.0x10

5

BW-DS-DB-C02-07

1.63"(42mm)

16x3.0x10

5

BW-DS-DB-C02-08

1.75"(45mm)

16x3.0x10

6

BW-DS-DB-C02-09

1.88"(48mm)

16x3.0x10

6

BW-DS-DB-C02-10

2"(52mm)

16x3.0x10

7

BW-DS-DB-C02-11

2.25"(57mm)

22x3.5x10

5

BW-DS-DB-C02-12

2.50"(63mm)

22x3.5x10

6

BW-DS-DB-C02-13

2.75"(70mm)

22x3.5x10

7

BW-DS-DB-C02-14

3"(76mm)

22x3.5x10

8

BW-DS-DB-C02-15

3.25"(82mm)

22x3.5x10

9

BW-DS-DB-C02-16

3.50"(89mm)

22x3.5x10

10

BW-DS-DB-C02-17

4"(102mm)

22x3.5x10

10

BW-DS-DB-C02-18

4.25"(108mm)

22x3.5x10

11

BW-DS-DB-C02-19

4.50"(114mm)

22x3.5x10

11

BW-DS-DB-C02-20

4.75"(120mm)

24x4.0x10

11

BW-DS-DB-C02-21

5"(127mm)

24x4.0x10

11

BW-DS-DB-C02-22

5.5"(140mm)

24x4.0x10

12

BW-DS-DB-C02-23

5.75"(146mm)

24x4.0x10

13

BW-DS-DB-C02-24

6"(152mm)

24x4.0x10

13

BW-DS-DB-C02-25

6.25"(159mm)

24x4.0x10

14

BW-DS-DB-C02-26

6.5"(165mm)

24x4.0x10

15

BW-DS-DB-C02-27

7"(178mm)

24x4.0x10

16

BW-DS--DB-C02-28

8"(203mm)

24x4.5x10

18

BW-DS-DB-C02-29

9"(229mm)

24x4.5x10

20

BW-DS-DB-C02-30

10"(254mm)

24x4.5x10

23

BW-DS-DB-C02-31

11"(280mm)

24x5.0x10

25

BW-DS-DB-C02-32

12"(305mm)

24x5.0x10

27

BW-DS-DB-C02-33

13"(330mm)

24x5.5x10

30

BW-DS-DB-C02-34

14"(356mm)

24x5.5x10

32
Other specifications are available upon request.

 Applications:

Core drill bit spare part diamond segment with hard to soft aggregates, green concrete or abrasive material.

Welding Type: Silver or Laser.

Wet Use.

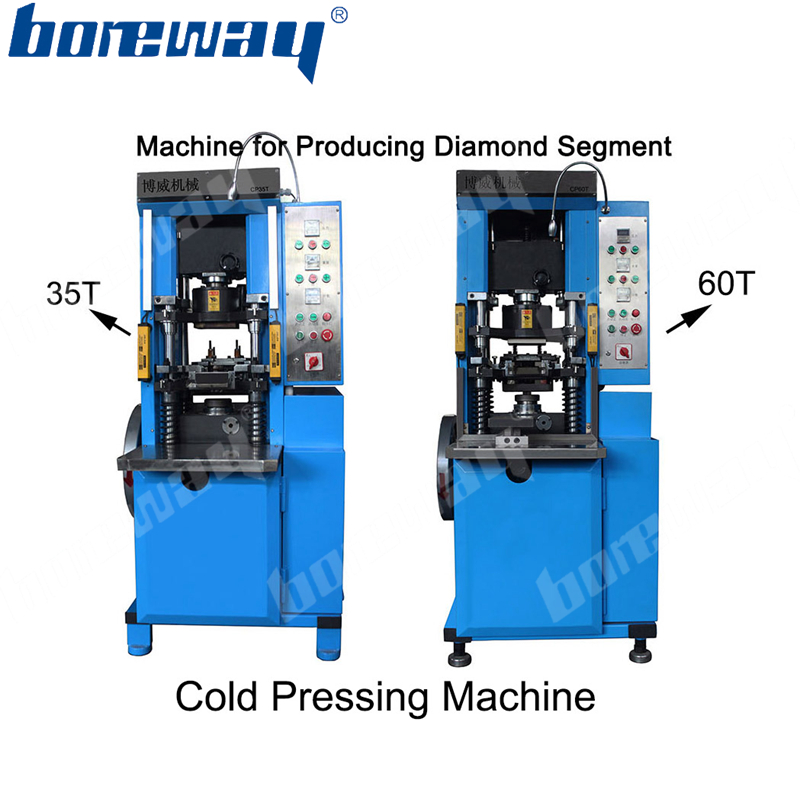

 Machine for making cutter Segment:


 20mm height black diamond granite cutting segment tips for make machine

Machine for welding the cutter segment base:

 20mm height black diamond granite cutting segment tips for machine
