Boreway 900mm Silver Welding Wet Use Saw Blade For Stone

Add / Delete to Basket

Product parameters

Name:	Boreway 900mm Silver Welding Wet Use Saw Blade For Stone
Model Number:	BW-SBM-09
Place of Origin:	Fujian, China(Mainland)
Brand Name:	BOREWAY
Size:	900mm
Length:	24mm
Thickness:	5mm
Segment No.:	64pcs
Height:	8,10,12mm
Application:	Cutting Granite, Marble,
Shape:	Normal, Turbo; Sandwich,Groove,etc

Product Description

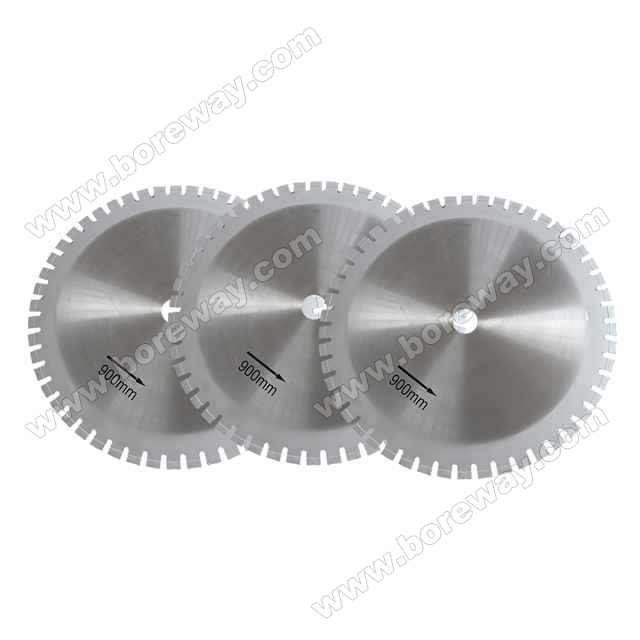

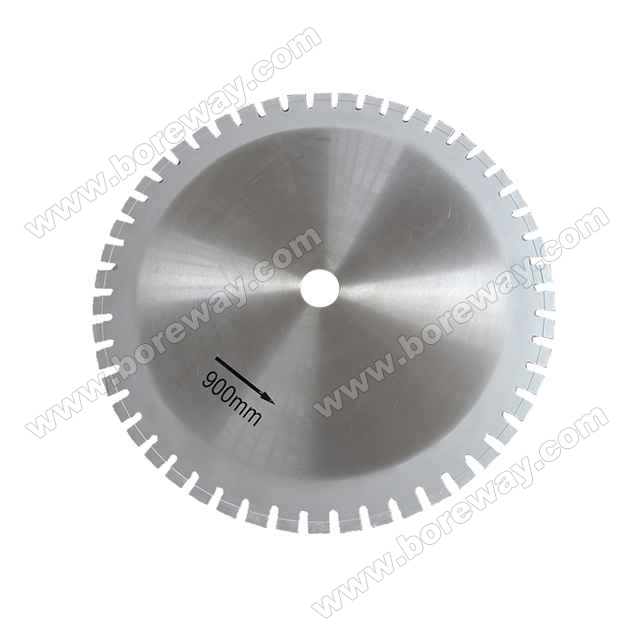

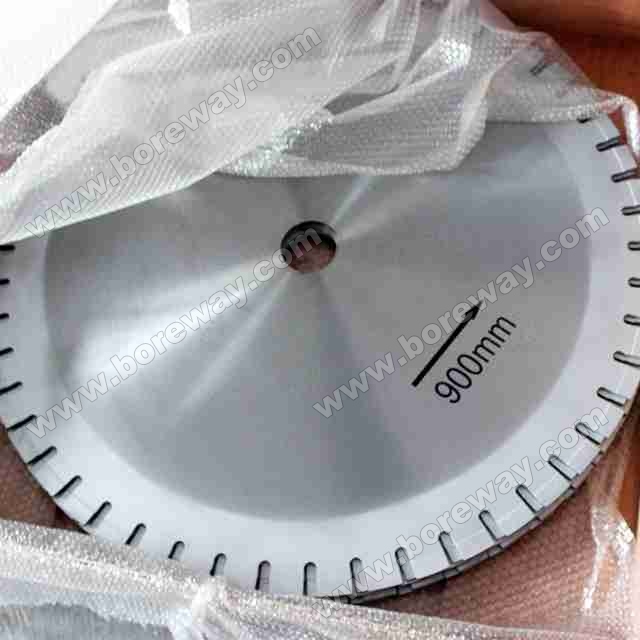

Boreway 900mm Silver Welding Wet Use Saw Blade For Stone

Feature:

1. Fast cutting and long life & Stable performance, High grade of diamonds

2. Different bonds are for different applications and precise segment size

3. Working safe, quiet, and precise, reducing cutting & working time

4. Great adaptability and No chipping

Description：

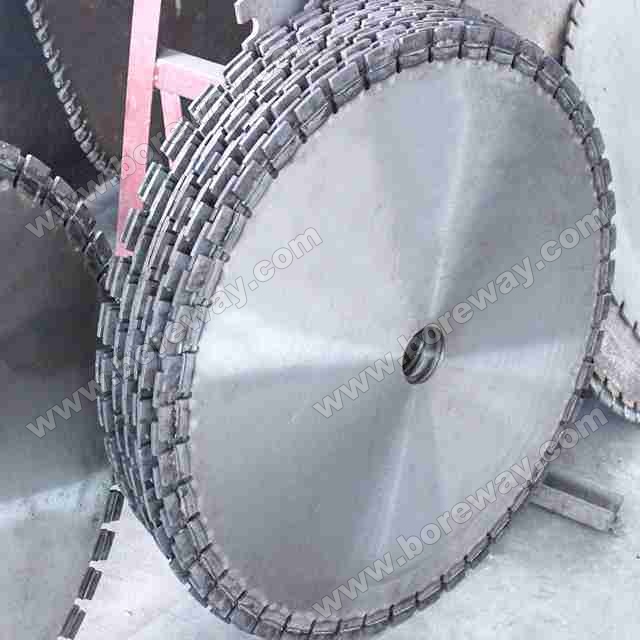

900mm silver welding wet use saw blade for block cutting of marble, limestone, slate, kinds of soft stone without quartz, suitable for bridge cutting machine, single arm machine.

Diamond segments or rims are made up of a mixture of diamonds and metal powders. diamonds used in blades are almost exclusively manufactured diamonds in various grit size and quality grades.

The application of bond (or Matrix)
1.Typically the following rule applies :
2.For hard materials : use soft bonds.
3.For soft materials : use hard bonds.

Example:
Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.

Specification：

The following specifications of 900mm silver welding wet use saw blade:

Diameter (mm)	Segment Dimension (L × W × H)			Steel Core Thickness	Segment No.	Segment Structure
Diameter (mm)	Length	W (Taper Type)	Height	Steel Core Thickness	Segment No.	Segment Structure
900	24	6.5	8/10/12	5.0mm	64	Mixed Powder or Sandwich
1000	24	7.0	8/10/12	5.0mm	70
1200	24/40	7.5	8/10/12	5.5mm	80
1300	24/40	8.0	8/10/12	6.0mm	88
1350	24/40	8.0	8/10/12	6.0mm	88
1400	24/40	8.5	8/10/12	6.5mm	96
1600	24/40	9.0	8/10/12	6.5mm	104/108
1800	24	9.5	10/12	7.0mm	120
2000	24	10.5	10/12	8.0mm	128

Other size is available as per requst.

FAQ

1. How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality.

At present,so many people in the world to use Chinese products, because

of the high quality and most competitive prices. We are professional

manufacturer in supplying diamond tools for more than 8 years. Anyway,

confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we

think people get the samples by paying, they will cherish and appreciate

more what they get. But we are willing to give our potential customers a

special discount which they are used to do a testing. It is very important

to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including different color, grit etc. We also can mark

your ownlogo and brand on the pad. Any new productsyou want us to

produce for you, just send us your drawing or sample, we will produce

the same one. We will not sell this kind of products to other customers

only if we get your permission.

ABOUT FEEDBACK

Please confirm the receipt of the products after you got them. If you

have any question about the products you received, please

contactus in time and we will try our best to solve the problem

and make you satisfied.
