Boreway 900mm Large Diamond Tip Circular Saw Blade For Sandstone

Add / Delete to Basket

Product parameters

Name:	Boreway 900mm Large Diamond Tip Circular Saw Blade For Sandstone
Model Number:	BW-SBG-01
Place of Origin:	Fujian, China
Brand Name:	BOREWAY
Length:	24mm
Segment No.：	64pcs
Size:	900mm
Blade Material:	Diamond
Manufacturing	High Frequency Welding/Laser Welding
Application:	Cutting concrete,reinforced concrete,granite,marble,sandstone etc

Product Description

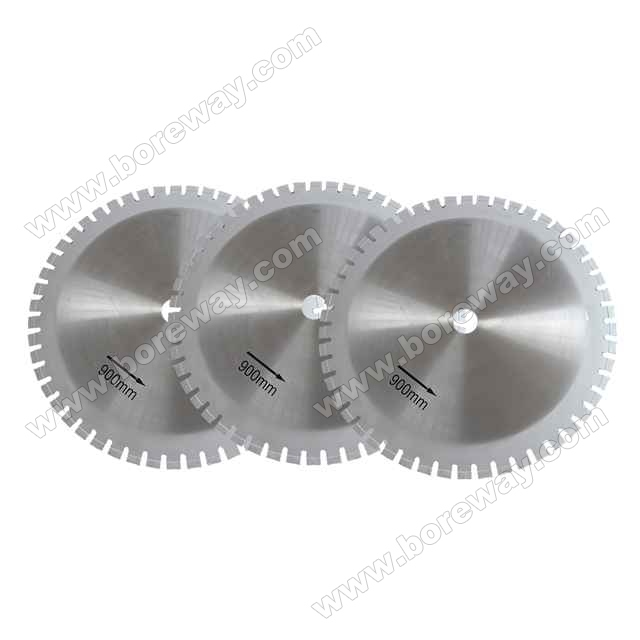

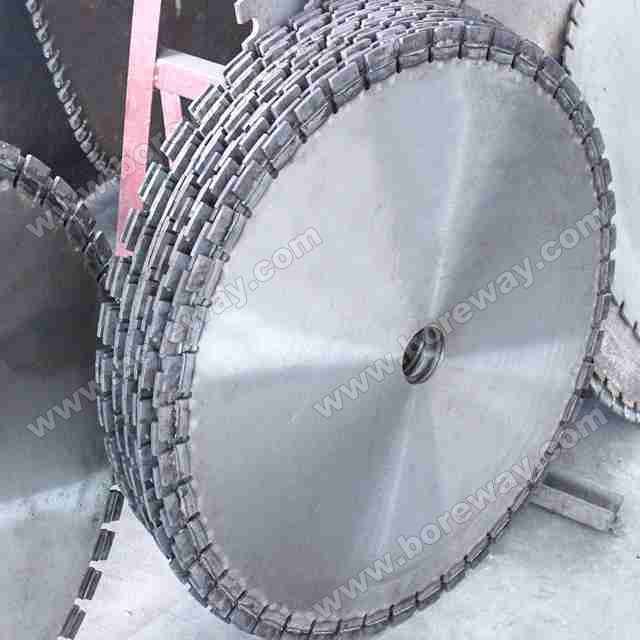

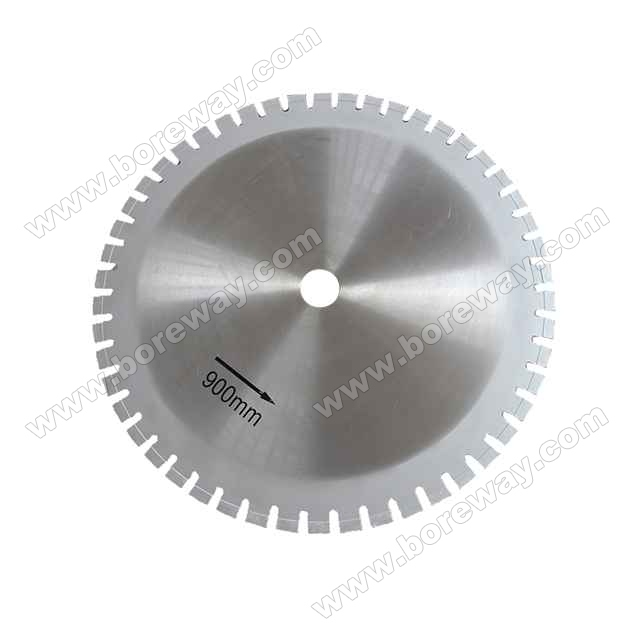

Boreway 900mm Large Diamond Tip Circular Saw Blade For Sandstone

Descriptiion:

900mm large diamond tip circular saw blade For Block Cutting Of Granite, Sandstone, Slate, Kinds Of Hard Stone With Quartz, Suitable For Bridge Cutting Machine And Single Arm Machine.

The application of bond (or Matrix)
- Typically the following rule applies :
- For hard materials : use soft bonds.
- For soft materials : use hard bonds.

Example :
Limestone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond

Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.

Specification:

The followings are our normal sizes of our 900mm large diamond tip circular saw blade:

Single/Multi blades segment dimension
Diameter （mm）		Length	W (Taper Type)	Height	Segment No.	Segment Structure
36”	900	24	6.0/6.8	12/15/20	64	Multi-Layers or Sandwich
40”	1000	24	6.4/7.2	12/15/20	70
48”	1200	24	6.5/7.5	12/15/20	80
56”	1400	24	7.5/8.5	12/15/20	92
64”	1600	24	8.4/9.2	12/15/20	108
72”	1800	24	9.2/10	12/15/20	120
80”	2000	24	9.5/10.5	12/15/20	128
88”	2200	24	10.5/11.5	12/15/20	132
100”	2500	24	11.5/12.5	12/15/20	140
120”	3000	24	12.5/13.5	12/15/20	160
140”	3500	24	12.5/13.5	12/15/20	180
Other specifications of diamond segment are available upon request.

FAQ

1. How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality.

At present,so many people in the world to use Chinese products, because

of the high quality and most competitive prices. We are professional

manufacturer in supplying diamond tools for more than 8 years. Anyway,

confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we

think people get the samples by paying, they will cherish and appreciate

more what they get. But we are willing to give our potential customers a

special discount which they are used to do a testing. It is very important

to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including different color, grit etc. We also can mark

your ownlogo and brand on the pad. Any new productsyou want us to

produce for you, just send us your drawing or sample, we will produce

the same one. We will not sell this kind of products to other customers

only if we get your permission.

ABOUT FEEDBACK

Please confirm the receipt of the products after you got them. If you

have any question about the products you received, please

contactus in time and we will try our best to solve the problem

and make you satisfied.
