Boreway 7 Inch Diamond Dry Cutter Saw Blade For Granite

Add / Delete to Basket

Product parameters

Name:	Boreway 7 Inch Diamond Dry Cutter Saw Blade For Granite
Model Number:	BW-DC-01-05
Place of Origin:	Fujian, China (Mainland)
Brand Name:	BOREWAY
Segment Thickness:	2.2mm
Segment Height:	8/10mm
Size:	7inch,180mm
Application:	For granite, marble, sandstone, limestone
Machine:	For bridge cutting machine,table cutting machine

Product Description

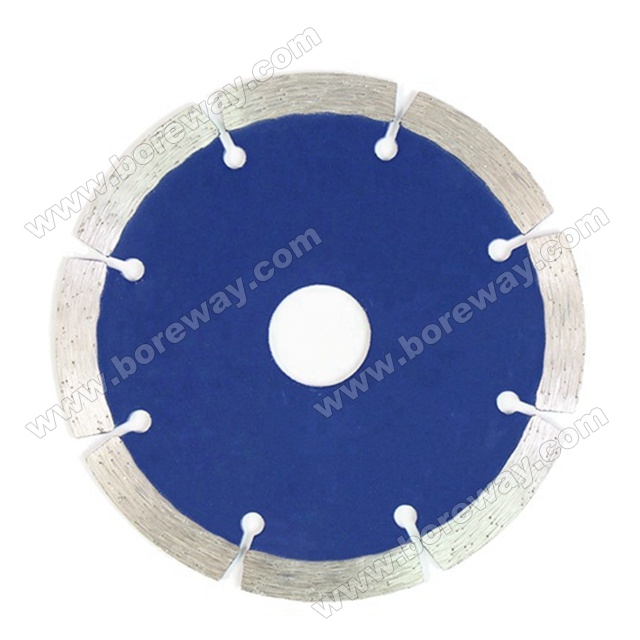

Boreway 7 Inch Diamond Dry Cutter Saw Blade For Granite

Description：

7 inch diamond dry cutter saw blade, diameter from 4"(105mm) - 9"(230mm), for fast cutting kinds of hard, medium hard, soft stone, like Granite, Marble, Sandstone, Limestone etc., and other construction materials like Concrete, Asphalt, Ceramic, Porcelain, Bricks, etc.

Advantage:

1.Can be required by clients

2.Stable, fast cutting,no chipping

3.Different stone different formula

2.Factory direct sale, Reasonable price, Good service

Specification:

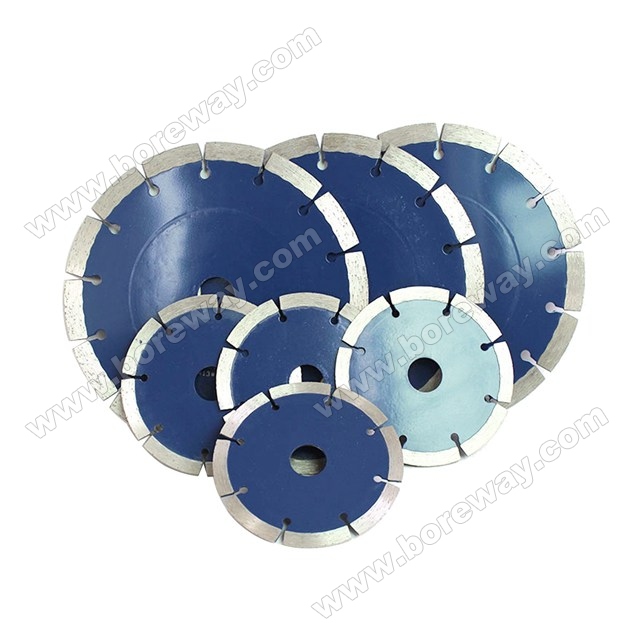

The following specifications of 7 inch diamond dry cutter saw blade:

Code No.	Diameter	Segment Thickness	Segment Height	Bore (mm)
BW-DC-01-01	105mm(4")	1.8	8/10mm	15.88mm(5/8") 20.00mm 22.23mm(7/8") 25.40mm(1")
BW-DC-01-02	115mm(4.5")	1.8	8/10mm
BW-DC-01-03	125mm(5")	2.0	8/10mm
BW-DC-01-04	150mm(6")	2.2	8/10mm
BW-DC-01-05	180mm(7")	2.2	8/10mm
BW-DC-01-06	200mm(8")	2.4	8/10mm
BW-DC-01-07	230mm(9")	2.6	8/10mm

Other size is available as per requst.

Parameter of all diamond cutting discs:

Edge cutting disc	Application	Advantages
Segmented saw blade	Dry cutting blade, It can cut without water. Suitable for cutting various hard materials, such as marble,granite, sandstone,limestone, ceramic,tile concrete,asphalt,refractory,brick,etc.	Sharp, Smooth cutting
Continuous rim blade	Wet cutting blade, It must cutting with water.	Sharp,Long lifespan
Turbo saw blade	Suitable for either dry cutting or wet cutting. Good at chip removal, cool down when cutting.	Fast cutting Accurate cutting Excellent performance
Strengthen turbo saw blade	Good at chip removal, low noise, cool down and bending resistance when cutting.	Bending resistance
Tuck point blade	Removal of mortar joints and preparation of masonry surfaces including concrete block, bricks and stone. The thickness of segments and saw blank are higher than others.	High-efficiency
Concave saw blade	Use for arc-shape cutting.	Smooth cutting
Blade with protection segment	Good for protecting the saw blank during cutting.	Safety

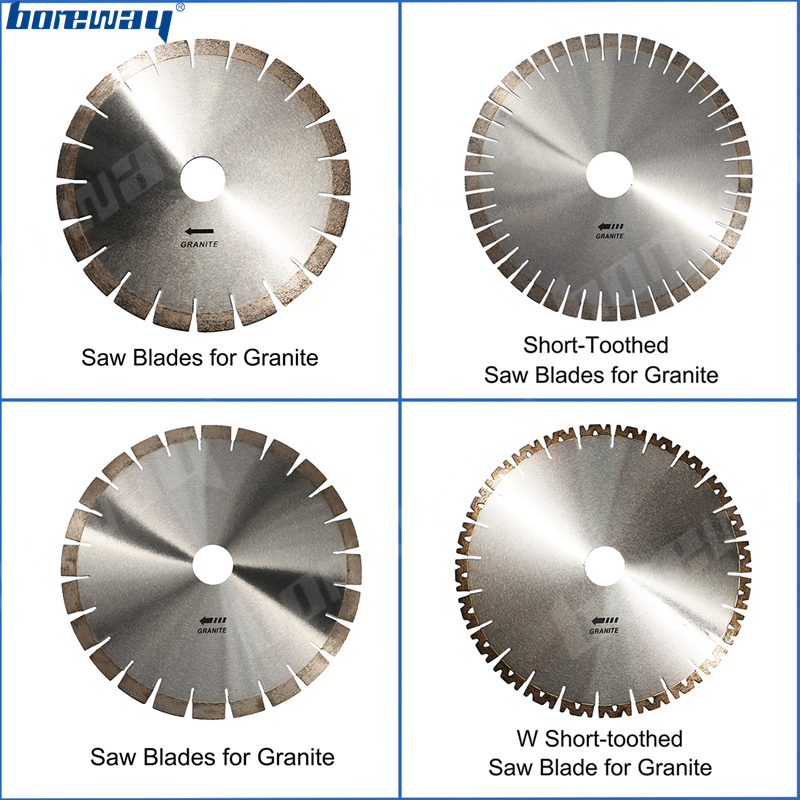

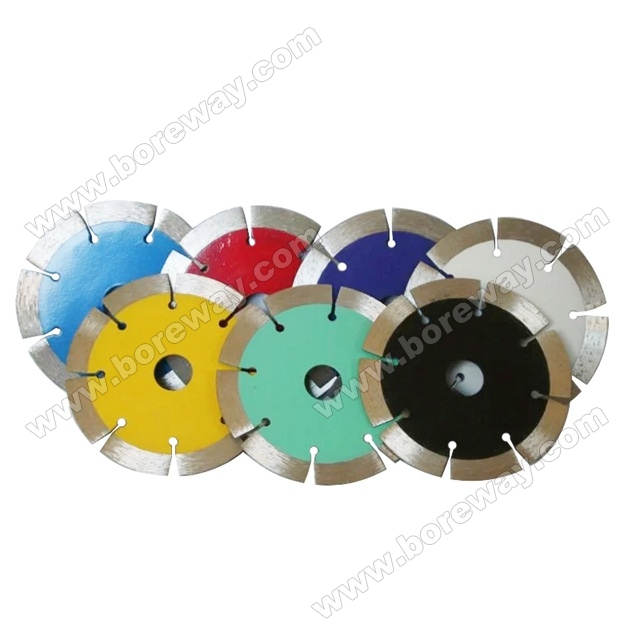

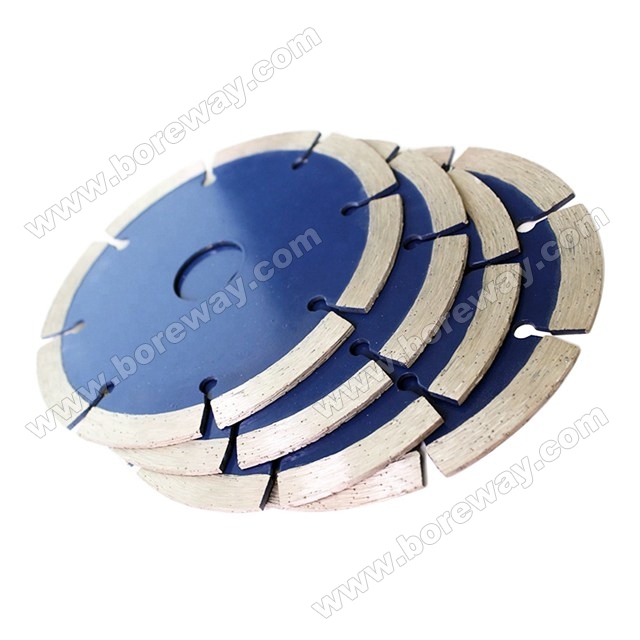

Pictures of other products：
