Boreway 350mm Diamond Cutting Disc For Granite Marble Sandstone Basalt

Add / Delete to Basket

Product parameters

Name:	Boreway 350mm Diamond Cutting Disc For Granite Marble Sandstone Basalt
Model Number:	BW-SBG-01-03
Hole:	50/60mm
Size:	14inch,350mm
Segment No.:	24 or 25Pcs
Welding Method:	Silver Welded
Steel Blank Type:	Normal and silent
Machine:	Table Cutting Machine
Segment height:	10mm,12mm,15mm,20mm
Cutting material:	Granite, Sandstone, Kinds of Hard Stones with quartz

Product Description

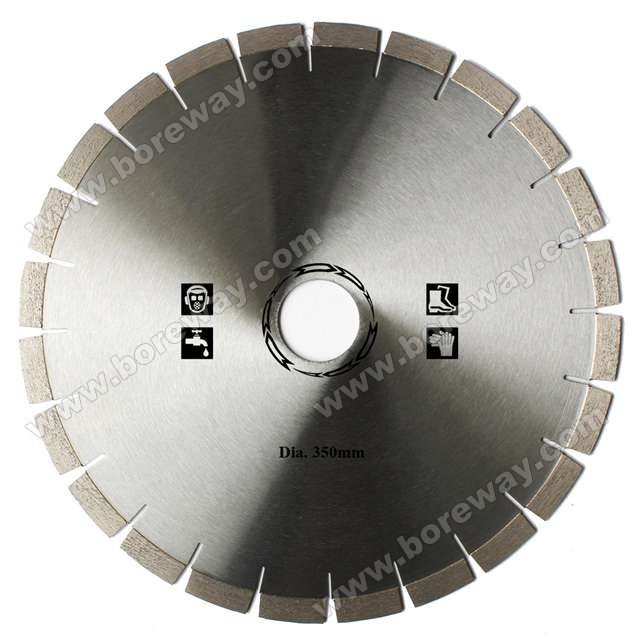

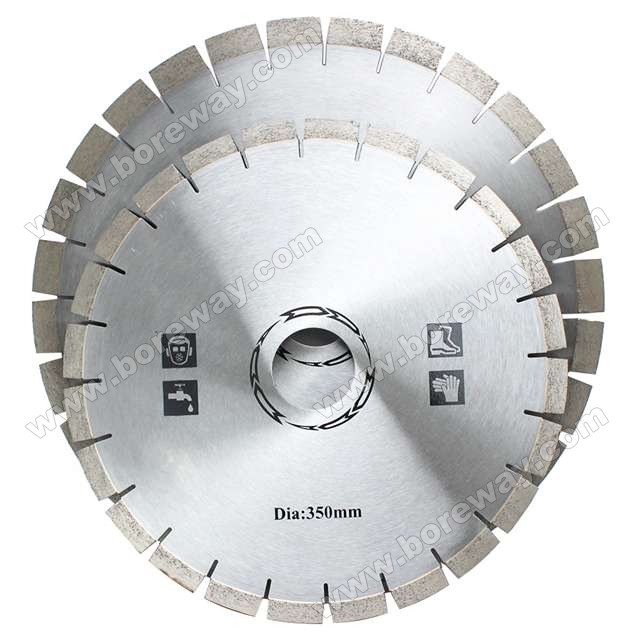

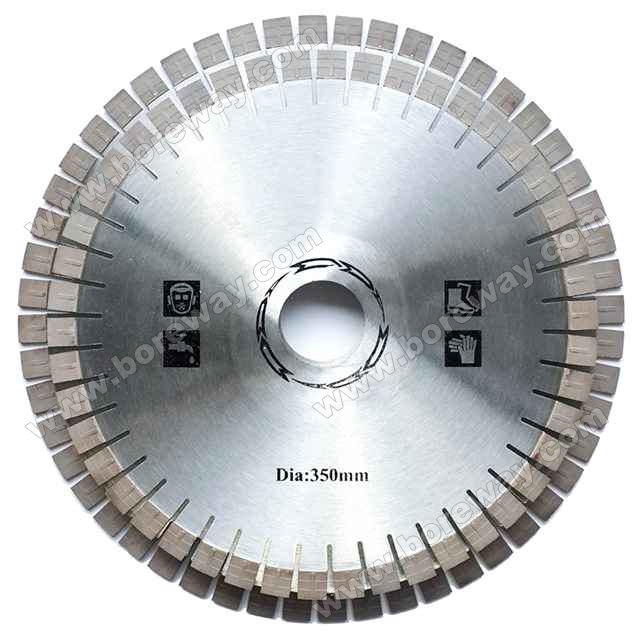

Boreway 350mm Diamond Cutting Disc For Granite Marble Sandstone Basalt

Advantage:

1,Big production scale

2,Strict quality testing system by our professional technician

3,Any shape of segment are available according to different stone hardness

4,Segment with high quality and high density diamond powder. More sharpness

5,Laser welded technology make segment performance perfect, no segment loose while cutting

Applicable Machine:

Table Cutting Machine

Bridge Cutting Machine

Manual Handling Cutting Machine

Application:

Granite, Sandstone, Kinds of Hard Stones with quartz

Specification:

The followings are our normal sizes of our 350mm diamond cutting disc:

Code No.	Diameter (mm/Inch)	Hole (mm)	Segment Height (mm)	Segment No. (pcs/set)	Steel Blank Type	Welding Method
BW-SBG-01-01	250mm(10")	50/60	10/12/15	18	Normal & Silent	Silver Welded
BW-SBG-01-02	300mm(12")	50/60	10/12/15	21
BW-SBG-01-03	350mm(14")	50/60	10/12/15/20	24/25
BW-SBG-01-04	400mm(16")	50/60	10/12/15/20	28
BW-SBG-01-05	450mm(18")	50/60	10/12/15/20	32
BW-SBG-01-06	500mm(20")	50/60	10/12/15/20	36
BW-SBG-01-07	550mm(22")	50/60	10/12/15/20	38
BW-SBG-01-08	600mm(24")	50/60	10/12/15/20	42
BW-SBG-01-09	700mm(28")	50/60	10/12/15/20	50
BW-SBG-01-10	750mm(30")	50/60	10/12/15/20	50
BW-SBG-01-11	800mm(32")	50/60	10/12/15/20	46

Other specifications are available upon request.

Picture display of other products:

Boreway 350mm Diamond Cutting Disc For Granite Marble Sandstone Basalt

How to buy concrete blades from the Manufacturers?

Different size can be supplied according to customers'
requirements.

When place an order of concrete saw blades, please inform the following items:

1) Diameter (Inch or mm)
2) Arbor Size (Inch or mm)
3) Segment Size (Length x Width x Height, )
4) Cutting Object: Green or Cured Concrete, if contain the steel bar?
5) Machine Power/RPM (If possible)

ABOUT FEEDBACK

Please confirm the receipt of the products after you got them. If you

have any question about the products you received, please

contactus in time and we will try our best to solve the problem

and make you satisfied.

Contact us:

Fujian Nan'an Boreway Machinery Co.,Ltd.

Tel,Wechat & WhatsApp : +86 18650679939

E-mail: boreway@boreway.com

Lyon Chang
