Boreway 32mm Segments Brazed Holder Welding Magnet Core Drill Bit

Add / Delete to Basket

Product parameters

Name:	Boreway 32mm Segments Brazed Holder Welding Magnet Core Drill Bit
Model Number:	BW-DS-DB-D32
Place of Origin:	Fujian, China(Mainland)
Brand Name:	BOREWAY
Segment No.:	4pcs
Steel Core Thickness:	2mm
Diameter:	32mm
Segment Thickness:	3.5mm
Segment Size:	15x3.5x9mm
Use:	Masonry Drilling
Application:	Braze for welding segment on core barrels

Product Description

Boreway 32mm Segments Brazed Holder Welding Magnet Core Drill Bit

Descriptions:

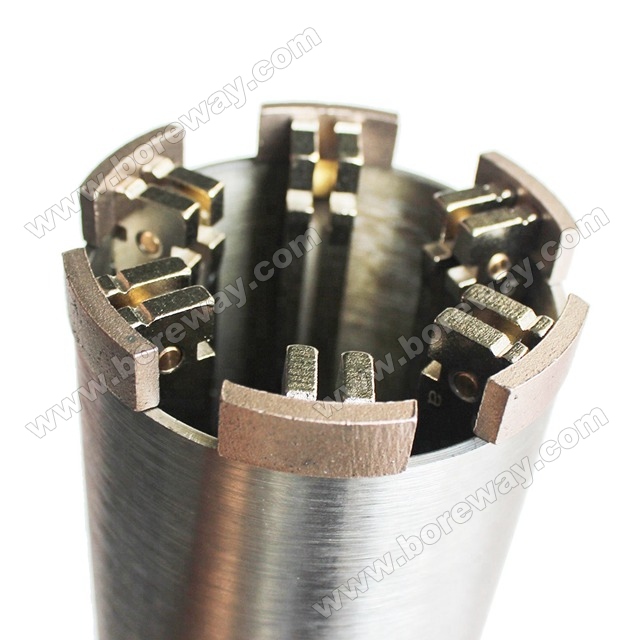

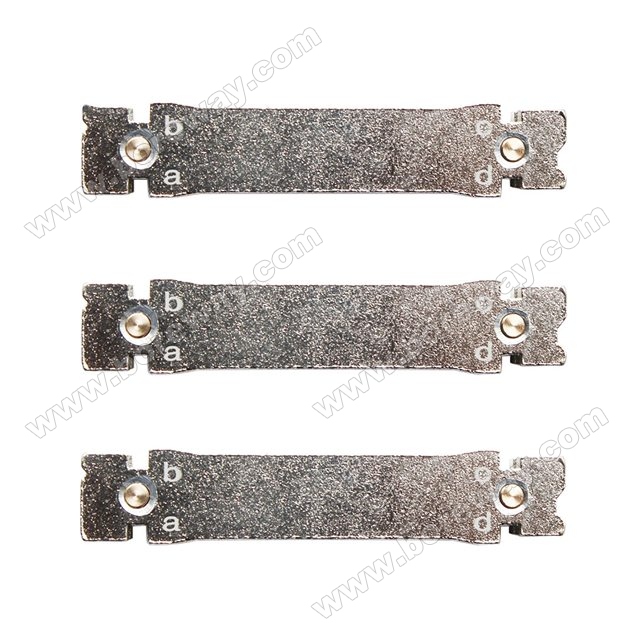

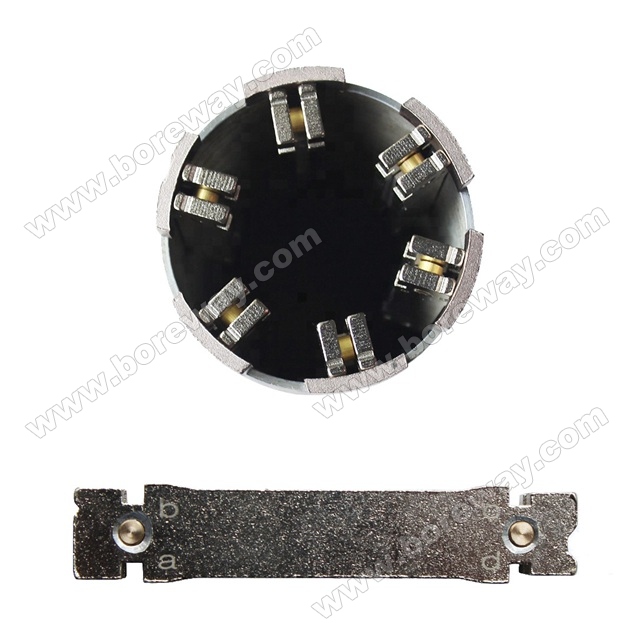

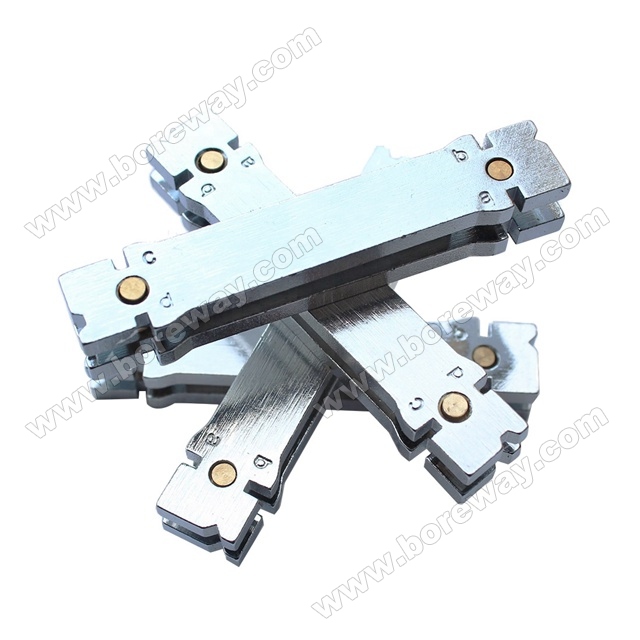

32mm segments brazed holder welding magnet is used for brazing the segments onto the barrels.

Because the segments are usually 4mm thick and a barrel might be 2mm thick, this tool gives you the offset required when brazing your segments onto the barrel.

Boreway Strong Magnet For Resisting High Temperature Core Bit Braze Welding Magnet Holder (3)

Specifications:

Normally when brazing the segment,the rule is:
Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4
Following is the reference for the segment size and steel core width for 32mm segments brazed holder welding magnet different diameter:

Diameter(mm)	Segment No.	Segmen Size(mm)	Segment Thickness	Steel Core Thickness
D25	3	15x3.5x9mm	3.5mm	2.0mm
D32	4	15x3.5x9mm	3.5mm	2.0mm
D38	5	20x3.5x9mm	3.5mm	2.0mm
D44	5	20x3.5x9mm	3.5mm	2.0mm
D52	5	24x3.5x10mm	3.5mm	2.0mm
D58	5	24x3.5x10mm	3.5mm	2.0mm
D63	6	24x3.5x10mm	3.5mm	2.0mm
D76	7	24x3.5x10mm	3.5mm	2.0mm
D89	8	24x3.5x10mm	3.5mm	2.0mm
D102	9	24x4.0x10mm	4.0mm	2.0mm
D108	10	24x4.0x10mm	4.0mm	2.5mm
D114	10	24x4.0x10mm	4.0mm	2.5mm
D127	11	24x4.0x10mm	4.0mm	2.5mm
D140	11	24x4.0x10mm	4.0mm	2.5mm
D152	12	24x4.0x10mm	4.0mm	2.5mm
D167	12	24x4.0x10mm	4.0mm	2.5mm
D180	14	24x4.5x10mm	4.5mm	3.0mm
D200	14	24x4.5x10mm	4.5mm	3.0mm
D230	15	24x4.5x10mm	4.5mm	3.0mm
D250	16	24x4.5x10mm	5.0mm	3.5mm

Specially designed tools are available for any standard apllication. We can

customize tools as per your exact needs.

Feature:

Under same bond conditions, the drilling speed of this type segments is much faster than normal flat segments, and all time the drilling speed is same.

Applications:

Braze for welding segment on core barrels
